FL-net Board Operators manual Page 155

Operators manual
TITLE
Modification of FANUC FL-net Board
OPERATOR’S MANUAL
Insertion of the following new chapter after Chapter 2.3
2.4 Error message
When a error occurs at the local node, the error of its error is displayed at the Error
message screen.
Procedure
(1) Press function key
SYSTEM
, then press soft key [PMC] to switch to the PMC screen.
(2) Press soft keys [PMCDGN], [I/OCHK], and [FL-NET] in this order. Then screen 1-1
appears.
(3) Press soft key [ ERRMSG ] of screen 1-1, and the screen 2-6 shown below appears.

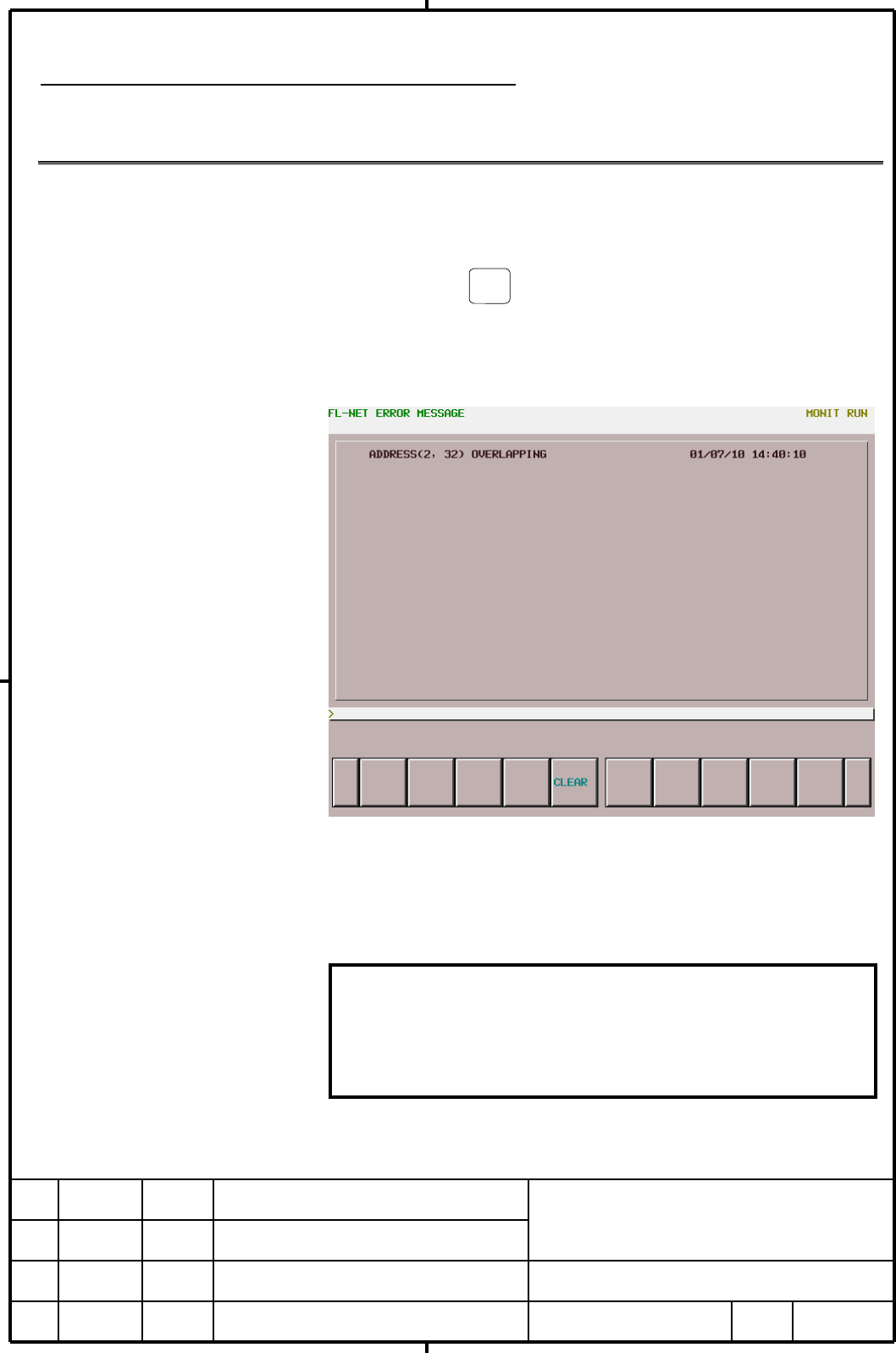

Screen 2-6 FL-net Error Message Screen (for the 10.4” LCD)
An error message and the date/time at which its error occurred is displayed.
The format of date and time is “Year/Month/Date Hour:Minute:Second”.
As for the explanation of error messages, please refer to “ 2.4.1 Error Message “.
NOTE
This error message screen is available when Communication setting
software (654I series) is edition 04 or later and when FL-net control
software (6564 series / 656C series ) is edition 07 / 01 or later.
SHEET
13/17
DESCRIPTIONDESIGN DATE EDIT
01 Mutai First issue
B-63434EN/02-1
FANUC LTD.
02.05.20
DRAW.NO.
