FL-net Board Operators manual Page 77

Operators manual
1.PARAMETER SETTING OPERATION B-63434EN/02
- 70 -
(3) Pressing soft key [PRMTR] displays screen 1-2.
If data is already registered, the data is displayed.
(4) With the MDI keys and soft keys, enter/update data.

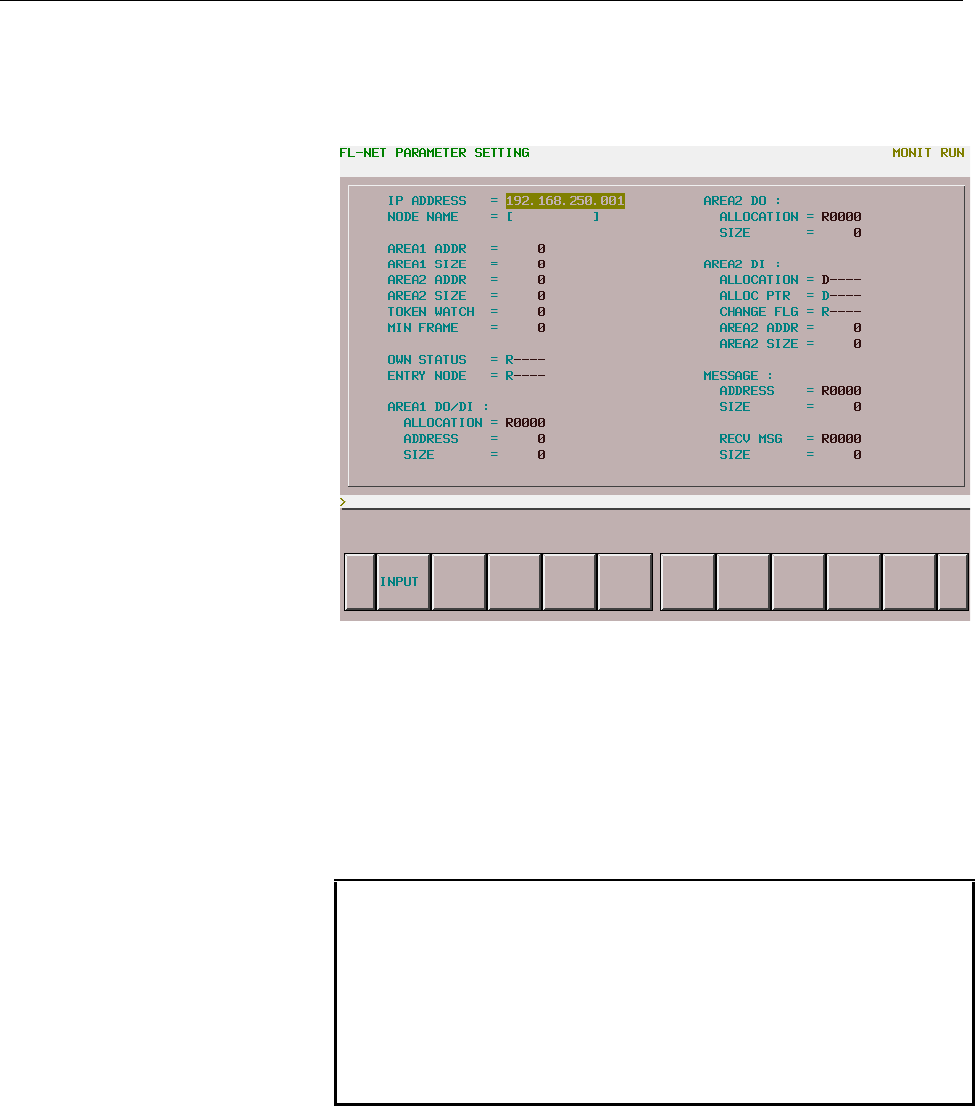

Screen 1-2 FL-net Parameter Setting Screen (for the 10.4" LCD)
(5) Only when a parameter for which "----" is displayed on the
screen above is set, soft key [DISABL] is displayed. When
such a parameter is not to be used, press soft key [DISABL].
Then, "----" is displayed for the parameter to disable its use.
When such a parameter is to be used, enter a desired value as
with other parameters.
CAUTION
When a parameter to be allocated to the PMC area is
not to be used, be sure to "disable" the parameter.
For example, when 0 is set in OWN STATUS, R0000
in the PMC area is assumed to be allocated, and the
FL-net board may use an area starting at R0000. In
such a case, press soft key DISABL so that the
setting becomes "R----."
