Additional Manual
. .

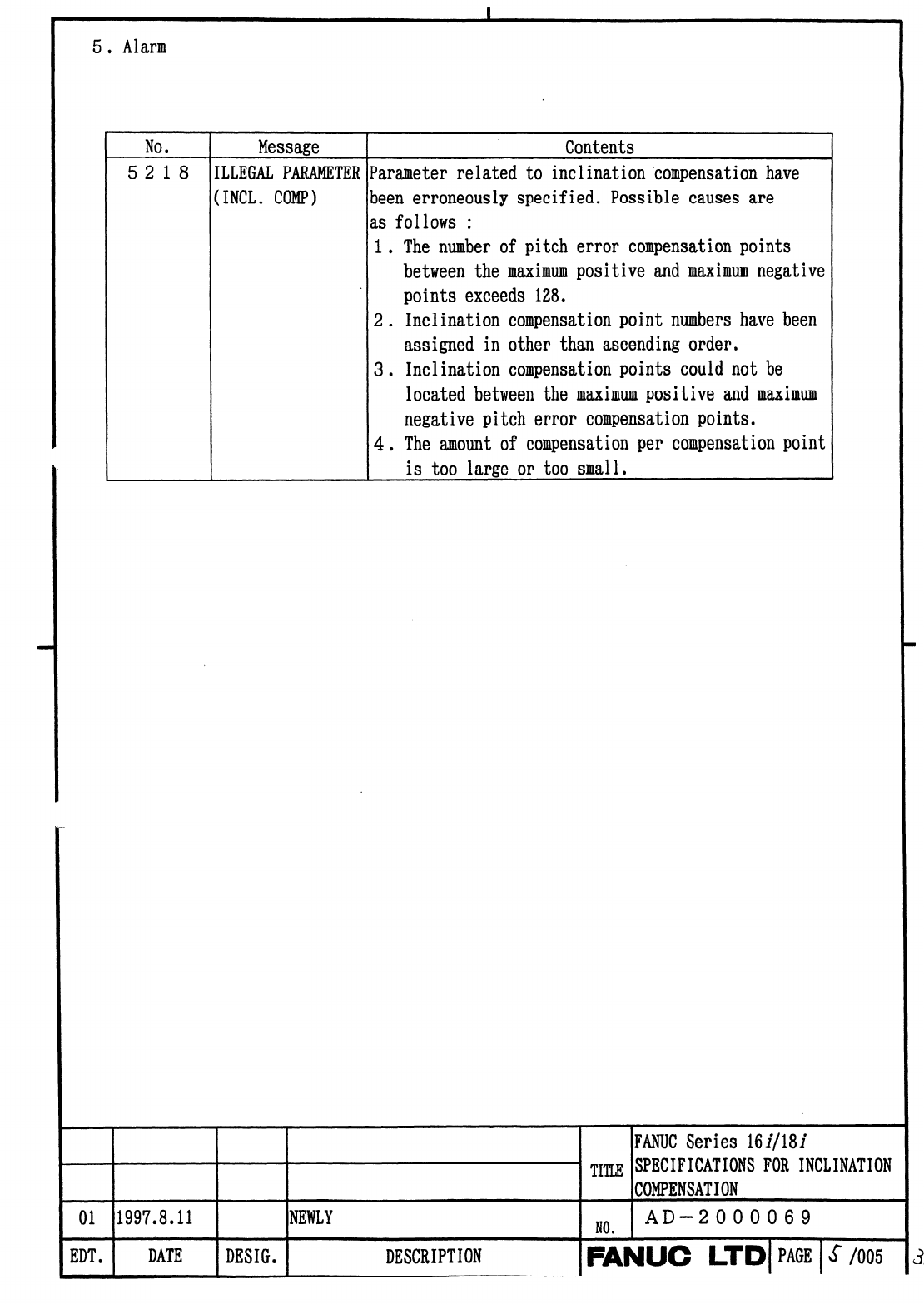

5 l Alarm
No
5 2 ; 8
Message Contents
ILLEGAL PARAMETER Parameter related to inclination ‘compensation have
(INCL. COMP)
been erroneously specified. Possible causes are
as follows :
1. The number of pitch error compensation points
between the maximum positive and maximum negative
points exceeds 128.
2. Inclination compensation point numbers have been
assigned in other than ascending order.
3 . Inclination compensation points could not be
located between the maximum positive and maximum
negative pitch error compensation points,
4. The amount of compensation per compensation point
is too large or too small.
01 1997.8.11 NEWLY
FANUC Series 16i/18i
m ‘j’ITZ_JE: SPECIFICATIONS FOR
INCLINATION
COMPENSATION
NO
AD-2000069
.
EDT a
DATE
DESIG.
DESCRIPTION
-._~ _
1 FANlJC LTDl PAGE 1 is-
1005
