FS 16i/18i Added New Functions (A-62223E) Additional Manual Page 56

Additional Manual

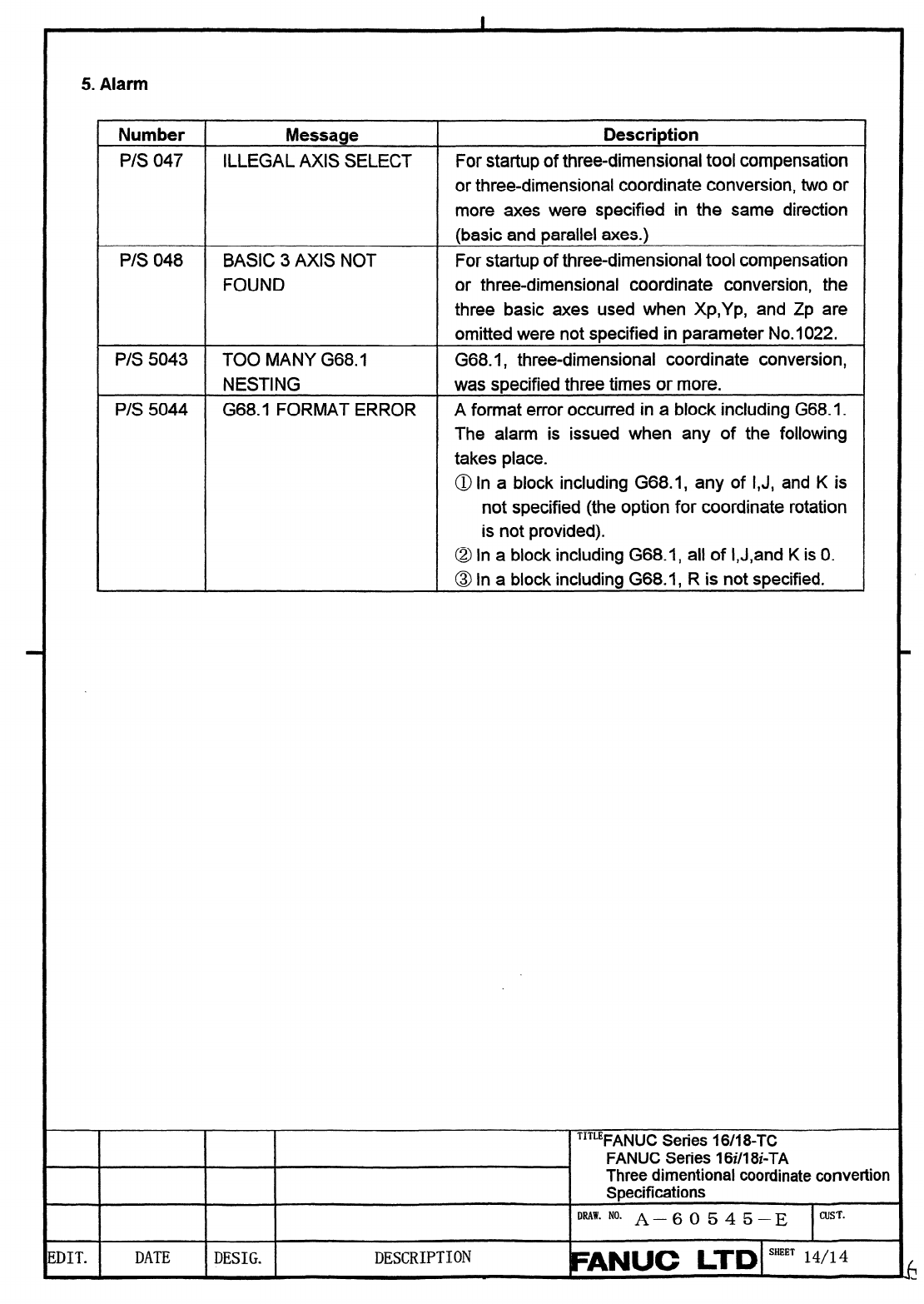

5. Alarm
,
Number
Message
Description
P/S 047
ILLEGAL AXIS SELECT
For startup of three-dimensional tool compensation
or three-dimensional coordinate conversion, two or
more axes were specified in the same direction
(basic and parallel axes.)
P/S 048
BASIC 3 AXIS NOT
For startup of three-dimensional tool compensation
FOUND
or three-dimensional coordinate conversion, the
three basic axes used when Xp,Yp, and Zp are
omitted were not specified in parameter No.1022.
I
P/S 5043
TOO MANY G68.1
G68.1, three-dimensional coordinate conversion,
NESTING
was specified three times or more.
P/S 5044 G68.1 FORMAT ERROR A format error occurred in a block including G68.1.
The alarm is issued when any of the following
takes place.
@ In a block including G68.1, any of I,J, and K is
not specified (the option for coordinate rotation
is not provided).
@ In a block including G68.1, all of I,J,and K is 0.
@ In a block including G68.1, R is not specified.
I
TITLEFANUC Series 16/l 8-TC
1
FANUC Series 16ill8i-TA
Three dimentional coordinate convertion
Specifications
DIW. NO. A - 6 () 5 4 5 - E
cusT.
ZDIT. DATE
DESIG.
DESCRIPTION
,FANUC L"'D SHEET 14/14
