FS 16i/18i Added New Functions (A-62223E) Additional Manual Page 91

Additional Manual
DSOlOO-04

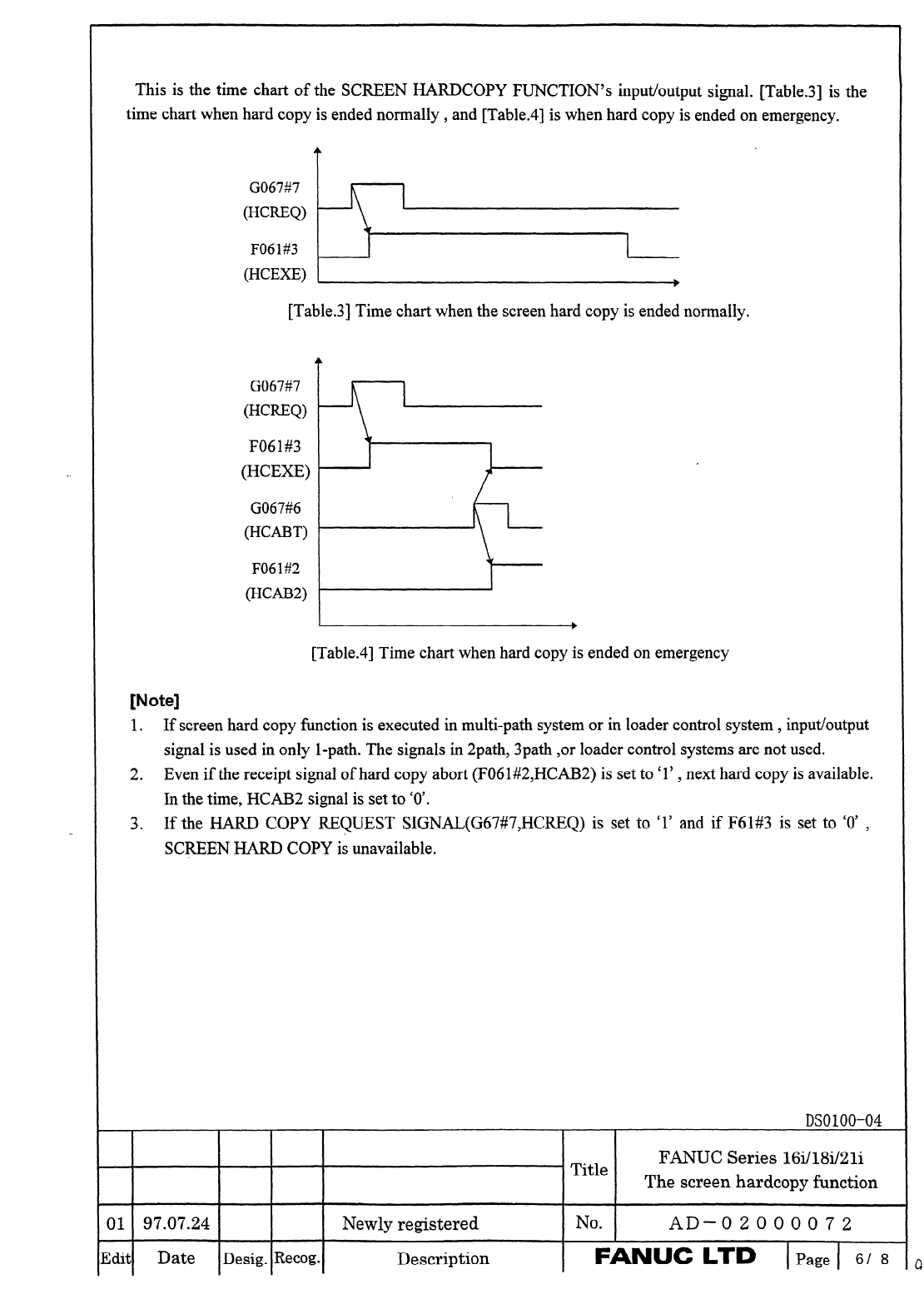

This is the time chart of the SCREEN HARDCOPY FUNCTION’s input/output signal. [Table.31 is the
time chart when hard copy is ended normally , and [Table.41 is when hard copy is ended on emergency.
G067#7
WCmQ) -
.
F061#3
(HCEXE) ‘
+
[Table.31 Time chart when the screen hard copy is ended normally.
t
G067#7
WCEQ) '
FO61#3
(HCEXE)
G067#6
(HCABT) -
F061#2
(HCAB2) ’
[Table.41 T ime chart when hard copy is ended on emergency
[Note]
1 . If screen hard copy function is executed in multi-path system or in loader control system , input/output
signal is used in only l-path. The signals in 2path, 3path ,or loader control systems are not used.
2. Even if the receipt signal of hard copy abort (FO61#2,HCAB2) is set to ’ 1’ , next hard copy is available.
In the time, HUB2 signal is set to ‘0’.
3. If the HARD COPY REQUEST SIGNAL(G67#7,HCREQ) is set to ‘1’ and if F61#3 is set to ‘0’ ,
i
SCREEN HARD COPY is unavailable.
