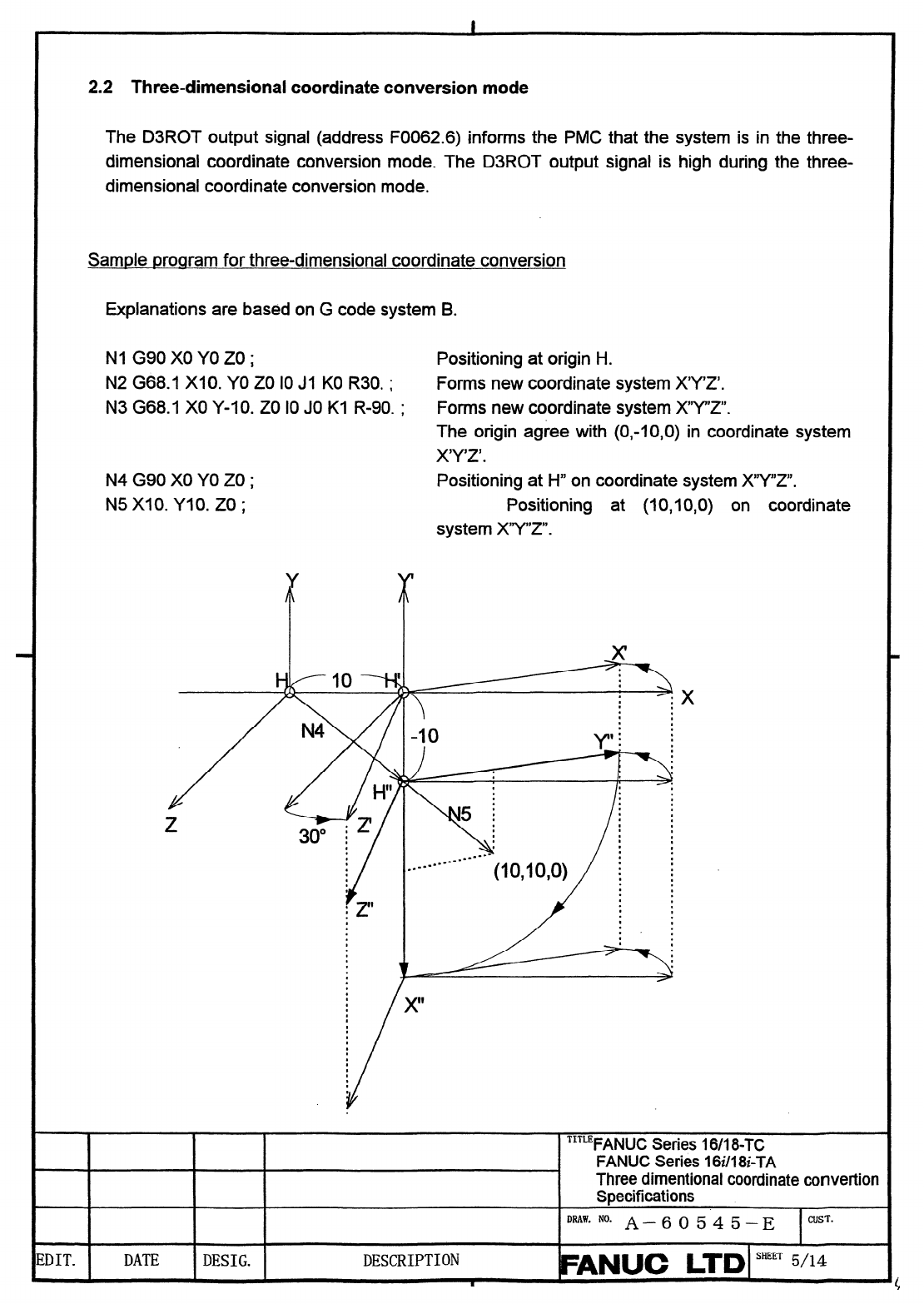

2.2 Three-dimensional coordinate conversion mode
The D3ROT output signal (address FO062.6) informs the PMC that the system is in the three-
dimensional coordinate conversion mode. The D3ROT output signal is high during the three-
dimensional coordinate conversion mode.
Sample program for three-dimensional coordinate conversion
Explanations are based on G code system B.
N’l G90 X0 YO ZO ; Positioning at origin H.
N2 G68.1 X10. YO ZO IO Jl KO R30. ;
Forms new coordinate system X’Y’Z’.
N3 G68.1 X0 Y-IO. ZO IO JO Kl R-90. ;
Forms new coordinate system X”Y”Z”.
The origin agree with (O,-10,O) in coordinate system
X’Y’Z’.
N4 G90 X0 YO ZO ; Positioning at H” on coordinate system X”Y”Z”.
N5 X10. YIO. ZO ;
Positioning at (1 0, 10,O) on coordinate
system X”Y”z”.
