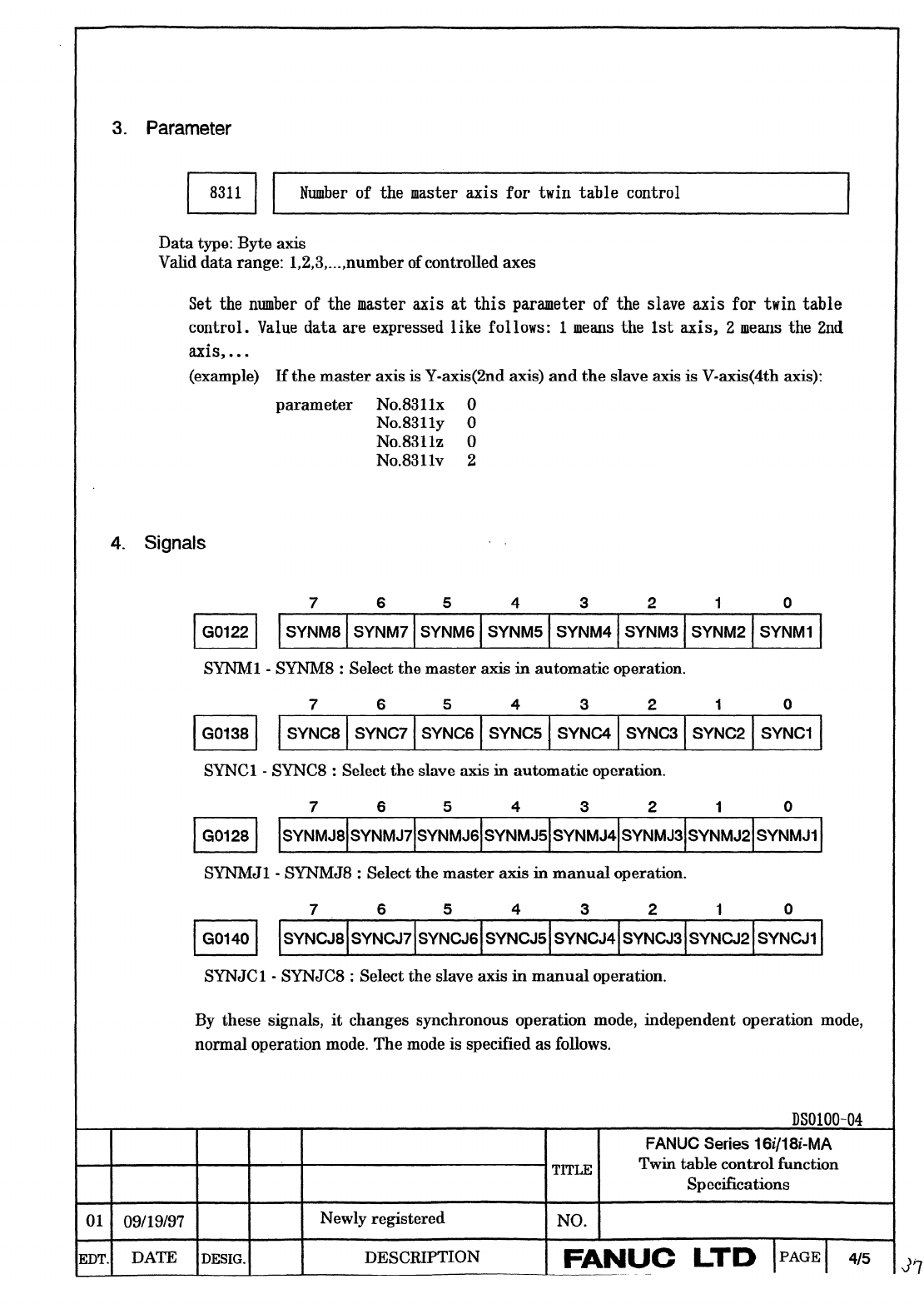

8311 Number of the master axis for twin table control
Data type: Byte axis
Valid data range: 1,2,3 ,-,
number of controlled axes
Set the number of the master axis at this parameter of the slave axis for twin table
control. Value data are expressed like follows: 1 means the 1st axis, 2 means the 2nd
axis,. . .
(example) If the master axis is Y-axis(2nd axis) and the slave axis is Vaxis(4th axis):
parameter No.8311~ 0
No.8311~ 0
No.83112 0
No.8311~ 2
4. Signals
7
6 5
4 3 2 1 0
El
GO122
SYNM8 SYNM7 SYNM6 SYNM5 SYNM4 SYNM3 SYNM2 SYNMl
SYNMl - SYNMS : Select the master axis in automatic operation.
7 6
5
4 3 2 1
0
I
GO138
SYNC8 SYNC7 SYNC6 SYNC5 SYNC4 SYNC3 SYNC2 SYNC?
SYNC1 - SYNC8 : Select the slave axis in automatic operation.
7 6
5 4
3 2 1
0
I I
GO1 28 SYNMJ8 SYNMJ7 SYNMJG SYNMJ5 SYNMJ4 SYNMJ3 SYNMJ2 SYNMJI
SYNMJl - SYNMJS : Select the master axis in manual operation.
7
6 5 4 3 2
1
0
I ’
GO140 SYNCJ8 SYNCJ7 SYNC36 SYNCJS SYNCJ4 SYNCJ3 SYNCJ2 SYNCJi
SYNJCl - SYNJCS : Select the slave axis in manual operation.
By these signals, it changes synchronous operation mode, independent operation mode,
normal operation mode. The mode is specified as follows.
DSOlOO-04
’ TITIX
FANUC Series 16i/l8i-MA
Twin table control function
Specifications
T
01 09/19/97
EDT.
DATE DESIG.
Newly registered
DESCRIPTION
NO
FLLNUC LTD
PAGE
415
