FS 16i/18i Added New Functions (A-62223E) Additional Manual Page 58

Additional Manual

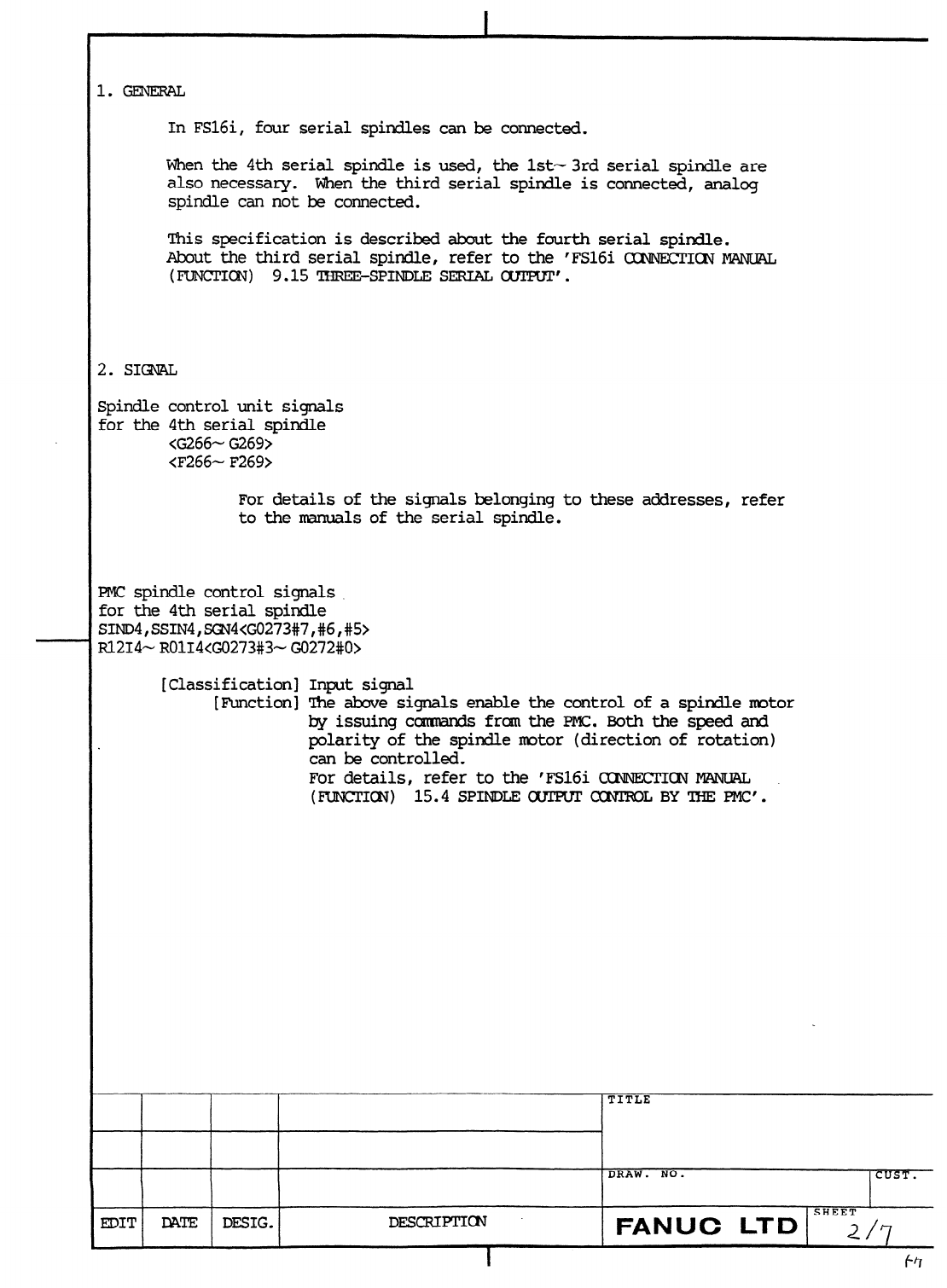

In FSl6i, four serial spindles can be connected.
tjhen the 4th serial spindle is used, the lst-3rd serial spindle are
also necessary.
Fjhen the third serial spindle is connected, analog
spindle can not be connected.
This spec
About the
(FuNcrIcN
i
>
fication is described about the fourth serial spifle.
third serial spindle, refer to the 'FSlGi
ccmECT1mMANcIAL
9.15 THREE-SPINDLE SEEUAL mTKJT'.
spindle control unit signals
for the 4th serial spindle
<G266--269)
<~266-F269>
For details of the signals belonging to these addresses, refer
to the mammls of the serial spindle.
l?K spindle control signals.
for the 4th serial spindle
SIND4,SSIN4,SGN4<GO273#7,#6,#5>
Rl214-RO114<GO273#3-GO272#0>
[Classification]
[Function]
.
Inputsignal
The above signals enable the control of a spindle rotor
byissuingcommnds fromthe PMC. Both the speedand
polarity of the spindle motor (direction of rotation)
can be controlled.
For details, refer to the 'FSl6i
aYmECTIalN~,
(FUNCTICN)
15.4 SPINDLE WI'PUT -L BY THE PMC'.
I I I
ITITLE
DRAW. NO.
CUST.
EDIT
IX!! DESIG.
DESCJZIPTICN .
SHEET
FANUC LTD 2/7
I
6’7
