FS 16i/18i Added New Functions (A-62223E) Additional Manual Page 52

Additional Manual

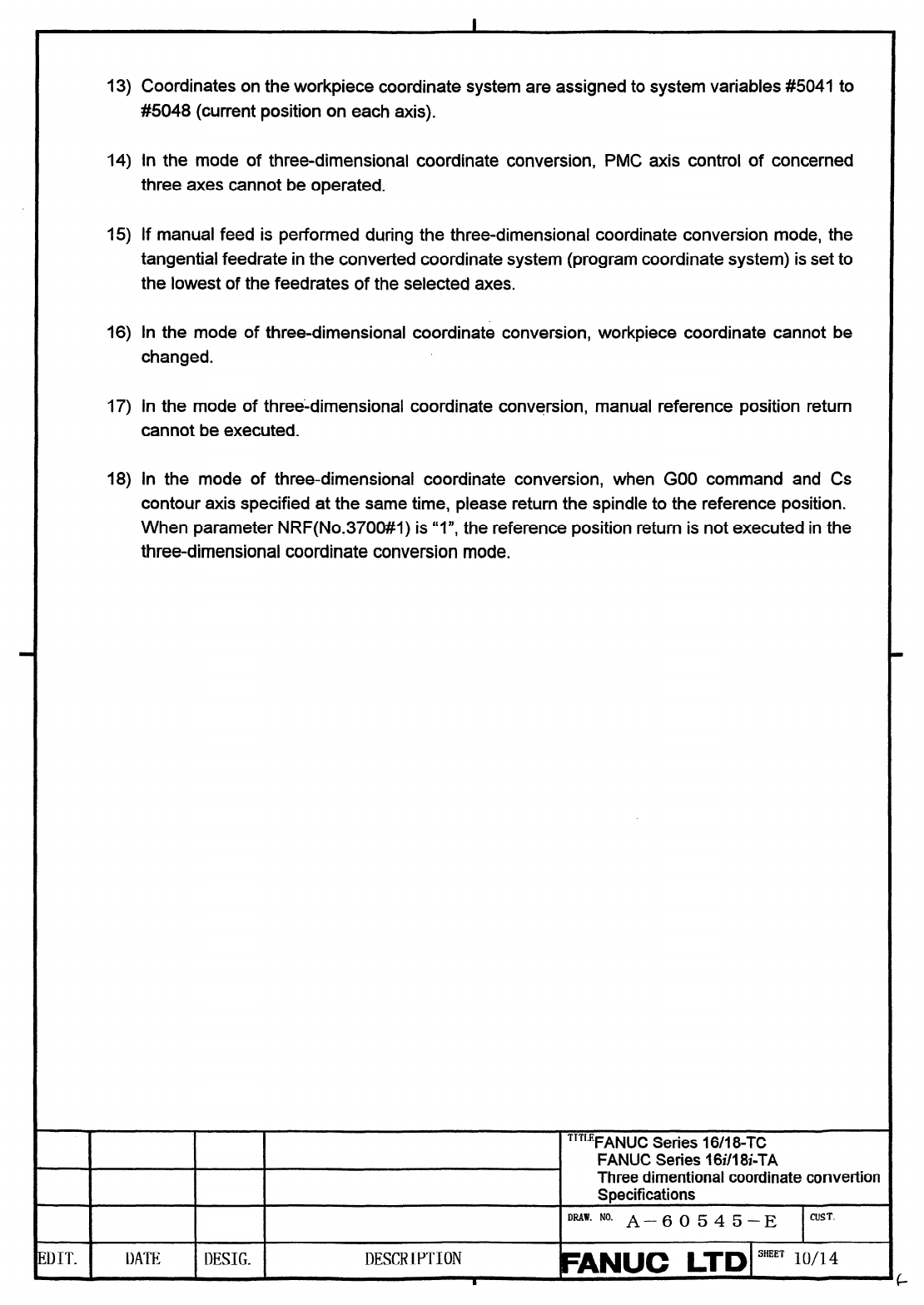

13) Coordinates on the workpiece coordinate system are assigned to system variables #5041 to
SO48 (current position on each axis).
14) In the mode of three-dimensional coordinate conversion, PMC axis control of concerned
three axes cannot be operated.
15) If manual feed is performed during the three-dimensional coordinate conversion mode, the
tangential feedrate in the converted coordinate system (program coordinate system) is set to
the lowest of the feedrates of the selected axes.
16) In the mode of three-dimensional coordinate conversion, workpiece coordinate cannot be
changed.
17) In the mode of three-dimensional coordinate conversion, manual reference position return
cannot be executed.
18) In the mode of three-dimensional coordinate conversion, when GO0 command and Cs
contour axis specified at the same time, please return the spindle to the reference position.
When parameter NRF(No.3700#1) is “I”, the reference position return is not executed in the
three-dimensional coordinate conversion mode.
TITLEFANUC Series ‘I 6/l 8-TC
FANUC Series 16ill8i-TA
Three dimentional coordinate convertion
Specifications
DRAW. NO.
A-60545-E
CUST.
ZDIT. DATE
DESIG.
DESCRIPTION
FI"NUC I'D SHEET lo/14
Previous page
Next page
