FS 16i/18i Added New Functions (A-62223E) Additional Manual Page 89

Additional Manual

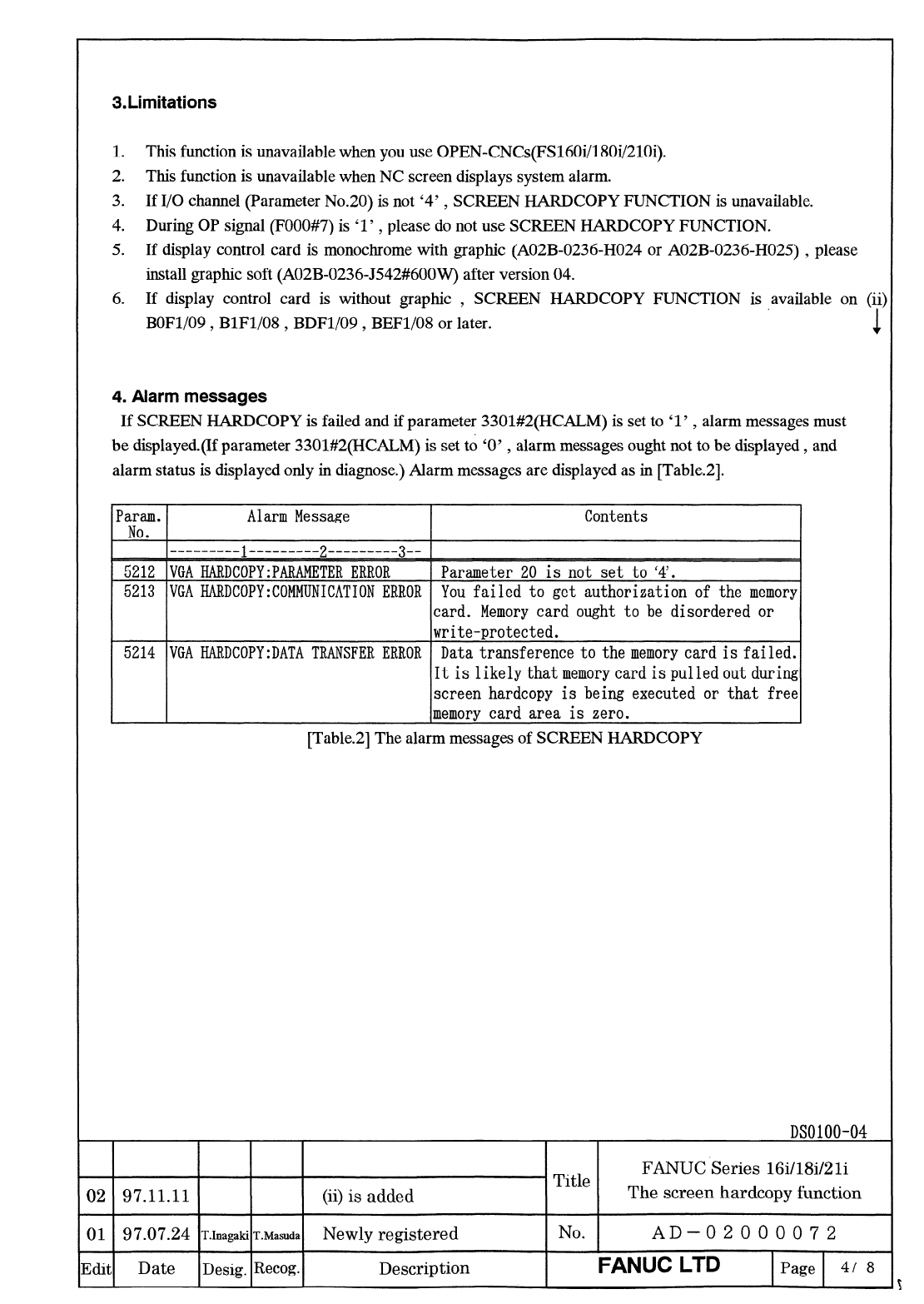

3.Limitations
1. This function is unavailable when you use OPEN-CNCs(FS160i/l8Oi/2lOi).
2. This function is unavailable when NC screen displays system alarm.
3.
If I/O channel (Parameter No.20) is not ‘4’ , SCREEN HARDCOPY FUNCTION is unavailable.
4. During OP signal (FOOO#7) is ‘1’ , please do not use SCREEN HARDCOPY FUNCTION.
5. If display control card is monochrome with graphic (A02B-0236-HO24 or A02B-0236H025) , please
install graphic soft (A02B-0236~5542#6OOW) after version 04.
6. If display control card is without graphic ,
SCREEN HARDCOPY FUNCTION is available on (ii)
BOF1/09 , BlFl/OS , BDF1/09 , BEF1/08 or later.
1
4. Alarm messages
If SCREEN HARDCOPY is failed and if parameter 3301#2(HCALM) is set to ‘1’ , alarm messages must
be displayed.(If parameter 3301#2(HCALM) is set to ‘0’ , alarm messages ought not to be displayed , and
alarm status is displayed only in diagnose.) Alarm messages are displayed as in [Table.2].
Param. Alarm Message Contents
No
.
---------
1
-------a- ---_----- --
2 3
5212 VGA HARDCOPY :PARAMETER ERROR Parameter 20 is not set to 0.
5213 VGA HARDCOPY:COMMUNICATION ERROR You failed to get authorization of the memory
card. Memory card ought to be disordered or
write-protected.
5214 VGA HARDCOPY:DATA TRANSFER ERROR Data transference to the memory card is failed.
It is likelythatmemorycardispulledoutduring
screen hardcopy is being executed or that free
memory card area is zero.
[Table.21 The alarm messages of SCREEN HARDCOPY
DSOlOO-04
02 97.11.11
(ii) is added
01 97.07% T.Inagaki T.Masuda Newly registered
Edit Date
Desig. Reeog.
Description
A Title
FANUC Series 16i/lW2 li
The screen hardcopy function
No .
AD-02000072
FANUC LTD
Page
4/ 8
