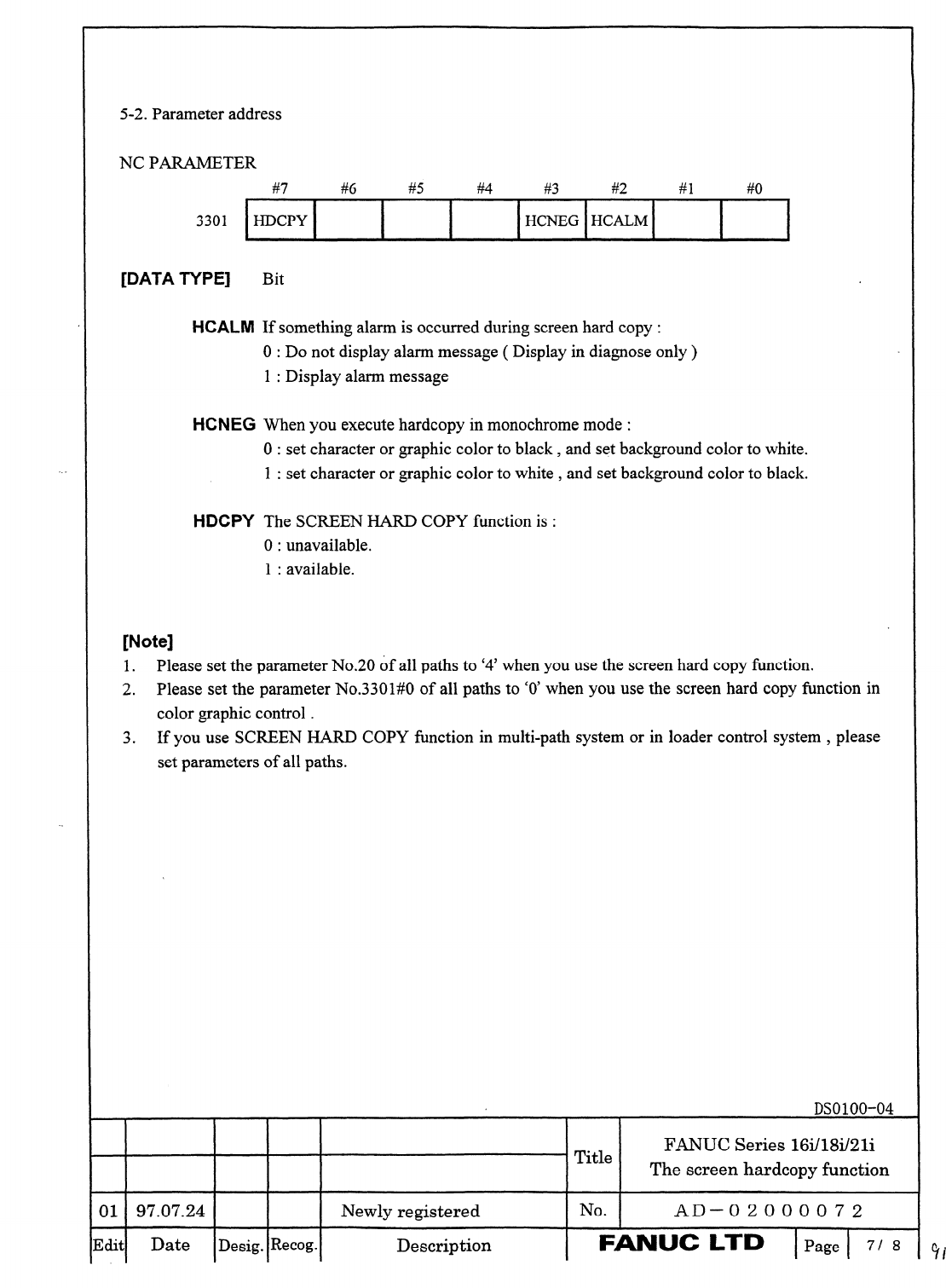

5-2. Parameter address
NC PARAMETER
#7 #6
#5 #4 #3
#2
#1 #O
1
3301 HDCPY
HCNEG HCALM
\
[DATA TYPE] Bit
HCALM If something alarm is occurred during screen hard copy :
0 : Do not display alarm message ( Display in diagnose only )
1 : Display alarm message
HCNEG When you execute hardcopy in monochrome mode :
0 : set character or graphic color to black, and set background color to white.
1 : set character or graphic color to white , and set background color to black.
HDCPY The SCREEN HARD COPY function is :
0 : unavailable.
1 : available.
[Note]
1. Please set the parameter No.20 of all paths to ‘4’ when you use the screen hard copy function.
2.
Please set the parameter No.3301#0 of all paths to ‘0’ when you use the screen hard copy function in
color graphic control .
3.
If you use SCREEN IIARD COPY function in multi-path system or in loader control system , please
set parameters of all paths.
DSOlOO-04
Title
FANUC Series 16i/lSi/2li
The screen hardcopy function
01 97.07.24
Newly registered
No AD-02000072
Edit Date Desig. Recog. Description
&WuC LTD
Page
7/ 8
