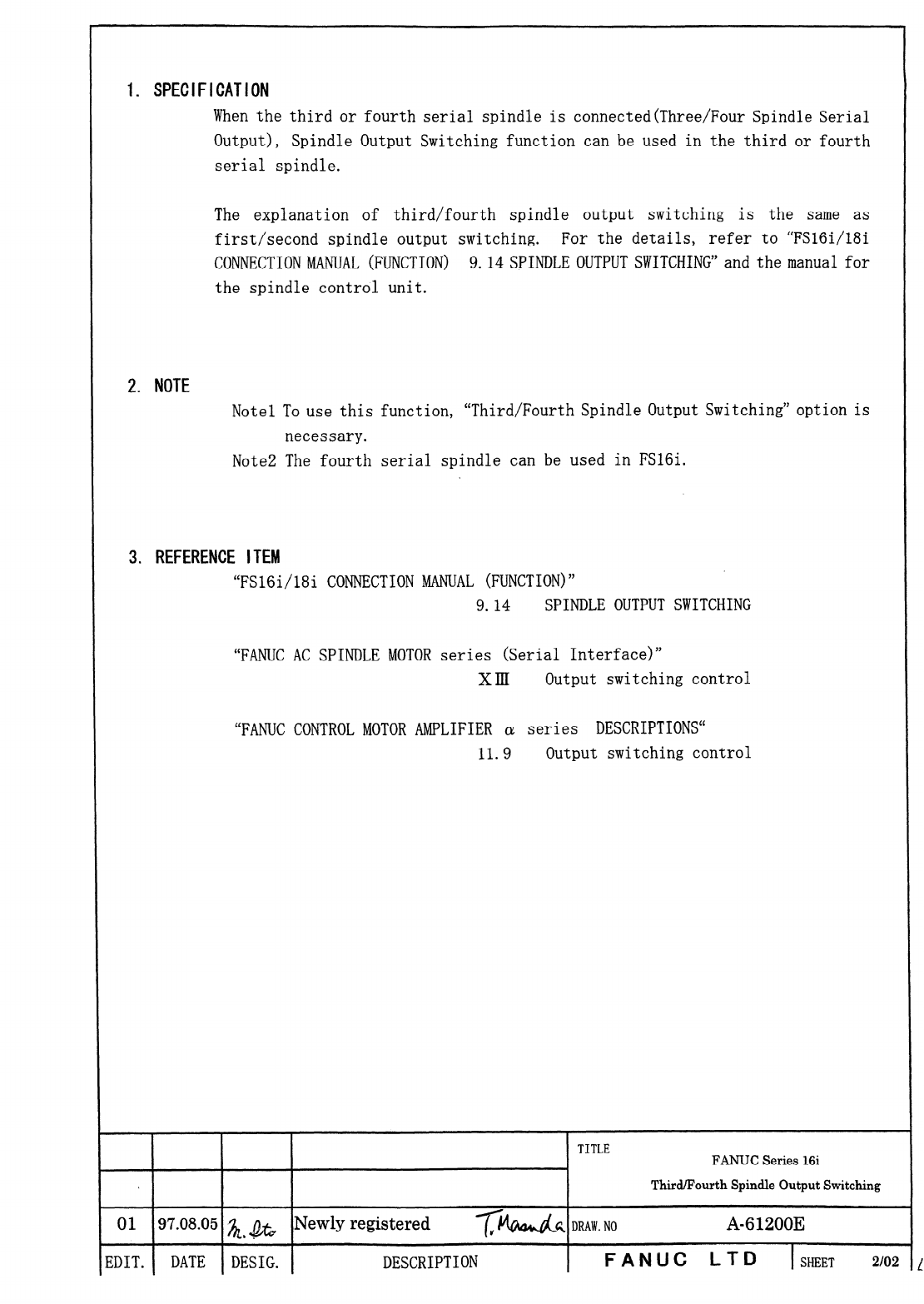

FS 16i/18i Added New Functions (A-62223E) Additional Manual Page 70

Additional Manual
1. SPECIFICATION
When the third or fourth serial spindle is connected(Three/Four Spindle Serial
Output), Spindle Output Switching function can be used in the third or fourth
serial spindle.
The explanation of third/fourth spindle output switching is the same as
first/second spindle output switching.
For the details, refer to “FS16i/18i
CONNECTION MANUAL (FUNCTION) 9.14 SPINDLE OUTPUT SWITCHING” and the manual for
the spindle control unit.
2. NOTE
Note1 To use this function,
“Third/Fourth Spindle Output Switching” option is
necessary.
Note2 The fourth serial spindle can be used in FS16i.
3. REFERENCE ITEM
“FS16i/18i CONNECTION MANUAL (FUNCTION)”
9. 14
SPINDLE OUTPUT SWITCHING
“FANUC AC SPINDLE MOTOR series (Serial Interface)”
XIII
Output switching control
“FANUC CONTROL MOTOR AMPLIFIER a! series DESCRIPTIONS“
11.9
Output switching control
I
I
01 97.08.05 ;3~ b Newly registered
l .
rw DRAW, NO A-61200E
EDIT. DATE DESIG.
DESCRIPTION
FANUC LTD
SHEET
2102
