FS 16i/18i Added New Functions (A-62223E) Additional Manual Page 90

Additional Manual

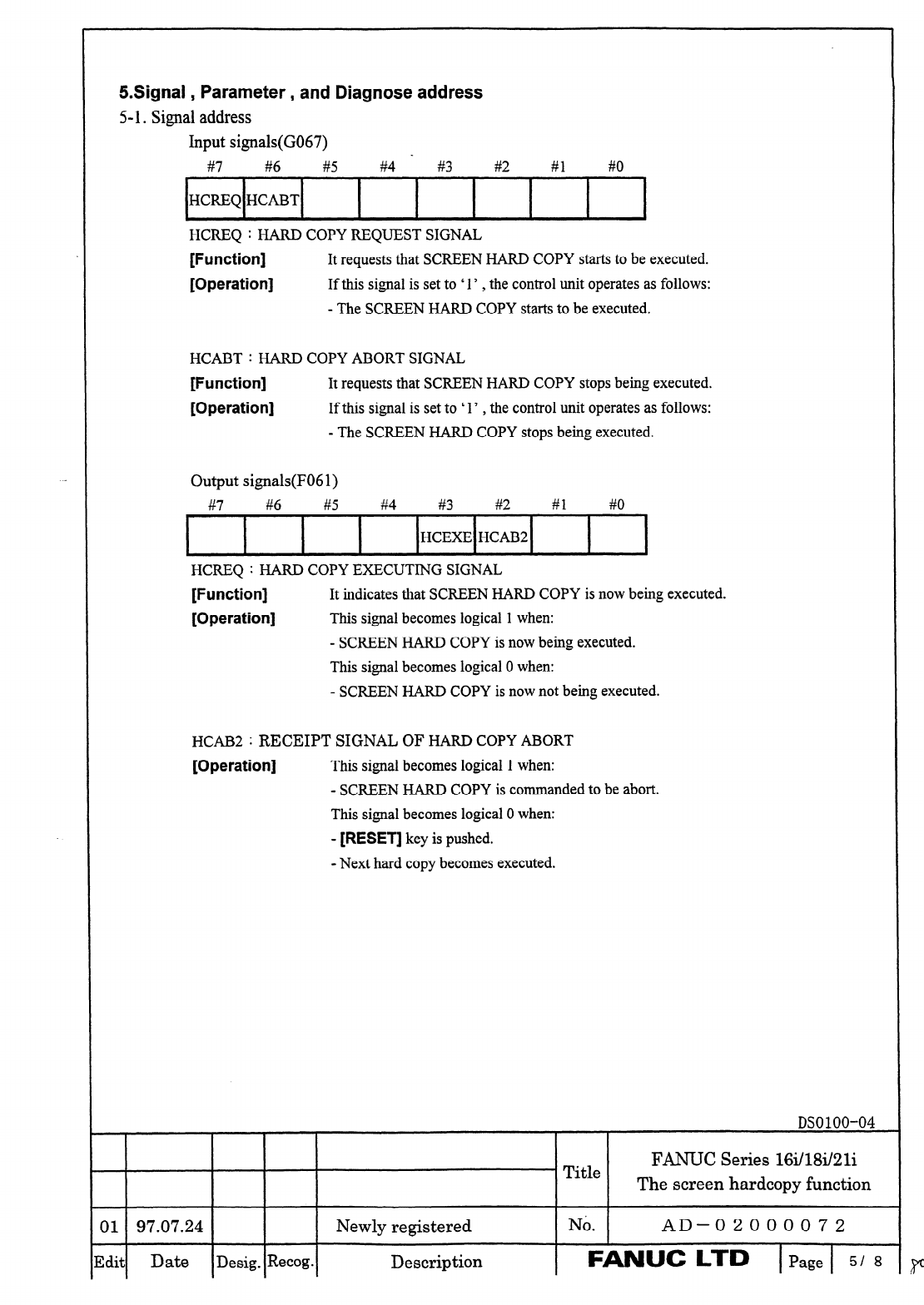

S.Signal j Parameter, and Diagnose address
5-1. Signal address
Input signals(G067)
#7 #6 #5 #4 #3 #2 #I #o
HCREQ HCABT
HCREQ : HARD COPY REQUEST SIGNAL
[Function]
It requests that SCREEN HARD COPY starts to be executed.
[Operation]
If this signal is set to ‘ 1’
, the control unit operates as follows:
- The SCREEN HARD COPY starts to be executed.
HCABT : HARD COPY ABORT SIGNAL
[Function]
It requests that SCREEN HARD COPY stops being executed.
[Operation]
If this signal is set to ‘ 1’
, the control unit operates as follows:
- The SCREEN HARD COPY stops being executed.
Output signals(F06 1)
#7 #6 #5 #4 #3 #2 #1 #0
w
_(
HCEXE HCAB2
HCREQ : HARD COPY EXECUTING SIGNAL
[Function]
It indicates that SCREEN HARD COPY is now being executed.
[Operation]
This signal becomes logical 1 when:
- SCREEN HARD COPY is now being executed.
This signal becomes logical 0 when:
- SCREEN HARD COPY is now not being executed.
HUB2 : RECEIPT SIGNAL OF HARD COPY ABORT
[Operation]
This signal becomes logical 1 when:
- SCREEN HARD COPY is commanded to be abort.
This signal becomes logical 0 when:
- [RESET] key is pushed.
- Next hard copy becomes executed.
DSOlOO-04
Title
FANUC Series 16i/lW2li
The screen hardcopy function
01 97.07.24
Newly registered
No
AD-02000072
Edit Date Desig. Recog. Description
kN”C LTD
Page
51 8
