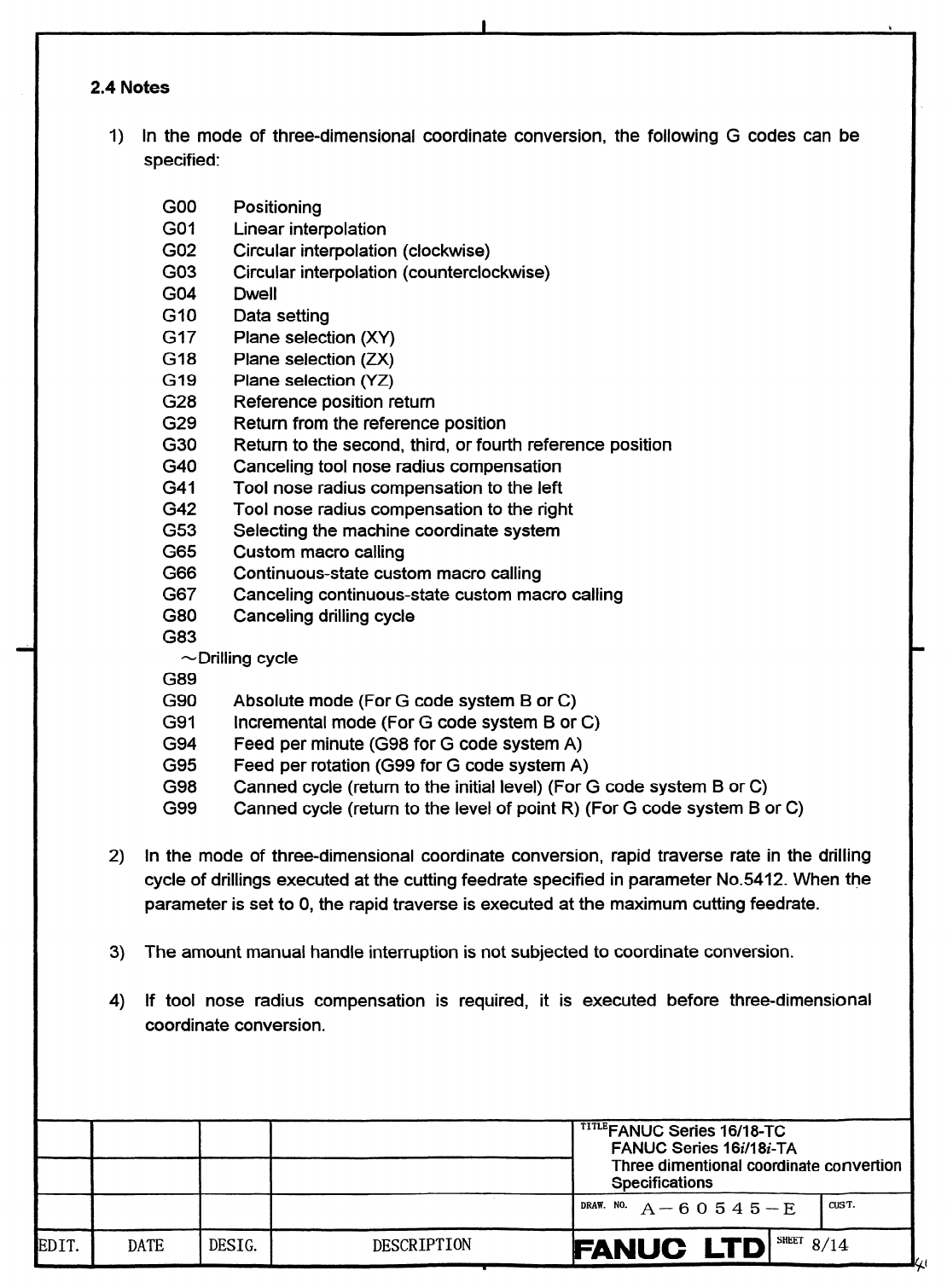

2.4 Notes
1) In the mode of three-dimensional coordinate conversion, the following G codes can be
specified:
GO0 Positioning
GO1 Linear interpolation
GO2
Circular interpolation (clockwise)
GO3
Circular interpolation (counterclockwise)
GO4
Dwell
GIO
Data setting
Gl7
Plane selection (XY)
G18
Plane selection (ZX)
Gl9
Plane selection (YZ)
G28 Reference position return
G29
Return from the reference position
G30
Return to the second, third, or fourth reference position
G40
Canceling tool nose radius compensation
G41
Tool nose radius compensation to the left
G42
Tool nose radius compensation to the right
G53
Selecting the machine coordinate system
G65
Custom macro calling
G66
Continuous-state custom macro calling
G67
Canceling continuous-state custom macro calling
G80
Canceling drilling cycle
G83
-Drilling cycle
G89
G90
Absolute mode (For G code system B or C)
G91
Incremental mode (For G code system B or C)
G94
Feed per minute (G98 for G code system A)
G95
Feed per rotation (G99 for G code system A)
G98
Canned cycle (return to the initial level) (For G code system B or C)
G99
Canned cycle (return to the level of point R) (For G code system B or C)
2) In the mode of three-dimensional coordinate conversion, rapid traverse rate in the drilling
cycle of drillings executed at the cutting feedrate specified in parameter No.5412. When the
parameter is set to 0, the rapid traverse is executed at the maximum cutting feedrate.
3) The amount manual handle interruption is not subjected to coordinate conversion.
4) If tool nose radius compensation is required, it is executed before three-dimensional
coordinate conversion.
TrTLEFANUC Series 16/l 8-TC
FANUC Series 16ill8i-TA
1
Three dimentional coordinate convertion
Specifications
DRAW.NQ A__6()545-_E
CUST.
2DIT. DATE
DESIG.
DESCRIPTION
FANUC L’D SHEET 8/M
