0i/0i Mate - Model C Descriptions Page 109

Descriptions

Page of 416

/ 416

B–64112EN/01

8. COORDINATE VALUE AND

DIMENSION

NC FUNCTION

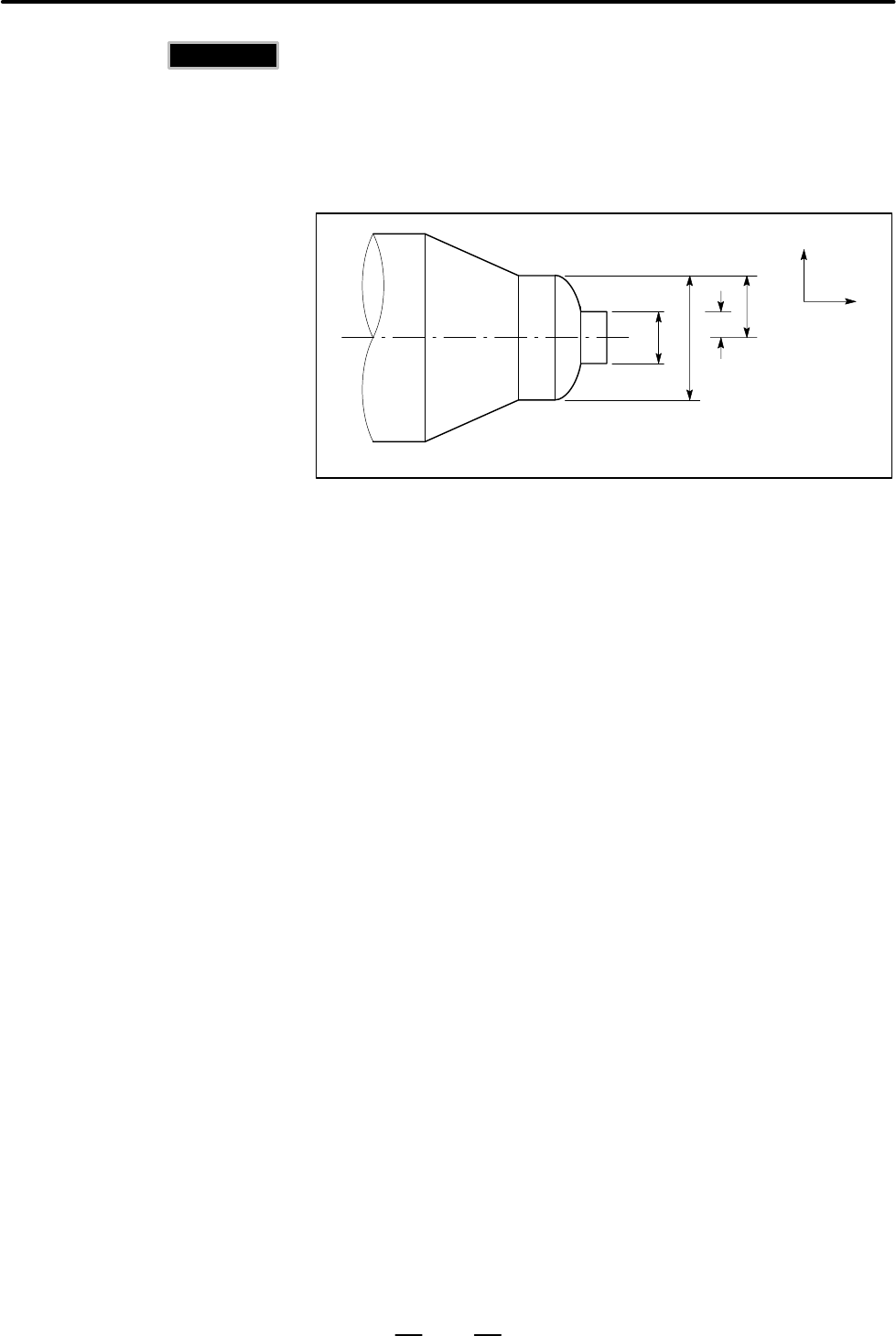

Since the work cross section is usually circular in latches, its dimensions

can be specified in two ways when performing a thing:

When the diameter is specified, it is called diameter programming, and

when the radius is specified, it is called radius programming.

The diameter programming or radius programming can be selected by

parameter for each axis.

X axis

Z axis

, D

Diameter programming

, R

Radius programming

A linear axis refers to an axis moving linearly, and for it values are

specified in mm or inches.

A rotation axis refers to a rotating axis, and for it values are specified in

degrees.

For rotation axes, note the following:

D Inch-metric switching is not performed.

D The machine coordinate system is always normalized to the range

from 0deg to 360deg.

The rotation axis roll-over function rounds the absolute coordinate value

and relative coordinate value of a rotation axis to a coordinate value

within one rotation. This prevents coordinate values to overflow.

In an incremental command, the specified value is regarded as the amount

of travel.

In an absolute command, the specified value is rounded to within one

rotation. The resulting coordinate value is used as the end point. A

parameter is used to specify whether to determine the move direction by

the sign of the specified value or by the move distance (the shortest move

distance to the end point is selected).

8.5

DIAMETER AND

RADIUS

PROGRAMMING (T

series)

T series

8.6

LINEAR AXIS AND

ROTATION AXIS

8.7

ROTARY AXIS

ROLL-OVER

FUNCTION
