0i/0i Mate - Model C Descriptions Page 377

Descriptions

Page of 416

/ 416

B–64112EN/01

B. FUNCTIONS AND TAPE FORMAT LIST

APPENDIX

351

Some functions cannot be added as options depending on the model.

In the tables below,

:presents a combination of arbitrary axis

addresses using X and Z.

x = 1st basic axis (X usually)

z = 2nd basic axis (Z usually)

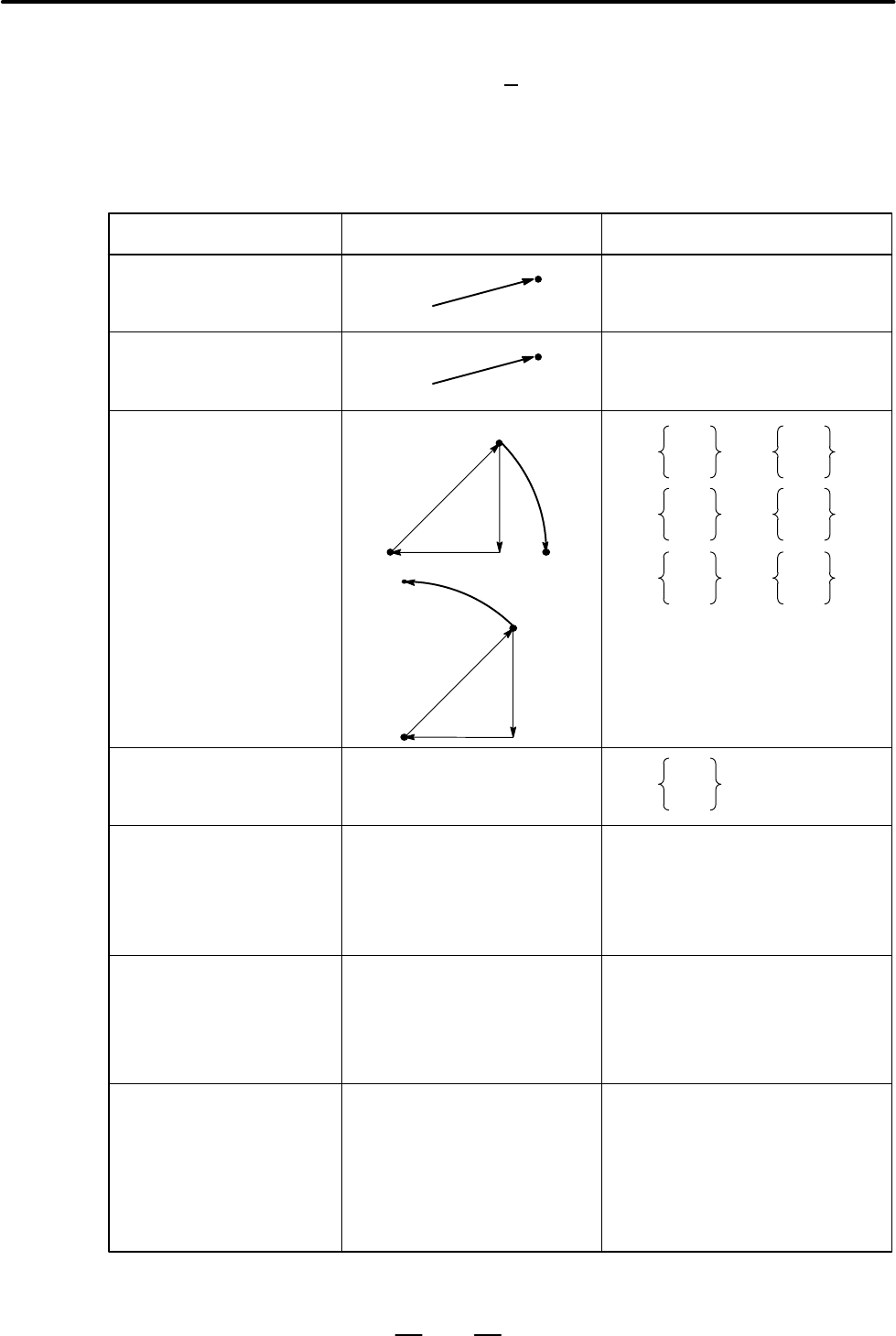

Functions Illustration Tape format

G00 _ ;

G01 _ F_;

(x, z)

G03(x, z)

G02

G03

X_ Y_

I_ J_

F_ ;

G04

;

Start point

Positioning (G00)

Linear interpolation (G01)

Circular interpolation

(G02, G03)

Dwell (G04)

Change of offset value by

program(G10)

G02

Start

point

Start point

Tool geometry offset value

G10 P_ X(U)_ Y(V)_ Z(W)_ R(C)_

Q_ ;

P=1000+Geometry offset number

Tool wear offset value

G10 P_ X(U)_ Y(V)_ Z(W)_ R(C)_

Q_ ;

P=Wear offset number

(1/5)

G17

G02

G03

X_ Z_

I_ K_

F_ ;

G18

G02

G03

Y_ Z_

J_ K_

F_ ;

G19

Cylindrical interpolation

(G07.1)

(G107)

G07.1 IP_R_;

Cylindrical interpolation mode

G07.1 IP0 ;

Cylindrical interpolation mode

cancel

R: Radius of cylinder

Polar coordinate interpolation

(G12.1, G13.1)

(G112, G113)

G12.1 ;

Polar coordinate interpolation

mode

G13.1 ;

Polar coordinate interpolation

mode cancel
