13. FUNCTIONS TO SIMPLIFY

PROGRAMMING

B–64112EN/01

NC FUNCTION

136

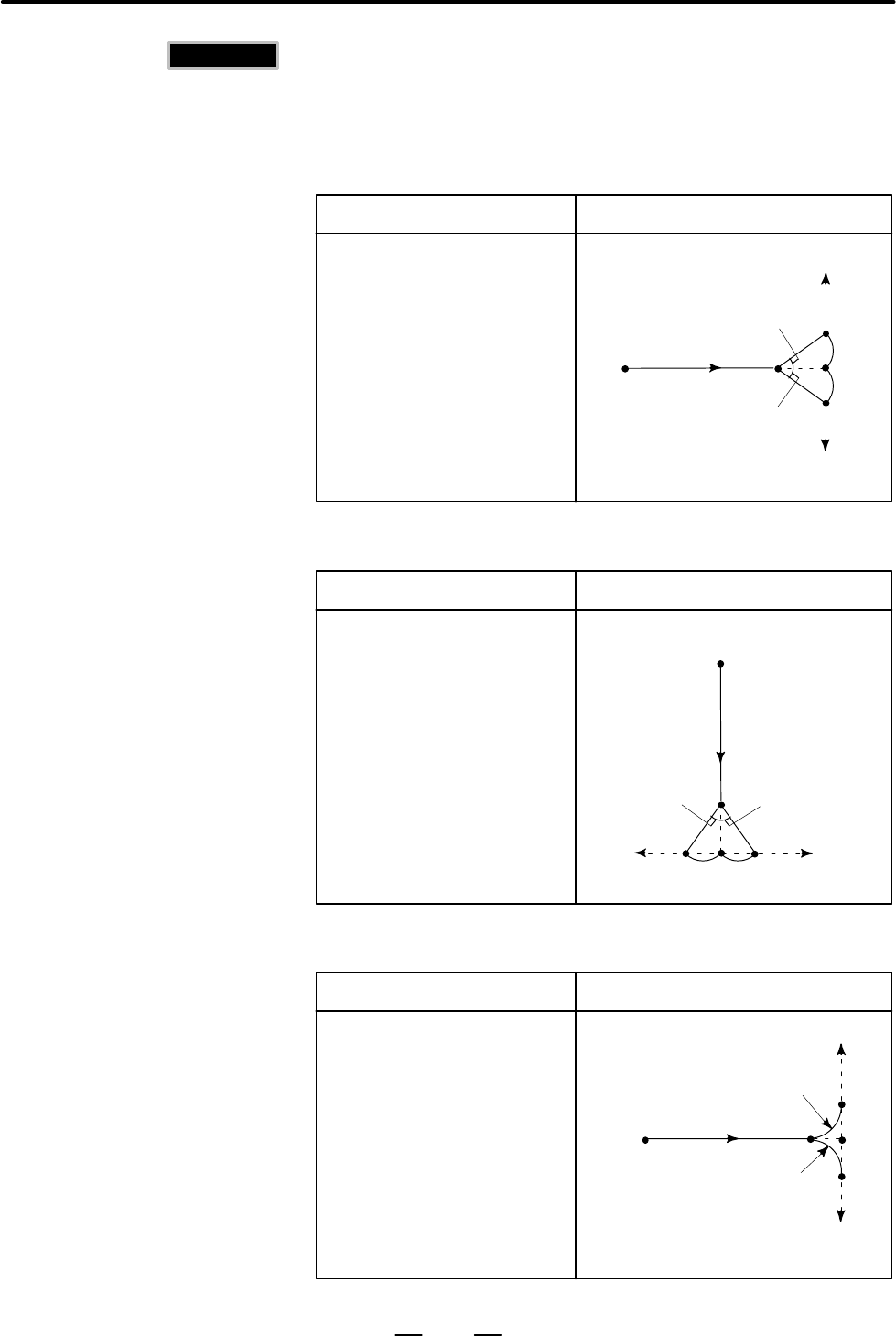

A chamfer or corner are can be inserted between two blocks which

intersect at a right angle as follows. An amount of chamfering or corner

are specifies by address I, K, or R.

45°

–X

–i

Start point

Command

G01 Z(W) I(C) ±i ;

Specifies movement to point b

with an absolute or incremental

command in the figure on the

right.

Tool movement

45°

Moves as a→b→c

Command

G01 X(U) K(C) ±k ;

Specifies movement to point b

with an absolute or incremental

command in the figure on the

right.

Tool movement

Start point

45° 45°

–z +z

–k k

Moves as a→b→c

Command

G01 Z(W) R ±r ;

Specifies movement to point b

with an absolute or incremental

command in the figure on the

right.

Tool movement

Start point

–x

–r

Moves as a→b→c

13.7

CHAMFERING AND

CORNER R (T series)

T series

D Chamfering

Z → X

D Chamfering

X → Z

D Corner R

Z → X
