13. FUNCTIONS TO SIMPLIFY

PROGRAMMING

B–64112EN/01

NC FUNCTION

130

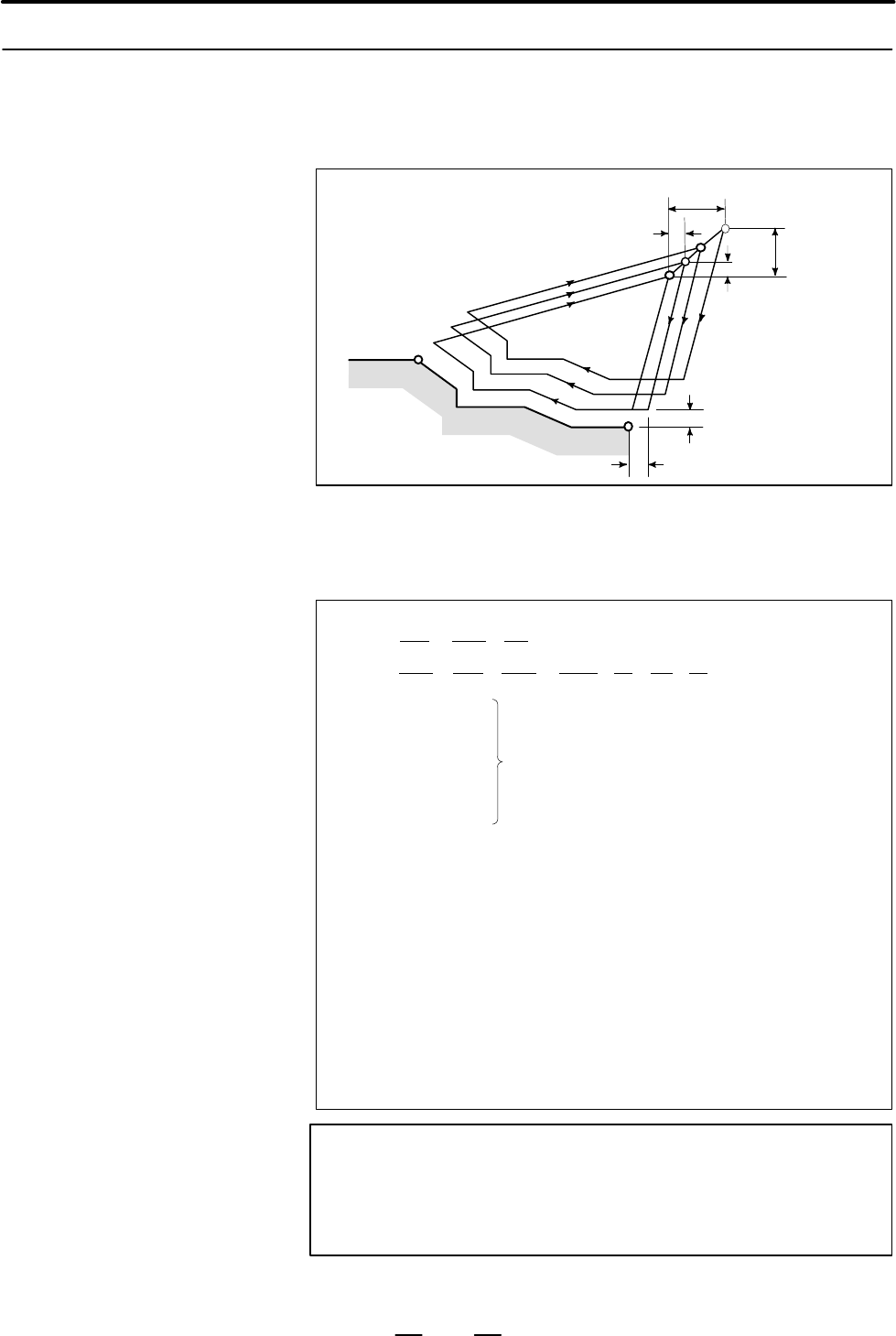

This function permits cutting a fixed cutting pattern repeatedly with the

position being displaced bit by bit. By this cutting cycle, it is possible to

efficiently cut the work whose rough shape has already been made by

rough machining, forging, or casting, etc.

∆w

A’

∆u/2

(R)

∆k+∆w

∆w

∆u/2

R : Rapid traverse

F : Cutting feed

Pattern to be specified by the program

Point A→ Point A’→ Point B

G73 U(∆i) W(∆k) R(d) ;

G73 P(ns)

Q(nf) U(∆u) W(∆w) F(f) S(s) T(t) ;

N(ns) . . . . .

. . . . . . . . . . .

F_. . . . . . .

S_. . . . . . .

T_. . . . . . .

N(nf) ;. . . . . .

The move commands for the target figure from A

to A’ then to B are specified by blocks between

sequence numbers ns and nf.

∆i : Distance and direction of the clearance along X axis

(radius programming)

∆k : Distance and direction of the clearance along Z axis

d : Number of divisions which is equal to the number of times

that rough cutting is performed

ns : Sequence number of the first block of target figure blocks

nf : Sequence number of the end block of target figure blocks

∆u : Distance and direction of the finishing allowance along X

axis (diameter or radius programming)

∆w : Distance and direction of the finishing allowance along Z

axis

f, s, t : F, S, and T codes

CAUTION

F, S, and T specified by any block between ns and nf are

ignored. Those specified by the block of G73 or before are

effective.

This function is available for only memory mode.

13.5.3

Pattern Repeating

(G73)

Format
