30. SAFETY FUNCTIONS

NC FUNCTION

283

An inhibition area can be specified inside or outside an area set by

parameter or by program. Command distance from the machine

coordinates zero point for limit positions. This function is valid after

manual reference point return right after the power on. When specifying

the limits with program, limits or axes X, Y, Z can be set.

The inhibition area can be changed according to the workpiece. The

parameter decides whether the inhibition area is outside or inside the

specified area.

D Parameter setting can be made to generate an alarm before the

inhibition area is entered.

(X, Y, Z)

(I, J, K)

(X, Y, Z)

(I, J, K)

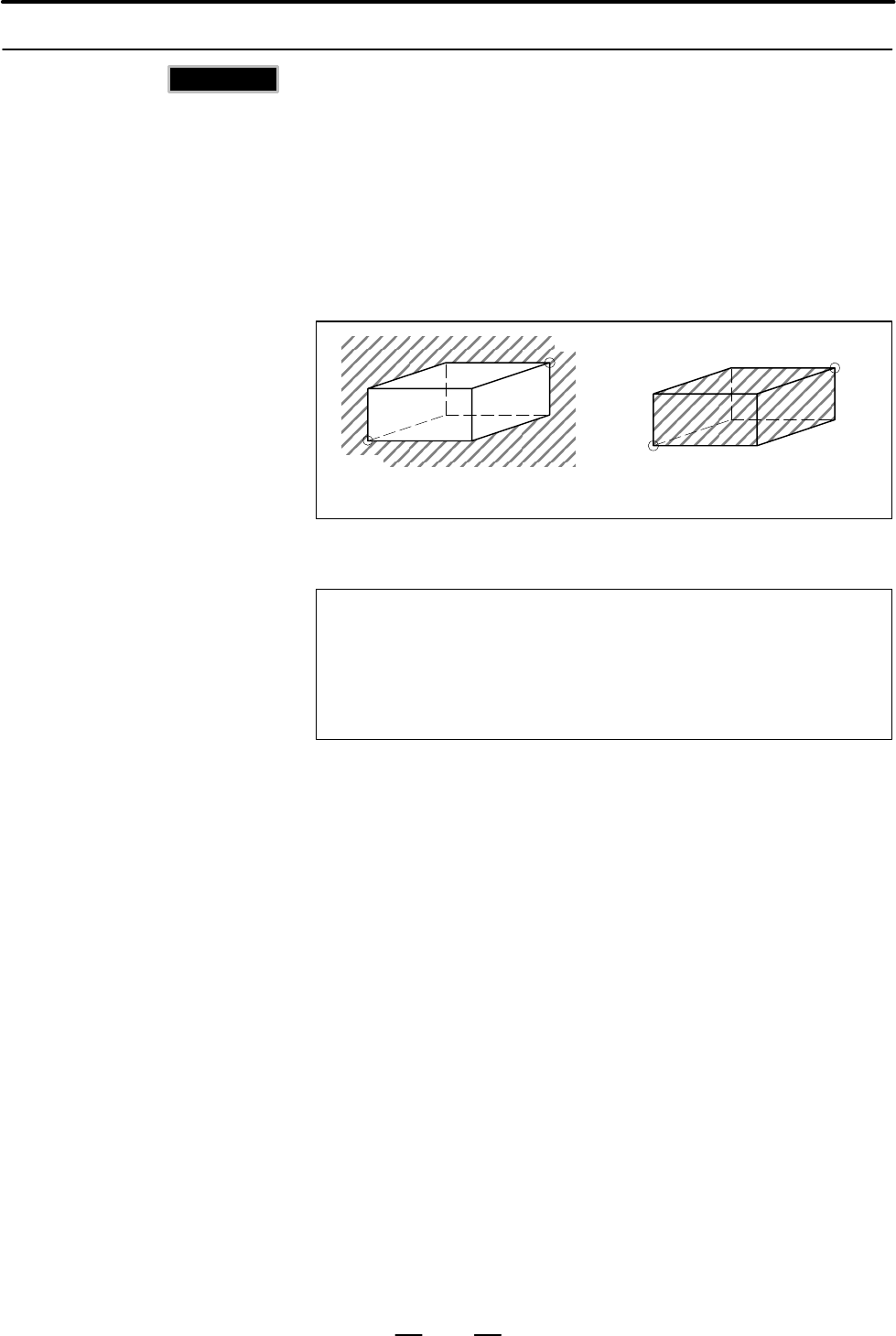

Inhibition area outside

Inhibition area inside

G22 X_ Y_ Z_ I_ J_ K_ ;

On/off of stored stroke check 2 is commanded by program as follows:

G22 : Stored stroke check function on

G23 : Stored stroke check function off

30.2.3

Stored Stroke Check 2

(G22, G23) (M series)

M series

Format
