B–64112EN/01

14. TOOL COMPENSATION FUNCTION

NC FUNCTION

159

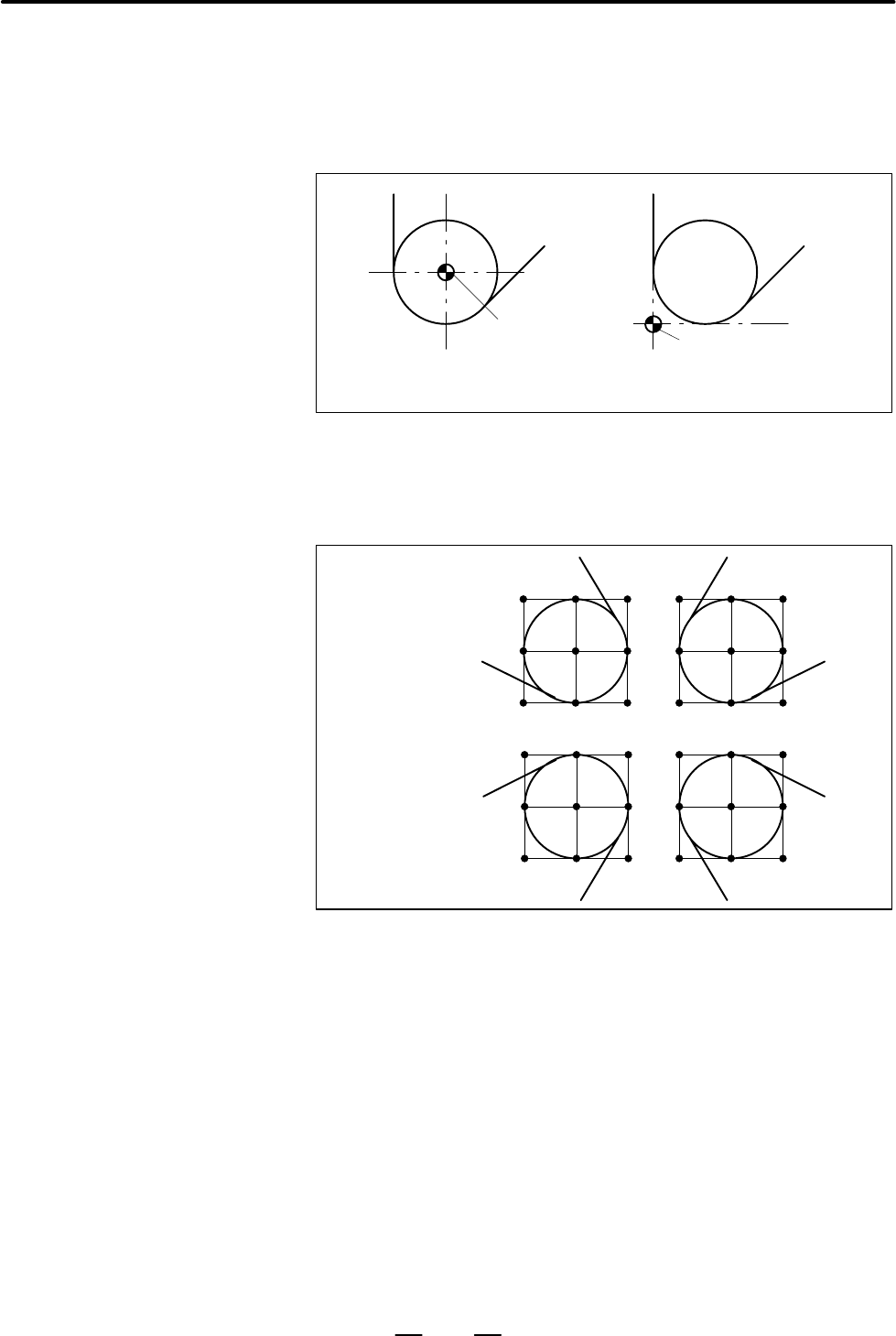

The tool nose at position A in the following figure does not actually exist.

The imaginary tool nose is required because it is usually more difficult to

set the actual tool nose center to the start point than the imaginary tool

nose. (Note) Also when imaginary tool nose is used, the tool nose radius

need not be considered in programming.

When programmed using the tool

nose center

When programmed using the

imaginary tool nose

Start point

The position relationship when the tool is set to the start point is shown

in the following figure. The point of tool nose for start point or reference

point i set in offset memory same as tool nose radius compensation

amount.

Setting point of tool nose

Tool nose radius compensation amount and imaginary tool nose point can

be set in the tool nose radius compensation memory.

When the last one or two digits of T code is commanded as offset number,

corresponding tool nose radius compensation amount and imaginary tool

nose point in the tool compensation memory is applied as the tool nose

radius compensation amount and imaginary tool nose point for cutter

radius compensation.

D Imaginary tool nose

D Tool nose radius

compensation amount

and assignment of

imaginary tool nose

point (T code)
