FANUC Series 16i/18i/21i-TB/MB
SERVO GUIDE Mate Specification
A
-79087EN
Drawing No.
Title
Page
5.5.1 Read
S-RAM card or ATA card can be used.

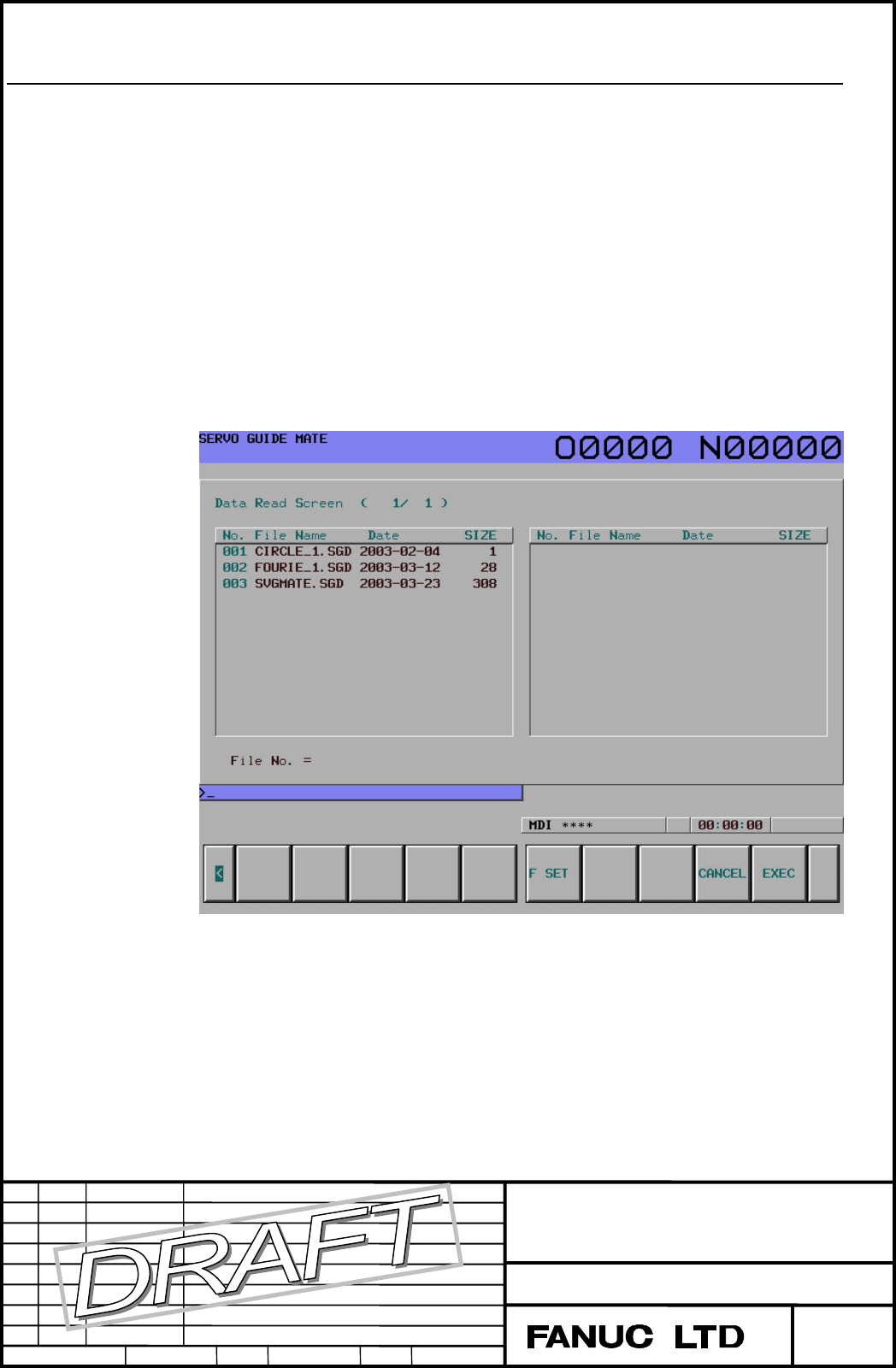

When soft key [READ] is pushed, a file list in the memory card is displayed on the screen.
A file name, a date and size (KB unit) are dispalyed with 1 column (soft key 7 type) or 2
column (soft key 12 type).
The mode is changed to the [EDIT] mode.
The number of a file to read from the file list is specified, and soft key [F SET] is pushed.
When soft key [EXEC] is pushed, a file is read.
When soft key [CANCEL] is pushed, it is returned to the soft key in one before.
All the data on the file specified from the memory card are read.
Setup data are changed to the data read completely.
The waveform is displayed by the reading data.
