  2. FS16i/18i/21i-TB/MB Servo Guide Mate Specification (Draft)

FS16i/18i/21i-TB/MB Servo Guide Mate Specification (Draft) Additional Manual Page 5

Additional Manual
Ed.
Ed.Ed.
Ed. Date
DateDate
Date Design
DesignDesign
Design Description
DescriptionDescription
Description
Date
DateDate
Date 2003.03.07 Desig.
Desig.Desig.
Desig. Kageyama Apprv.
Apprv.Apprv.
Apprv.
5
/
131
FANUC Series 16i/18i/21i-TB/MB
SERVO GUIDE Mate Specification
A
-79087EN
Drawing No.
Title
Page
1.1 Measurement and Drawing
The SERVO GUIDE Mate is composed by the following two elements.
• Measurement data
The data which the position, the torque acquired from CNC
• Drawing data
The data that operation treatment was done toward the measurement data
After data are measured, operation treatment is done, and waveform is displayed with the
SERVO GUIDE Mate.
The measurement data is called as channel(CH) and the drawing data is called as
draw(DRAW) at the following item.
CH1 : No.1 of the measurement data
Draw3 : No.3 of the drawing data

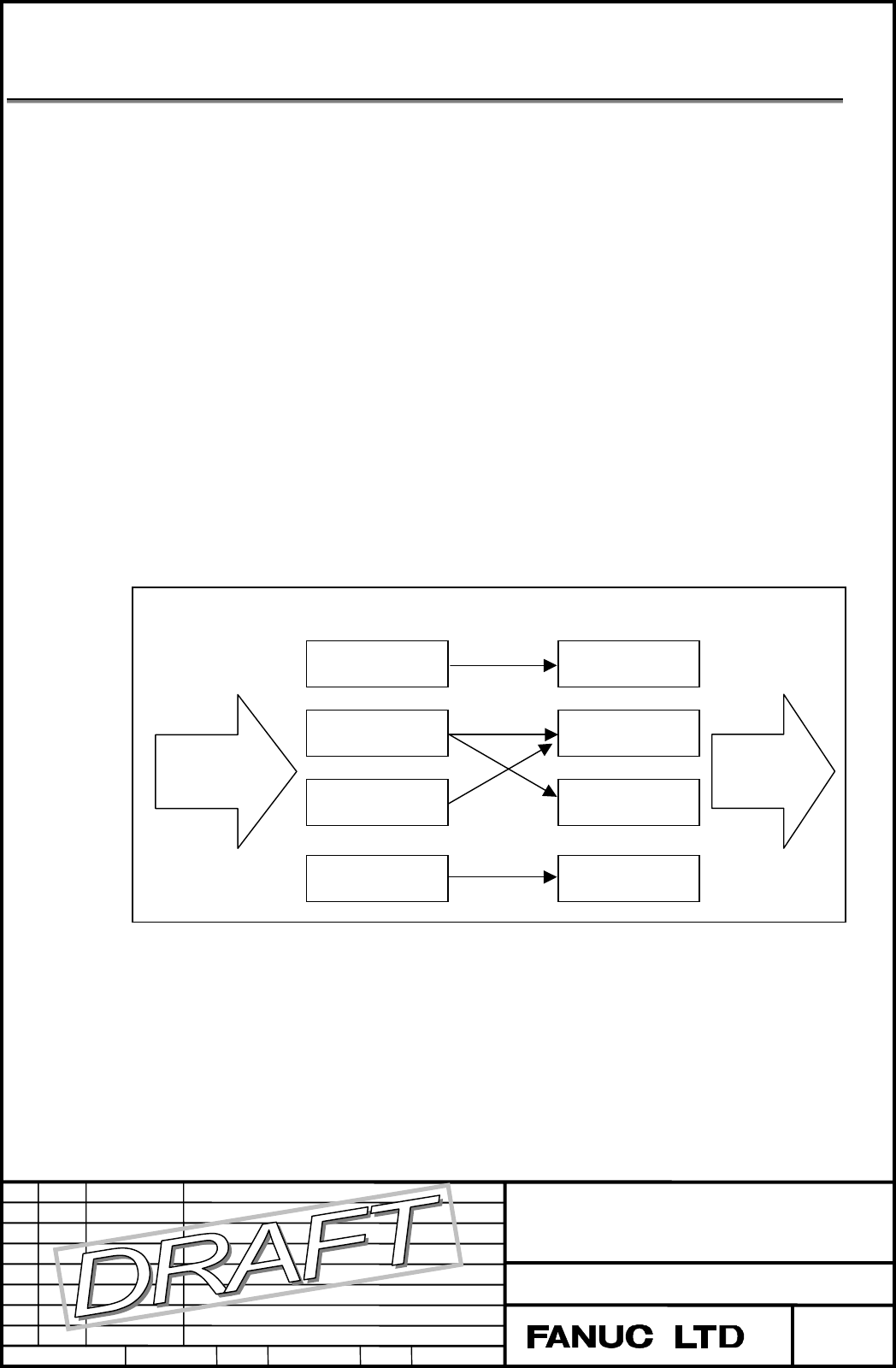

A general idea figure is as follows.
CH 1
CH 2
CH 3
CH 4
Draw 1
Draw 2
Draw 3
Draw 4
Operation
Measurement data
Drawing data
Data
acquisition
Screen
display
