FANUC Series 16i/18i/21i-TB/MB
SERVO GUIDE Mate Specification
A
-79087EN
Drawing No.
Title
Page
5.6 Comparison
To read the data that is measured before, it can be compared with the measurement data
this time.
This function is effective in the Moving path and Contour error only.

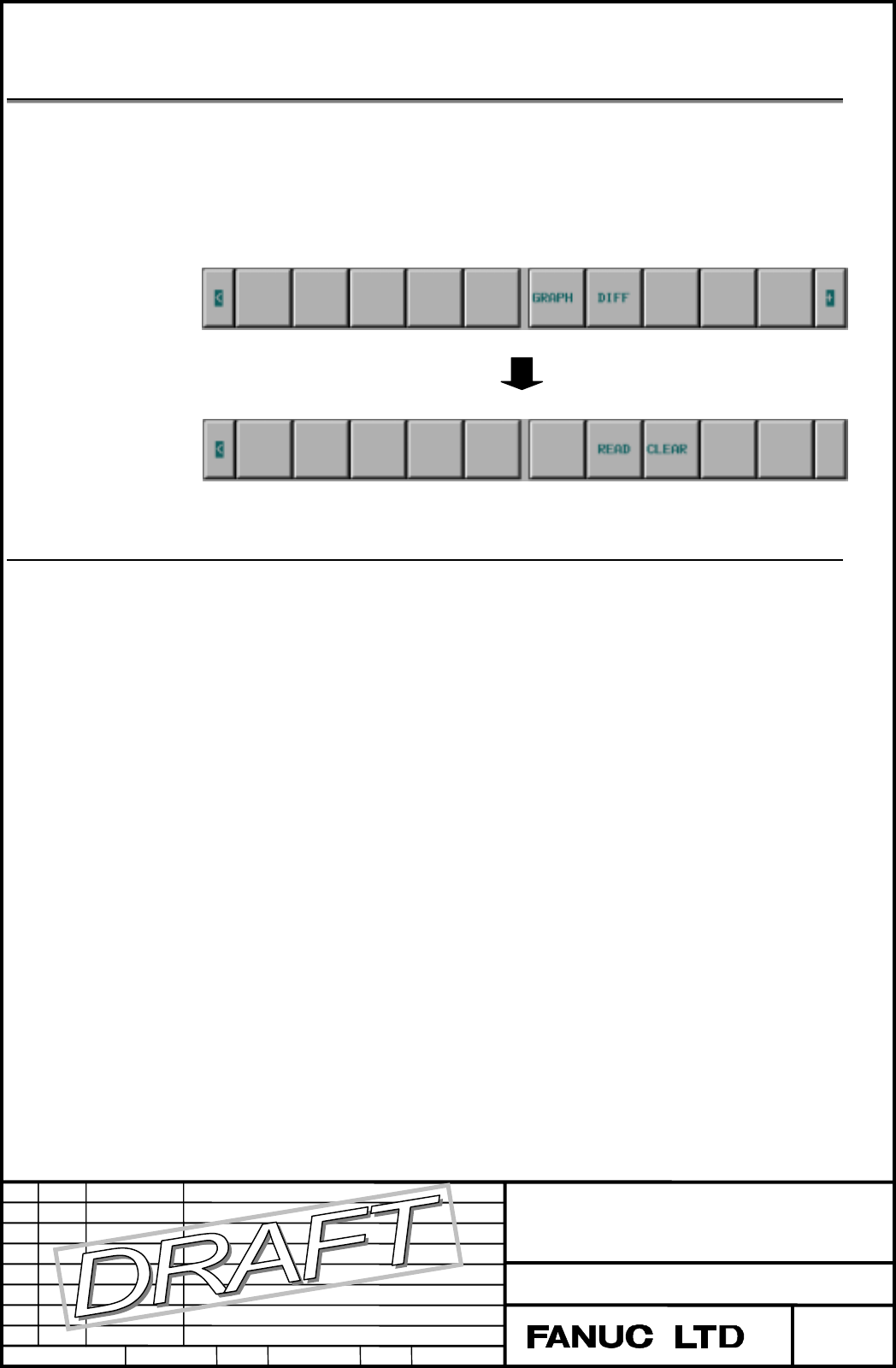

When soft key [DIFF] is pushed, it changes to the following soft key.
5.6.1 Read
S-RAM card or ATA card can be used.
When soft key [READ] is pushed, a file list in the memory card is displayed on the screen.
A file name, a date and size (KB unit) are dispalyed with 1 column (soft key 7 type) or 2
column (soft key 12 type).
The mode is changed to the [EDIT] mode.
The number of a file to read from the file list is specified, and soft key [F SET] is pushed.
When soft key [EXEC] is pushed, a file is read.
When soft key [CANCEL] is pushed, it is returned to the soft key in one before.
All the data on the file specified from the memory card are read.
Setup data (data intake settings/channel settings/operation&graph) aren't changed. But,
the data display is use to the settings on the screen and not use reading settings.
The color of a graph to compare is displayed by the color which is the same as Draw3,
Draw4 of the Y-Time mode.
