FS16i/18i/21i-TB/MB Servo Guide Mate Specification (Draft) Additional Manual Page 20

Additional Manual
Ed.
Ed.Ed.
Ed. Date
DateDate
Date Design
DesignDesign
Design Description
DescriptionDescription
Description
Date
DateDate
Date 2003.03.07 Desig.
Desig.Desig.
Desig. Kageyama Apprv.
Apprv.Apprv.
Apprv.
20
/
131
FANUC Series 16i/18i/21i-TB/MB
SERVO GUIDE Mate Specification
A
-79087EN
Drawing No.
Title
Page
3.1.2 'SET CHANNEL' Setup
The measurement axes, the kind of the data, a unit are set.
3.1.2.1 Soft key operation (a transition from the 'MEASURE SETTING' screen) to the
setup screen

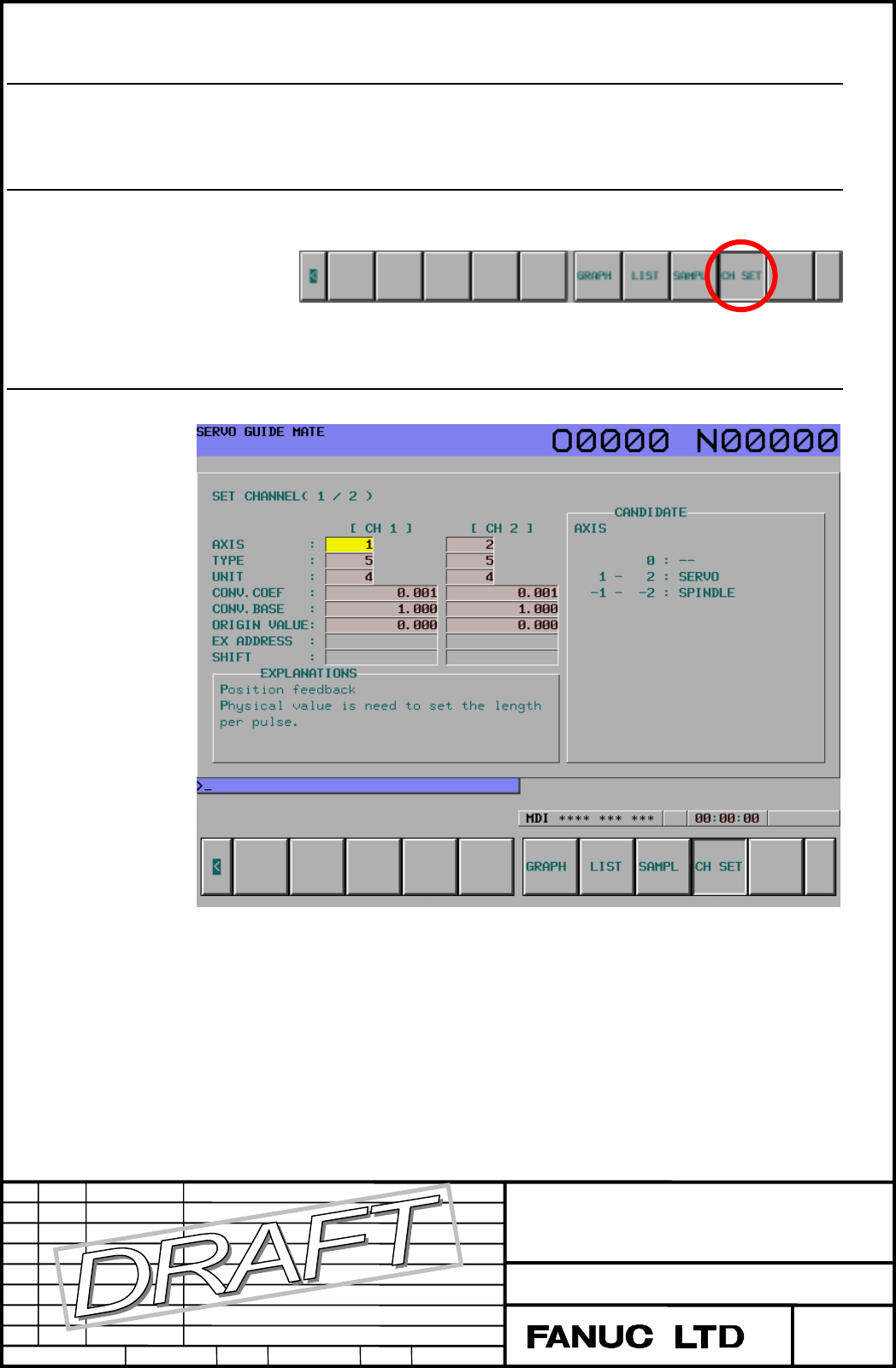

To select soft key as follows, “SET CHANNEL” screen is displayed.
(1) [CH SET] is selected.
(2) 'SET CHANNEL' screen is displayed.
3.1.2.2 Constitution of the screen
Screen (softkey type : 12)
Operation method
Cursor movement :
"↑" "↓" "←" "→" … It moves each direction
"Page↓" … Following page is displayed.
"Page↑" … Preceding page is displayed.
Previous page
Next page
