Servo Motor Beta Series (I/O Link Option) Maintenance manual Page 192

Maintenance manual

Page of 317

/ 317

B--65245EN/02

1. MAINTENANCE OF SERVO MOTOR

MAINTENANCE OF

SERVO MOTOR

169

Make the following checks before starting operation, or once a week or

month.

(1) Vibration or abnormal noise

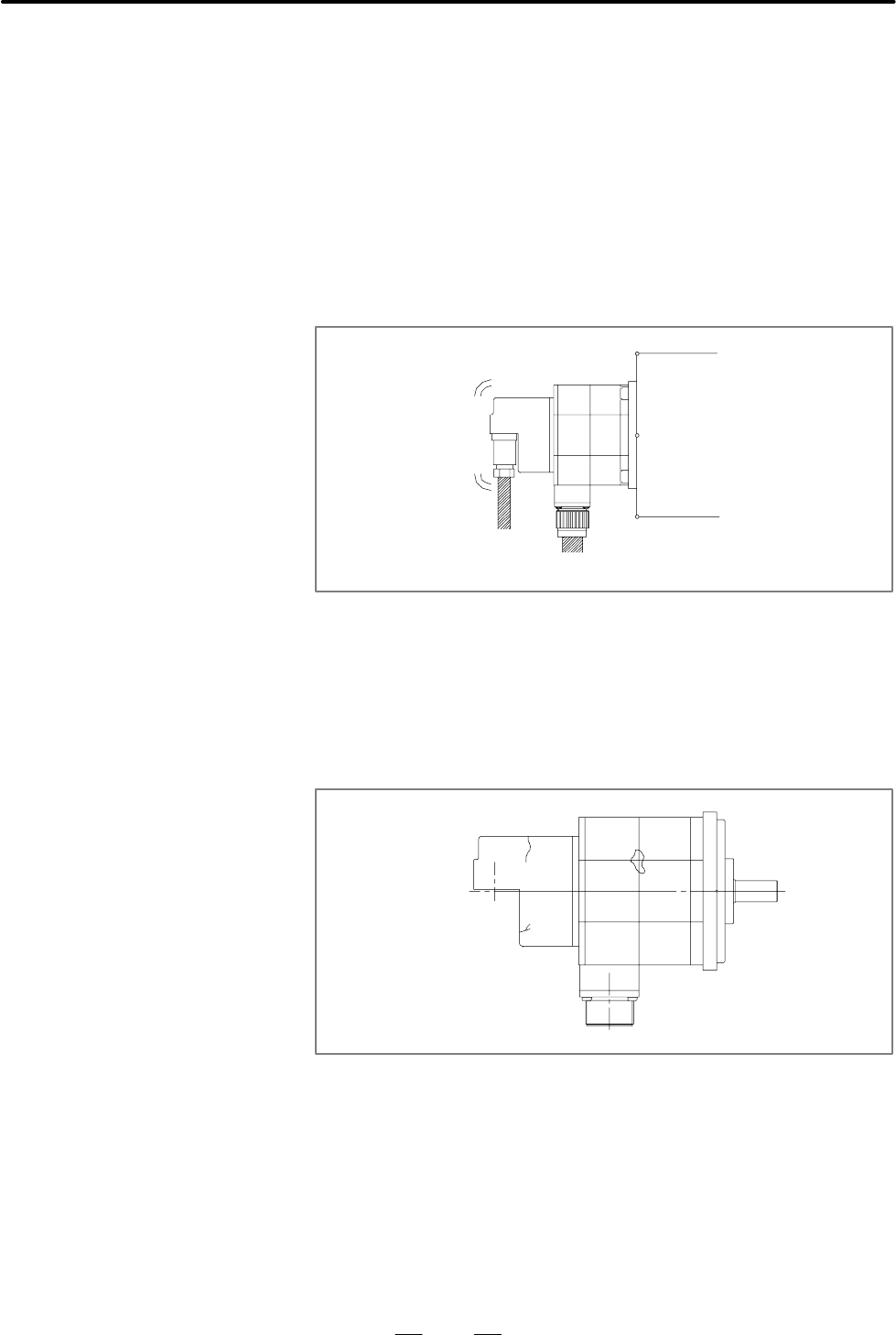

Check the servo motor for abnormal vibration or noise in the

following statuses:

D While stopped

D During low--speed operation

D During acceleration or deceleration

If any abnormal vibration or sound is detected, contact a FANUC

service station.

(2 ) External damage

Check the motor cover (red plastic cover) for cracks and the motor

surface (black--coated) for any abnormalities.

If any cracks are found, perform repair immediately. Alternatively,

replace the motor. If you have any questions about the replacement,

contact a FANUC service station.

(3) Dirt

Check the motor surface, screw indentations, and other places for oil

or coolant build--up.

Oil or coolant fouling on the surface causes a chemical reaction that

affects the coating, ultimately resulting in failure. Wipe away the oil

and coolant regularly.

If extensive fouling i s noted, determine how the oil or coolant is

reaching the motor. Take appropriate action to protect the motor from

the oil or coolant. For example, fit a cover.

1.2

ROUTINE CHECK OF

SERVO MOTOR
