2. HARDWARE

127

The following ground systems are provided for the CNC machined tool:

1. Signal ground system (SG)

The signal ground (SG) supplies the reference voltage (0V ) of the

electrical signal system to the machine.

2. Frame ground system (FG)

The frame ground system (FG) is used for safety, and suppressing

external and internal noises. In the frame ground system, the frames

and cases of the units, panels, and shields for the interface cables

between the units are connected.

3. System ground system

The system ground system is used to connect the frame ground

systems connected between devices or units with the ground.

Power

mag-

netics

unit

Servo

amplifi-

CNC

control

unit

Machine

tool

Operator’s

panel

Distribution board

Power magnet-

ics cabinet

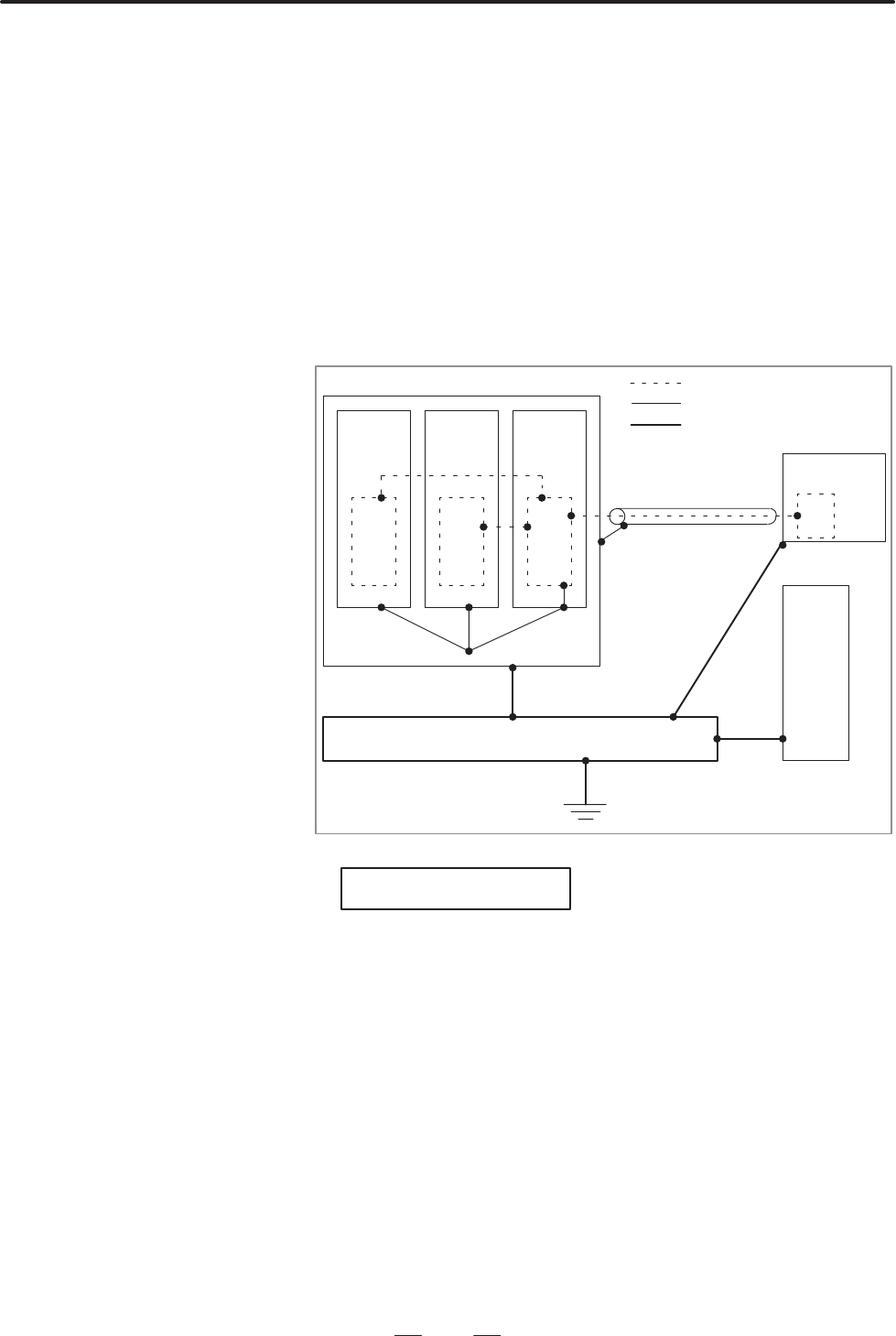

Signal ground system

Frame ground system

System ground system

Notes on connecting the

ground systems

⋅ Connect the signal gournd with the frame ground (FG) at only one

place in the CNC control unit.

⋅ The grounding resistance of the system gorund shall be 100 ohms or

less (class 3 grounding).

⋅ The system ground cable must have enough cross–sectional area to

safely carry the accidental current flow into the system gound when

an accident such as a short circuit occurs.

(Generally, it must have the cross–sectional area of the AC power

cable or more.)

⋅ Use the cable containing the AC power wire and the system gound

wire so that power is supplied with the ground wire connected.

D Ground
