SERIES 16/18/160/180/MODEL C Maintenance manual Page 421

Maintenance manual

Page of 516

/ 516

B–62755EN/01

10. TROUBLESHOOTING

(ANALOG INTERFACE SPINDLE)

407

Remove connector CN2 during

rotation, and the machine may

move a little.

YES

* Take enough care

* Do not execute frequently

YES

PAP

1 : 1

+5V

PBP

+5V

1 : 11/2

YES

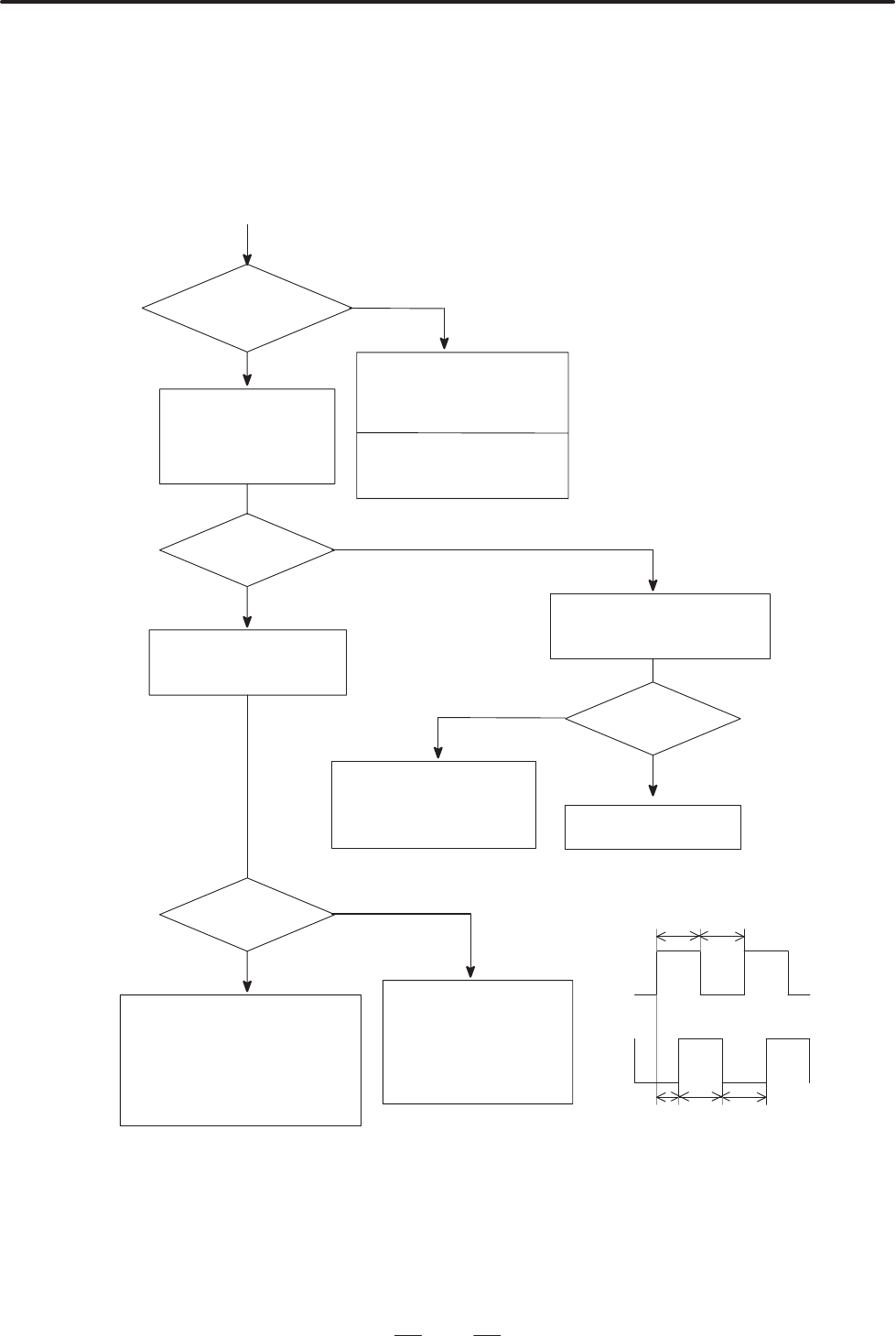

(Start)

Does it occur during

deceleration

Check waveform

with synchroscope

during rotation

· TSA

·ER

Check regenerative discharge

circuit (pause of regeneration)

· Check transistor module

If load inertia is large,

decrease value of F–20

* For 1S to 3S, disconnection of

transistor of discharge circuit or

discharge resistor

Is abnormality

confirmed?

Check relation between

frequency of vibration and

speed by changing speeds

Is abnormal

sound heard?

Electric system is abnormal

· Check incorrect signal of

pulse generator

· PCB is faulty

Problem of machine

Feedback signal of pulse generator

Is there any

relation?

· Check gear between spindle

and spindle motor

· Observe frequency of vibration

per motor rotation and check

the mechanical element that has

the frequency

· Check incorrect signal

of pulse generator

· Failure of machine

· PCB is faulty

· Check parameters F–21,

22, 25, and 26

10.8

ABNORMAL SOUND

AND VIBRATION

DURING ROTATION
