Series 16i/160i - LA Descriptions Page 74

Descriptions
10.FUNCTION FOR THREE-DIMENSIONAL PROCESSING SYSTEM B-63192EN/03
- 68 -
10.3 THREE-DIMENSIONAL CONTROL FUNCTION
10.3.1 W Axis Tracing Control
The W axis is arranged such that linear operation of the nozzle tip
section can be performed, and the gap sensor is connected at the
prescribed interface. If this function is specified, gap control can be
performed by the W axis. However, when using this function, the
tracing control function should be specified at the same time.
This function can be used unrelated to the attitude control of the
nozzle.

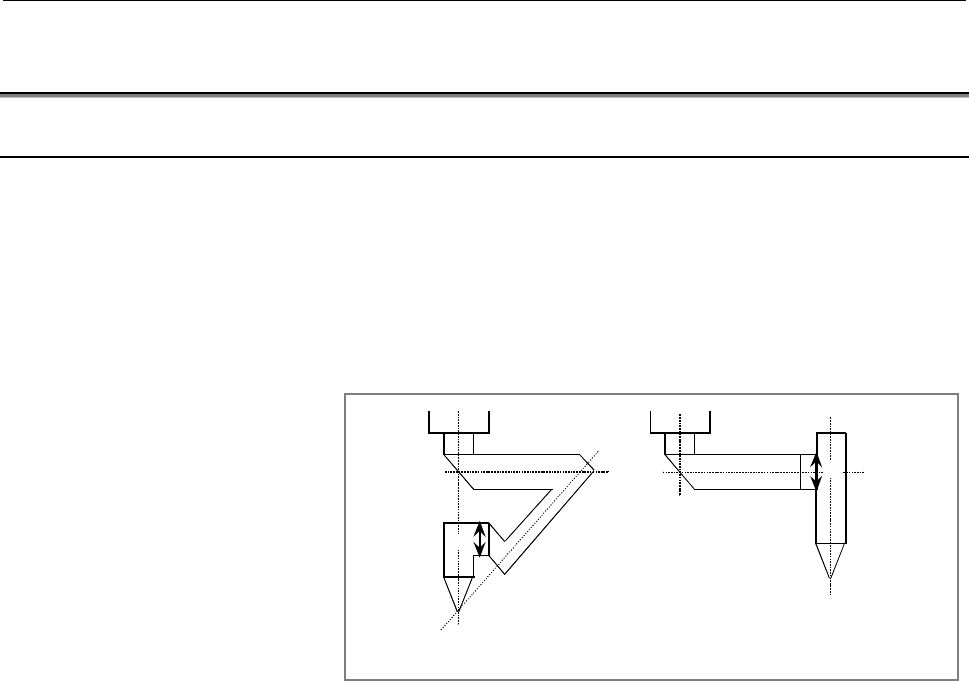

For attitude control A For attitude control B
W
W
(1) Tracing feed
If the machine supports W-axis tracing control, Z-axis tracing is
enabled by switching the tracing controlled axis to the Z-axis,
using a selection switch.
• Switching by an external signal
• Switching by a program
G13L0 ; Selects the W-axis.
G13L2 ; Selects the Z-axis.
(2) Approach feed
If W axis tracing control is included, and the selection signal is
set to ON, the machine enters approach feed mode.
In approach feed mode, the gap sensor signal is monitored, and if
the signal becomes zero or above (when approach to the
workpiece is the standard distance or greater), jog feed in the
direction stops. When you want to release the stop status, set the
jog feed switch to OFF then ON to instruct feed in the direction
away from the workpiece.
