Series 16i/160i - LA Descriptions Page 81

Descriptions
B-63192EN/03 10.FUNCTION FOR THREE-DIMENSIONAL PROCESSING SYSTEM
- 75 -
10.3.7 Manual Operation Using a Hand Coordinate System

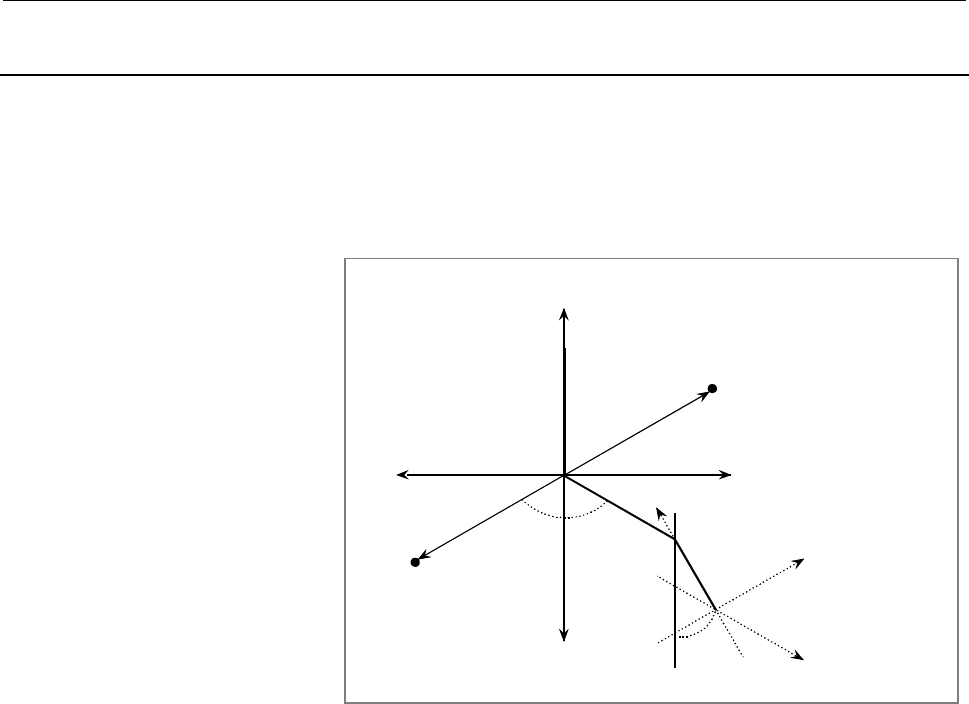

A hand coordinate system can be generated in which the origin is at
the tip of the nozzle, +Zh coincides with the line normal to the nozzle,
+Xh coincides with the arm direction, and the Yh-axis is orthogonal
to both Xh-and Zh-axes. This hand coordinate system can be used for
job and handle feed.
Machine coordinates
(x, y, z)
X
α
L1 +Zh
Y
Z
β
+Xh
Hand coordinate
system
+Yh
L2
(1) Turning on the hand coordinate system selection signal selects
hand coordinate system mode.
(2) For jog feed in hand coordinate system mode, turning on the jog
feed axis direction signal ±X causes the machine to move in the
±Xh-axis direction. Similarly, turning on the signal for ±Y or ±Z
causes the machine to move in the ±Yh-axis or ±Zh-axis
direction, respectively. To change the hand coordinate system,
turn off the hand coordinate system mode selection signal, and
operate on the α- and β-axes.
(3) For handle feed in hand coordinate system mode, rotating the
manual pulse generator with the X-axis selected as the handle
axis causes the machine to move in the ±Xh-axis direction.
Similarly, rotating the pulse generator with the Y-axis or Z-axis
selected as the handle axis causes the machine to move in the
±Yh-axis or ±Zh-axis, respectively. To change the hand
coordinate system, turn off the hand coordinate system mode
selection signal, and operate on the α- and β-axes.
(4) Set the same value for the manual feedrates on the X-, Y-, and Z-
axes.
