B–62073E–1/042. INTERFACE BETWEEN CNC AND PMC–NA OR NB

– 174 –

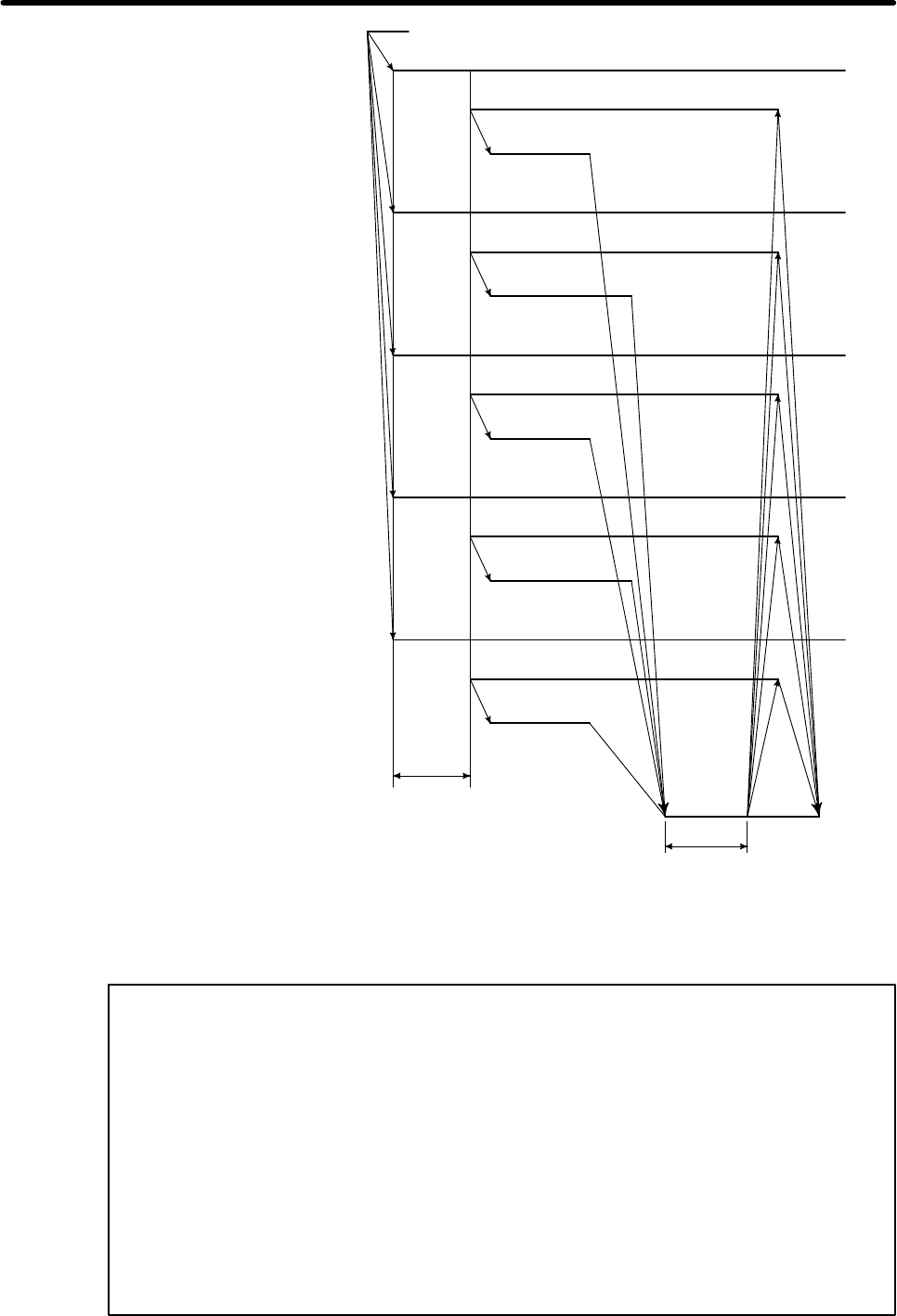

M command MaaMbbMccMddMee

Code signal M00 - M31

Strobe signal MF

PMC operation

Code signal M200 - M215

Strobe signal MF2

PMC operation

Code signal M300 - M315

Strobe signal MF3

PMC operation

Code signal M400 - M415

Strobe signal MF4

PMC operation

Code signal M500 - M515

Strobe signal MF5

PMC operation

End signal FIN

MF-DLY

T-FIN

A high–speed interface can also be used to simplify the transfer of the strobe signal and the completion signal

for multiple M commands issued for one block. This interface provides separate completion signals for each

M code. They are called MFIN (the same name as for the single M command per block function), MFIN2,

MFIN3, MFIN4, and MFIN5, respectively. The signal transfer sequence for multiple M codes per block is the

same as that for a single M code per block.

NOTE 1 The control unit is basically designed to issue up to five M codes. However, some types of M

codes cannot be issued simultaneously with others because of mechanical constraints. For

example, M42 can be issued only after the mechanical operation specified by M41 has

finished. Refer to the manual published by the machine builder for details about whether

mechanical operations inhibit particular commands from being issued for a block

simultaneously.

NOTE 2 Do not issue M00, M01, M02, M30, M98, or M99 simultaneously with other M codes.

NOTE 3 Besides M00, M01, M02, M30, M98, and M99, there are M codes that cannot be used

simultaneously with others and must be issued one at a time.

For example, M codes that direct the control unit to perform internal operations in addition to

sending out M code signals should not be used more than once in a single block. Such M

codes include an M code for calling programs 9001 to 9009, an M code for spindle positioning,

and an M code for inhibiting preread of the next block (M code without buffering). In other

words, M codes that can be issued more than once or with other M codes in a single block are

those that only direct the control unit to send M code signals to the machine tool.
