SERIES 15-150 MODEL B Connection manual Page 250

Connection manual
B–62073E–1/042. INTERFACE BETWEEN CNC AND PMC–NA OR NB
– 244 –

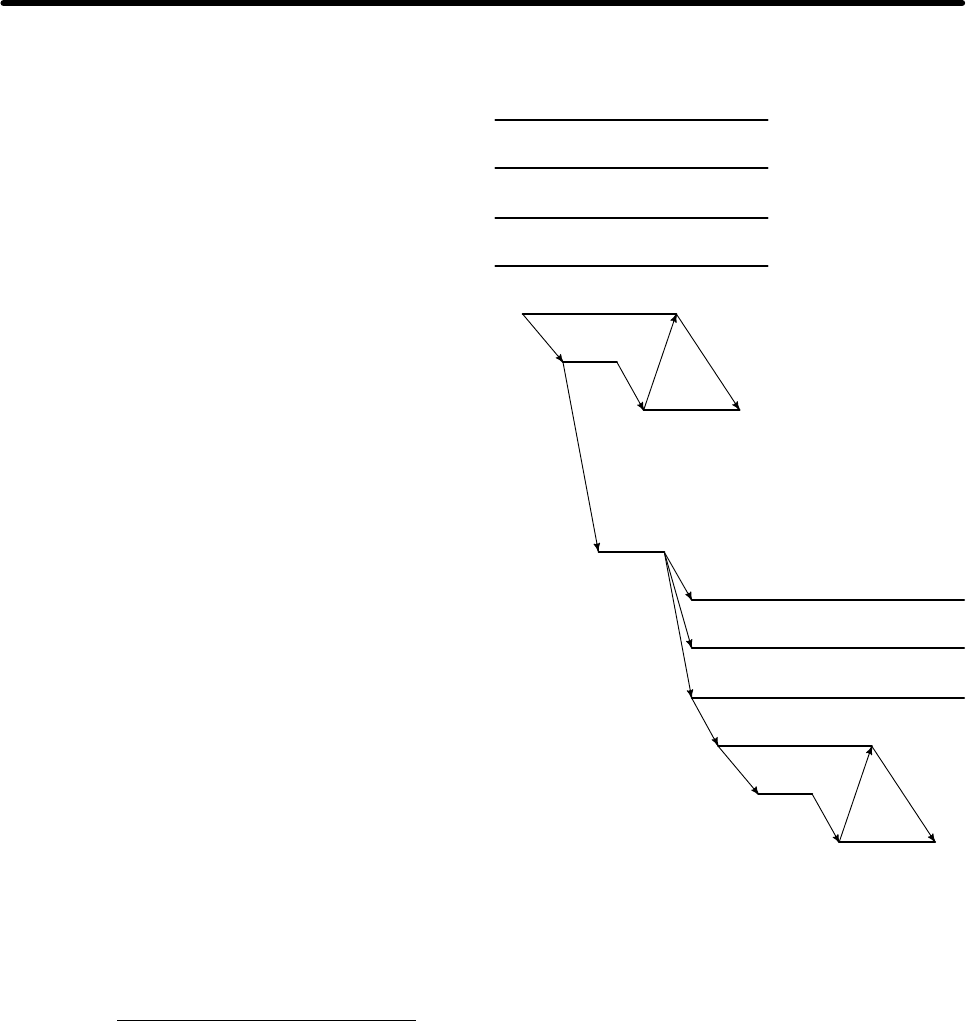

The timing chart for the procedure above is shown below.
Address signal EIA0 to  7
Data signal EID0 to 47
Tool post specification
signal (15-TT) EIHEAD
DATA output
request signal ERDRQ
Strobe signal EISTB
Data read (NC)
Read end signal EIREND
(1) (2) (3) (4) (5) (6)
(7) (8) (9) (10) (11) (12) (13) (14) (15)
Data set (NC)
Address signal EOA0 to 7
Data signal EOD0 to 47
Tool post specification
signal (15-TT) EOHEAD
Strobe signal EOSTB
Data read (PMC)
Read end signal EOREND
External data output does not necessarily occur immediately after external data input for making an external
data output request. If it takes a long time for the control unit to prepare output data, external data output may
be delayed. In such a case, before the external data output is completed, no additional external data input op-
erations are accepted; they are forced to wait. Even if EISTB goes high, the control unit does not read data
until the current external data output operation is completed; in this case, the alarm O0T124 is raised.
External data that can be input/output
(i) Program number
[Input] A program to be executed in the memory command mode is searched for when its program
number is specified.
A program number from 1 to 9999 can be specified in binary.
[Output] The program number of the main program currently executed is output.
(ii) Sequence number
[Input] A block to be executed in the memory command mode is searched for when its sequence
number is specified.
A sequence number from 1 to 9999 can be specified in binary.
[Output] The program number of the block currently executed is output.
