SERIES 15-150 MODEL B Connection manual Page 226

Connection manual

Page of 353

/ 353

B–62073E–1/042. INTERFACE BETWEEN CNC AND PMC–NA OR NB

– 220 –

(the velocity integrating control function must be invalidated) after the two spindles are me-

chanically connected to each other as described above.

(7) Sample sequences

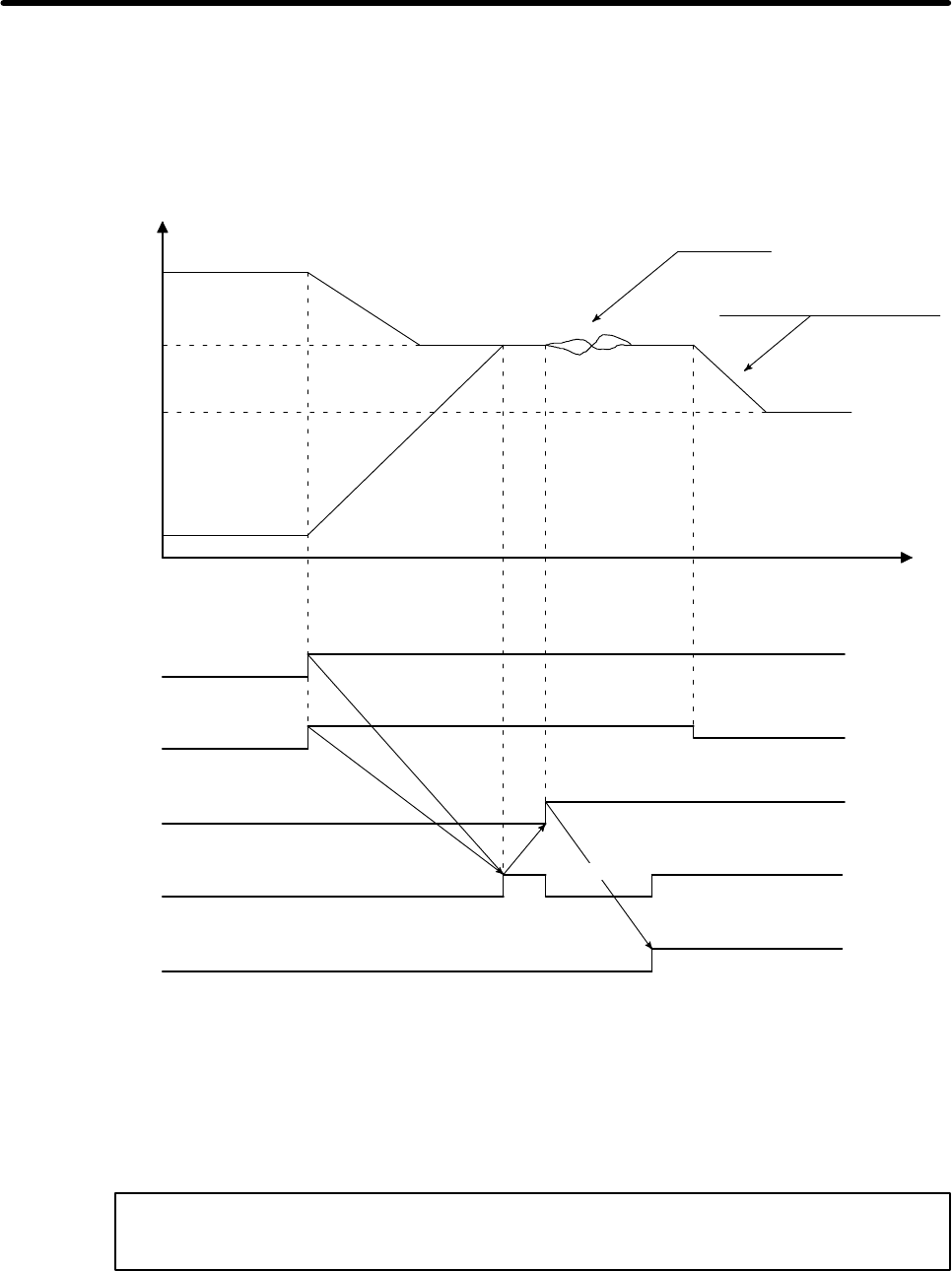

(a) While spindle 1 is rotating, spindle 2 is accelerated to be synchronized with spindle 1. Then the

spindles are controlled to be in the same phase. The spindle speed to be detected in synchronization

is changed, and the spindles synchronously are accelerated or decelerated.

RPM

Synchronization

speed rpm A

Synchronization

speed rpm B

Spindle 1

Spindle 2

Phasing

Acceleration/Deceleration

for Synchronization

Time

Spindle Synchronization

Control Signal

Spindle Synchronization Speed

Command Signal

Spindle Phase Synchronization Control Signal

Spindle Synchronization Speed Control Complete signal

Spindle Phase Synchronization Control Complete signal

(2)

(3)

(4)

(1)



RPM A

RPM B

(1)

(1) The signal specifying the spindle speed to be detected in synchronization is specified, and the

spindle synchronization signal, SPSYC, is set high.

(2) The system waits until the spindle speed synchronization completion signal, MSPSYC, goes

high.

(3) The spindle phase synchronization signal,SPPHS, is set high.

(4) The system waits until the spindle phase synchronization completion signal, MSPPHS, goes

high.

NOTE After SPPHS is entered, MSPSYC is set low. MSPSYC goes high again when spindle phase

synchronization is completed.
