Manual Guide M Operators manual Page 101

Operators manual
Manual Guide M Pocketing
GE Fanuc Automation S.A. - 100 -
GFKE-0046-EN/01
Important note
DETAIL SET screen - unnecessary to select. Usually
preset values are suitable as default.

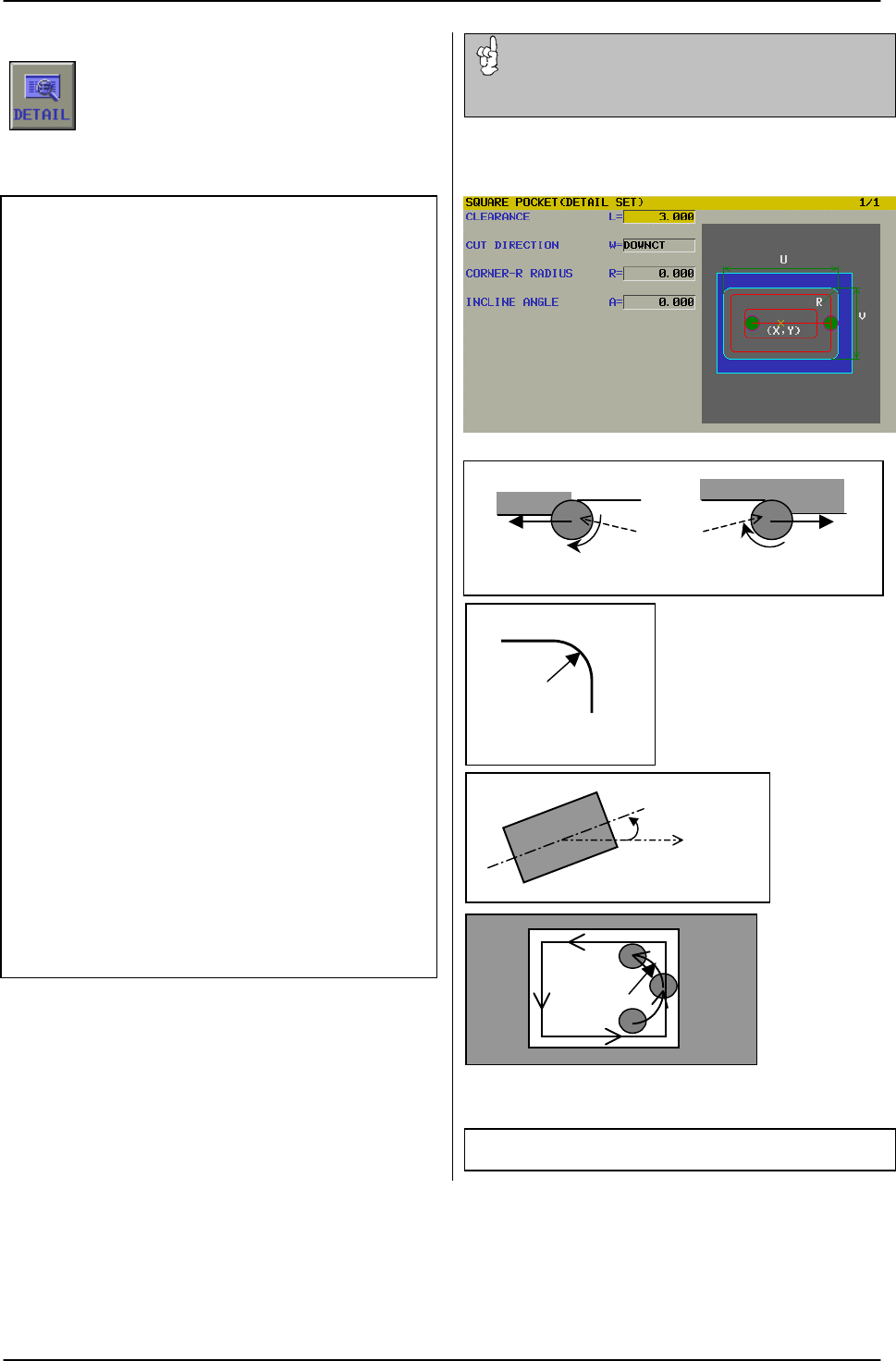

By pushing "DETAIL" Soft-Key
Following pop-up window is displayed:
CLEARANCE
The amount of clearance for cutting feed
in Z axis at the approach and escape
movement. The default amount is 3mm.
CUT DIRECTION
Select the cutting direction from Soft-Key,
Down-cut or Up-cut:
CORNER R
It is not necessary to input a radius in this
field, the corner is then machined
according the tool radius. In case that a
specified radius is need, input the amount
of the radius. The tool radius can be
maximal the corner radius.
INCLINE ANGLE
The angle between U side and the X axis. It is
considered to be 0 if not input.
APPROACH/ESCAPE (only for Finish/Chamfer)
The movement is performed as an quarter arc.
It is calculated automatically , if no data input.
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
G230 P_ L_ Z_ S_ B_ J_ H_ D_ F_ C_ E_ B_ *** ;
Down-cut U
p
-cut
End-mill
Corner R
R
A
Work
p
iece
Xaxis
K
