Manual Guide M Operators manual Page 18

Operators manual
Manual Guide M Details of Menu
GE Fanuc Automation S.A. - 17 -
GFKE-0046-EN/01

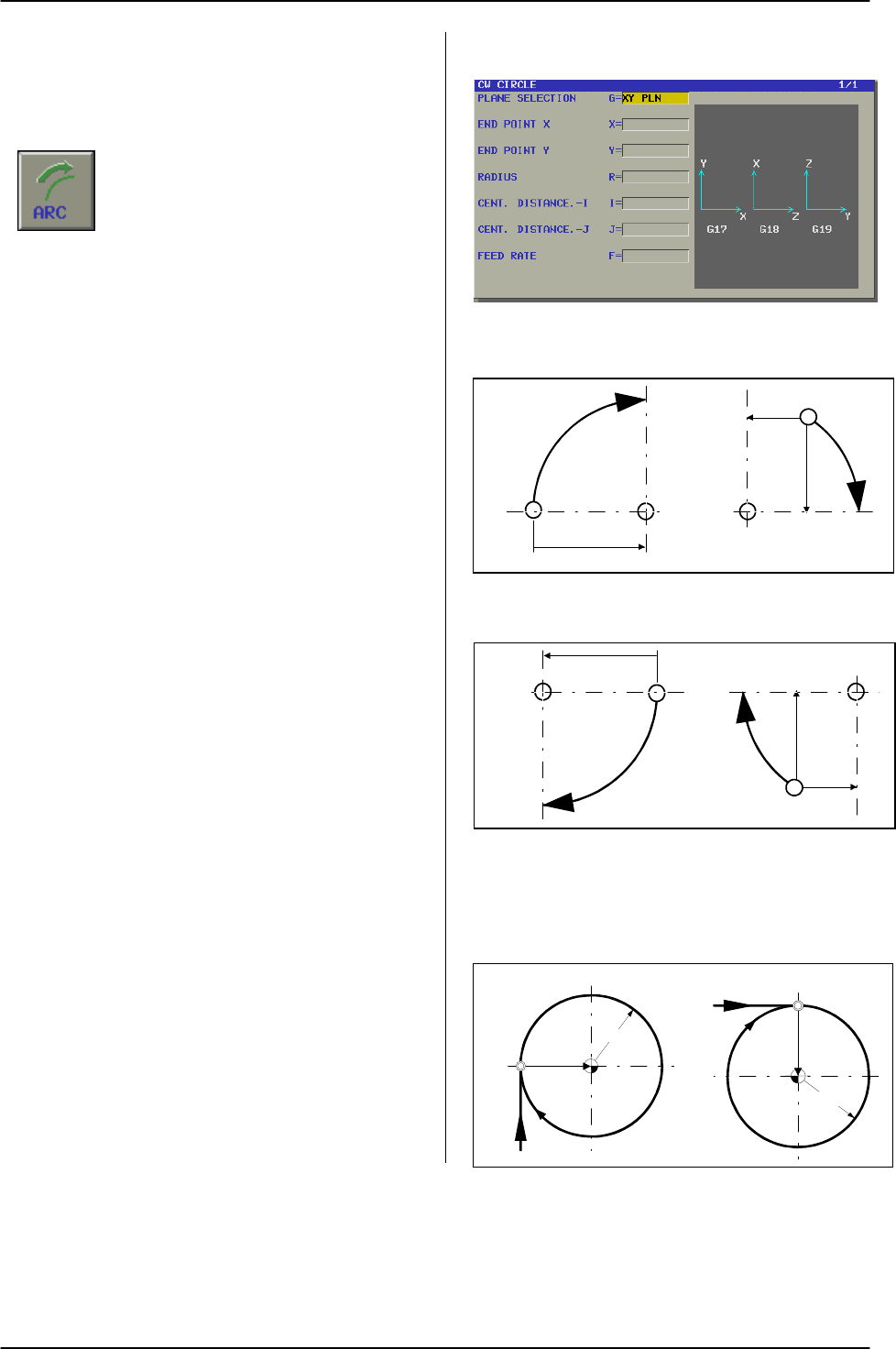

2. 6 Clockwise Circle
This menu enables the Operator to define data for
"Circle Clockwise" cutting.
After pushing the soft-key "ARC",
the following pop-up window is displayed:
Plane Selection: A arc can be cut in 3 different
planes.
In XY-Plane (G17)
In ZX-Plane (G18) or
In YZ-Plane (G19)
End Point X: Input end position in X (G17)
End Point Y: Input end position in Y (G17)
Radius: Input the arc radius, or
Center Distance - I: Define the incremental
distance from Arc start point
to Arc center point in X (G17)
Center Distance - J: Define the incremental
distance from Arc start point
to Arc center point in Y (G17)
Feed Rate: Input feed rate for movement
Circle of 360 degree
In case of full circle, 360 degree, even only necessary
data has to be input. Please see example beside.
The center of circle is defined from Start point only by
I+ *** (left example) or J-*** (right example).
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
Data Input Pop-Up Menu
G02 X_ Y_ I +_ ( J0 ) G02 X_ Y_ I -_J -_
G02 X_ Y_ R_ G02 X_ Y_ R_
G02 X_ Y_ I -_ ( J0 ) G02 X_ Y_ I+ _ J +_
G02 X_ Y_ R_ G02 X_ Y_ R_
(In case that Value of I = 0 or J = 0,
I or J is not necessary to define)
Full Circle: G2 I50 G2 J-50
G 2
END
I
XY
CENTER
XY
CIRC-G02
G 2
START
END
XY
I
XY
CENTER
XY
J
START
XY
G02
END
I
XY
CENTER
XY
CIR2-G02
G02
START
END
XY
I
XY
CENTER
XY
J
START
XY
CIRV-G02
G02
R50
XY
START
END
I+
G02
R50
XY
START
END
J-
