Manual Guide M Operators manual Page 23

Operators manual
Manual Guide M Details of Menu
GE Fanuc Automation S.A. - 22 -
GFKE-0046-EN/01

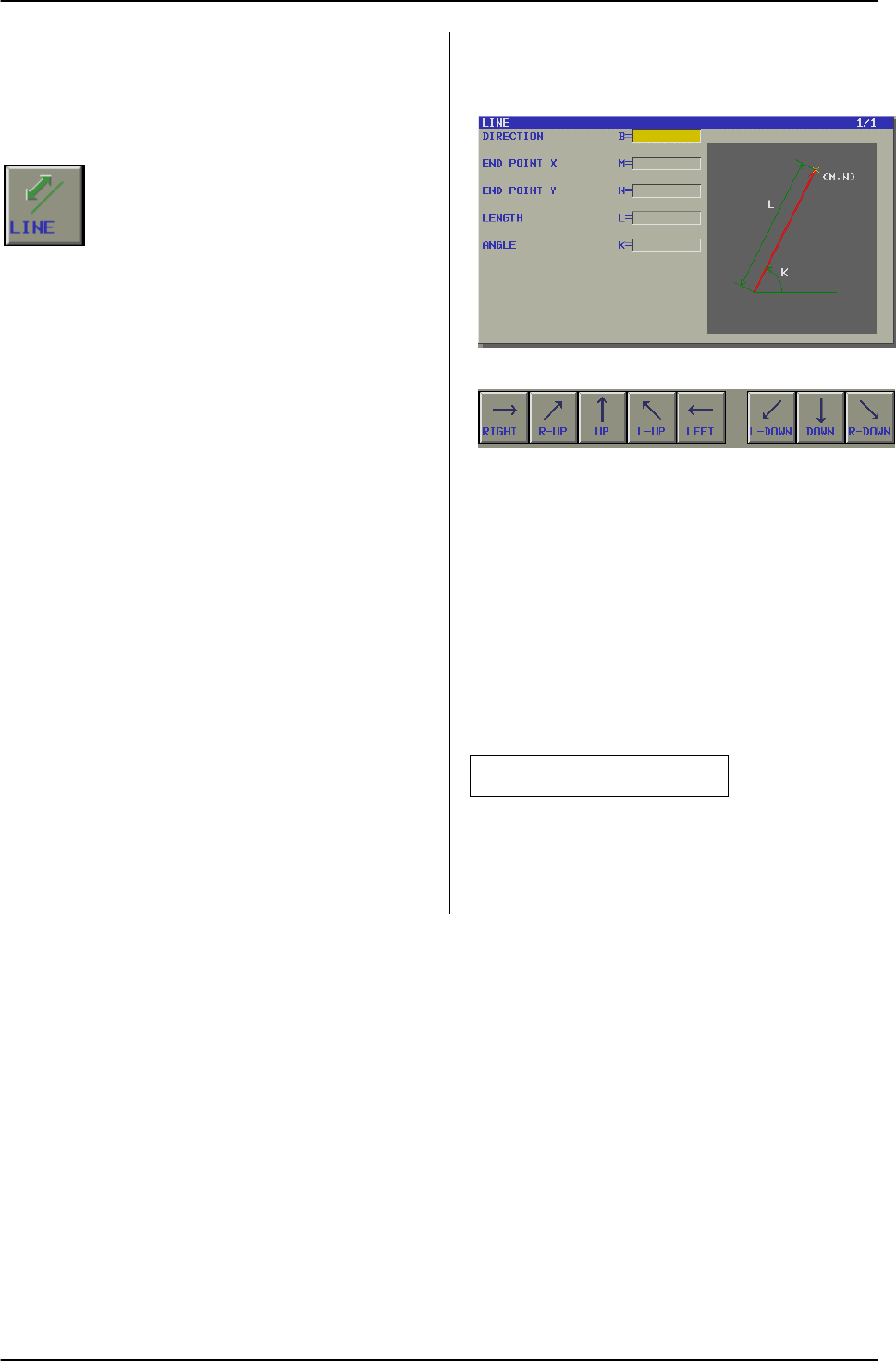

2. 8. 2 Line
A Line in any direction can be defined.
By pushing " LINE " Soft-Key
the following pop-up window is displayed:
Direction
To select a ' Line direction ', following
Soft-Key's are available:
End Point X
This is the Line end position in X
End Point Y
This is the Line end position in Y
Length
This is the incremental length of the line
Angle
The Angle can be specified, based on X-axis,
CW or CCW
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
Data Input Pop-Up Menu
Either End Position or Incremental Length has to be
input.
G101 X-50. Y25. Q2. B1. L10.;
G101 = Code for Line
X/Y = End position of line
Q2 = ?
B1 = Line straight right
L10 = Incremental length of line
