Manual Guide M Operators manual Page 11

Operators manual
Manual Guide M Basics
GE Fanuc Automation S.A. - 10 -
GFKE-0046-EN/01

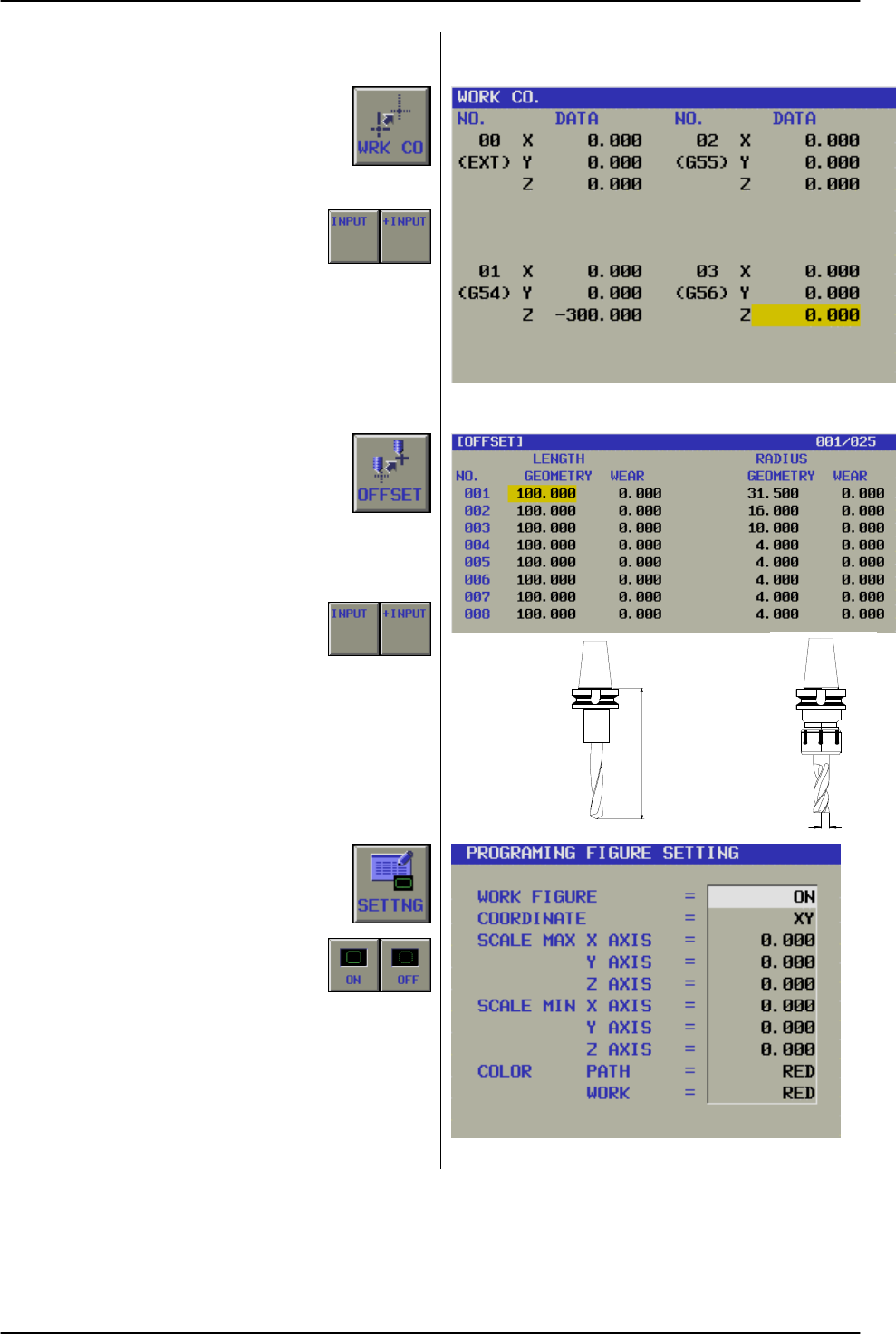

1. 5 Work Coordinate
By pushing Soft-Key.'WRK CO', following
pop up window is displayed.
Work Coordinates are available from
01 (G54) to 06 (G59). Work Coordinate
00 (EXT), is to shift all offsets 01 to 06.
With Soft-Key INPUT a absolute value
is input. With Soft-Key +INPUT, the
value will be added or subtracted from
the current value, depends of the sign
before the value, + add, - subtract.
1. 6 Tool Offset
By pushing Soft-Key.OFFSET,
following pop up window is displayed.
Tool Offsets are available from
01 to 200 (depends of option status),
for Tool length, Geometry and Wear
and for Tool Radius, Geometry and
Wear.
With Soft-Key INPUT a absolute value
is input. With Soft-Key +INPUT, the
value will be added or subtracted from
the current value, depends of the sign
before the value, + add, - subtract.
1. 7 Setting
By pushing Soft-Key.SETTING, following
pop up window is displayed, for data
displaying work figure,
These data are defining automatically
by setting the INITIAL SET menu.
Normally the operator has not to take
care for it.
1. 8 Data In-/Output
Program data IN- / OUTPUT can be performed as
normal CNC Operation only.
Korrekturmass = L
¶ CTS - FL / NC08-101
¶ C TS - FL / NC08- 104
RADIUS OFFSET
