Manual Guide M Pocketing
GE Fanuc Automation S.A. - 108 -
GFKE-0046-EN/01
Important note

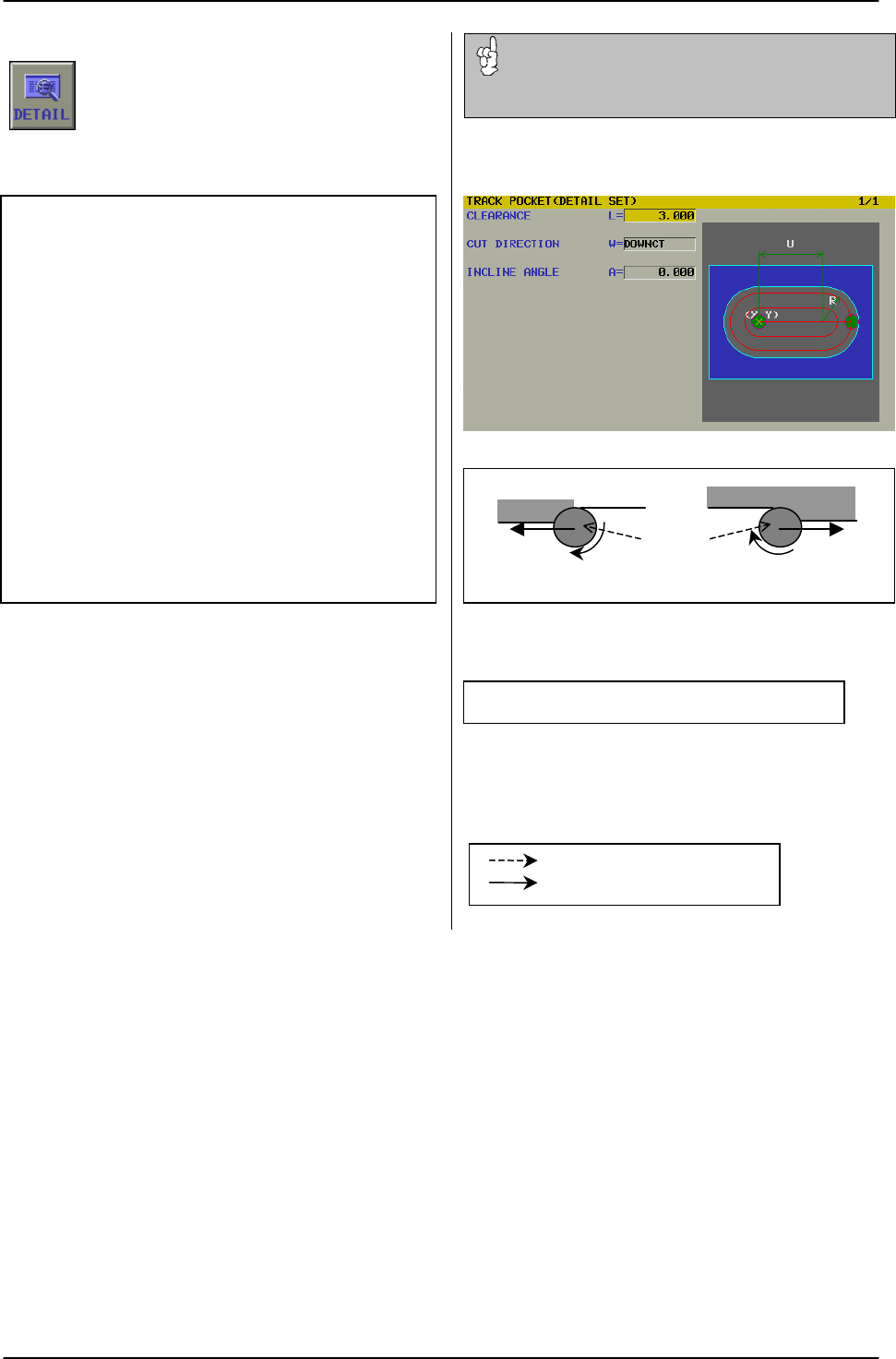

DETAIL SET screen - unnecessary to select. Usually
preset values are suitable as default.
By pushing "DETAIL" Soft-Key
Following pop-up window is displayed:
CLEARANCE
The amount of clearance for cutting feed
in Z axis at the approach and escape
movement. The default amount is 3mm.
CUT DIRECTION
Select the cutting direction from Soft-Key,
Down-cut or Up-cut:
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
7. 4. 2 Movements in Pocket Track
Movements are similar in all Pocketing Menus.
The movements of Track Pocketing cutting are
basically similar to those of Square Pocketing.
G232 P_ L_ Z_ B_ J_ H_ D_ F_ C_ E_ *** ;
Feed Traverse
(
G01
)
Ra
p
id Traverse
(
G00
)
Down-cut U
p
-cut
End-mill
Previous page
Next page
