Manual Guide M Operators manual Page 31

Operators manual
Manual Guide M Details of Menu
GE Fanuc Automation S.A. - 30 -
GFKE-0046-EN/01

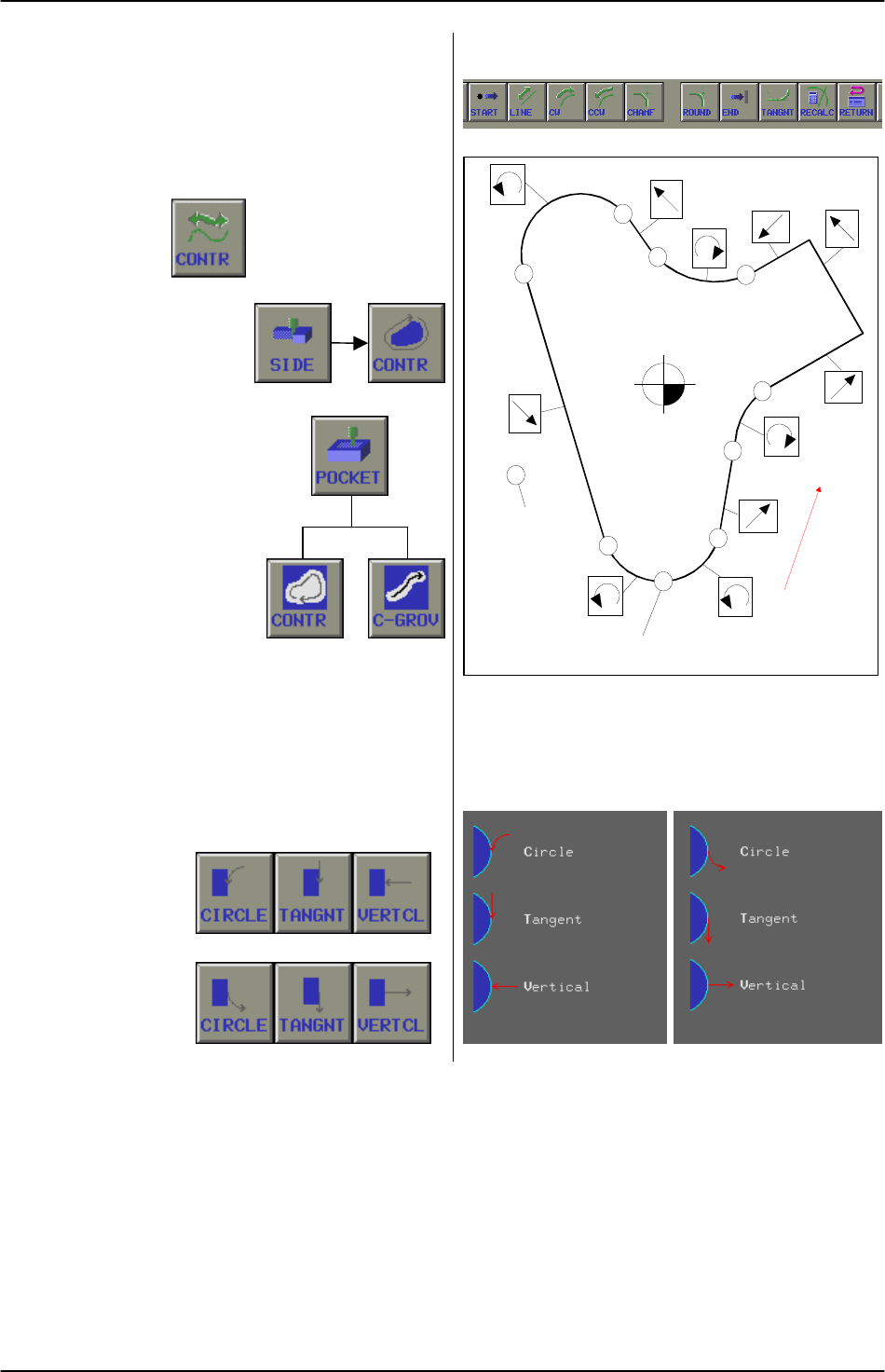

2. 8. 10 Using Symbol Keys
In Contour Menu the Symbol Keys are used, to define
the contour figure. In following menus contour
programming is available:
• Direct Contour programming
without cycle
• Side Cutting programming,
sub menu Contour
• Pocketing programming,
sub menu CONTR, or
sub menu C-GROV
In Side Cutting menu, Inside or Outside, the Start
Point is a point XY at the final figure. The Approach
strategy must be defined in cycle menu SIDE.
There are 3 different Approach /Escape Types
available:
• Approach:
Circle
Tangent
Vertical
• Escape:
Circle
Tangent
Vertical
Approach Escape
Approach / Escape
Point
At this points select
TANGNT
Cutting direction
