Manual Guide M Operators manual Page 144

Operators manual
Manual Guide M Programming Examples
GE Fanuc Automation S.A. - 143 -
GFKE-0046-EN/01

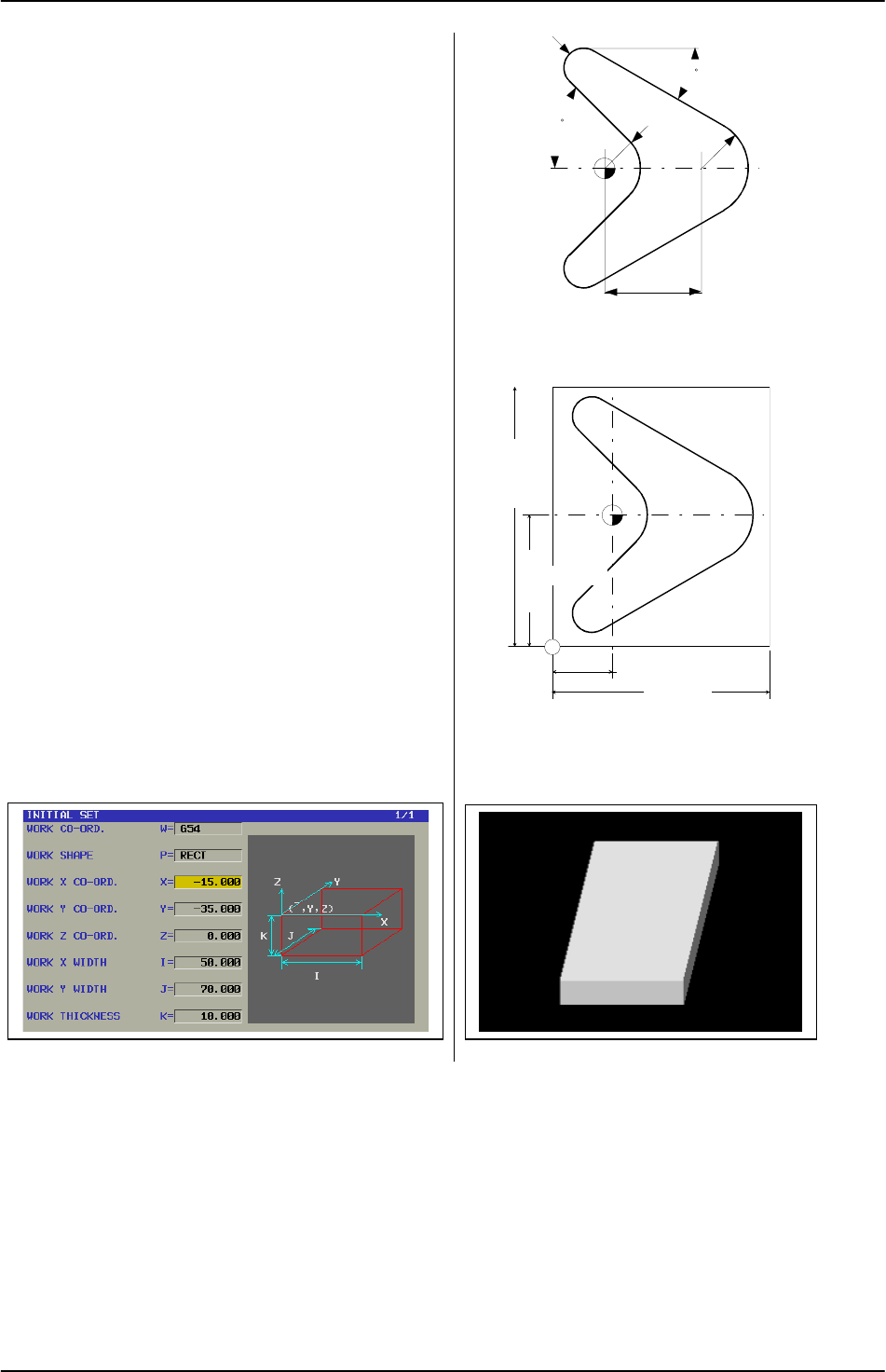

A-4.3. Example 3
A-4.3.1. Blank Definition
Work Zero definition:
Basically the Work Zero Offset position can be set
according drawing design to the center or to any
other position.
In this example, it would be the best way, to select
the work zero offset position in XY to the left lower
corner. Data input please see example below.
• Work zero: Center of radius R = 8
• Blank is assumed as preshaped,
5,0 mm material around has to be cut.
• The thickness is 10,0
Initial Setting
Data input screen 1/1
Blank Dimension
Solid Graphic of Blank
R 4
R 10
R 8
20
30
45
GEF #FL / ZBF-013
GEF #FL / ZBF-013
1260,75 mm
640,75 mm
1057,00 mm
288,00 mm
x = -15
I = 50
Y = - 35
J = 70
