Manual Guide M Hole Pattern
GE Fanuc Automation S.A. - 62 -
GFKE-0046-EN/01
4. 1 Hole Pattern Input
4. 1. 1 Single Points (G200)
This is a menu for specifying the arbitrary hole
positions. It is no limitation in No. of points to define,
because this menu can be called several times.

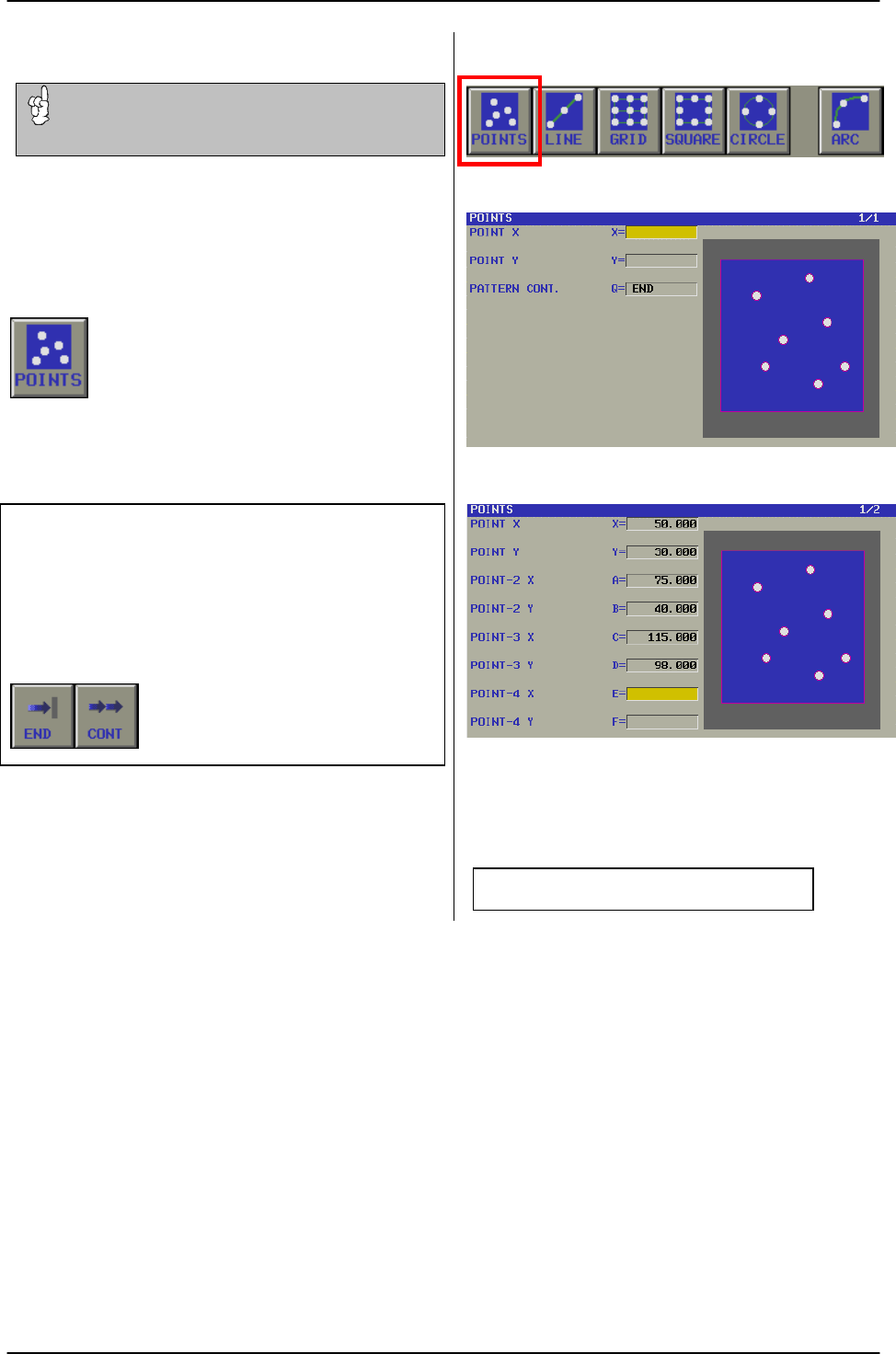

By pushing [POINTS], the following pop-up window is
displayed.
POINT X/Y X and Y coordinates of the position
of each hole.
POINT-2 X/Y If the first two holes are input, the
next hole position can be input,
up to maximal 8 hole points.
PATTERN CONT. Select whether to continue
entering another hole pattern
from the following Soft-Key
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
G200 X_ Y_ (A_ B_ C_ D_ E_ F_ **** ;)
Important note
Before Pattern data input, one of the drilling cycles has to
be performed first.
Previous page
Next page
