Manual Guide M Operators manual Page 126

Operators manual
Manual Guide M, Guide Advanced Programming
GE Fanuc Automation S.A. - 125 -
GFKE-0046-EN/01

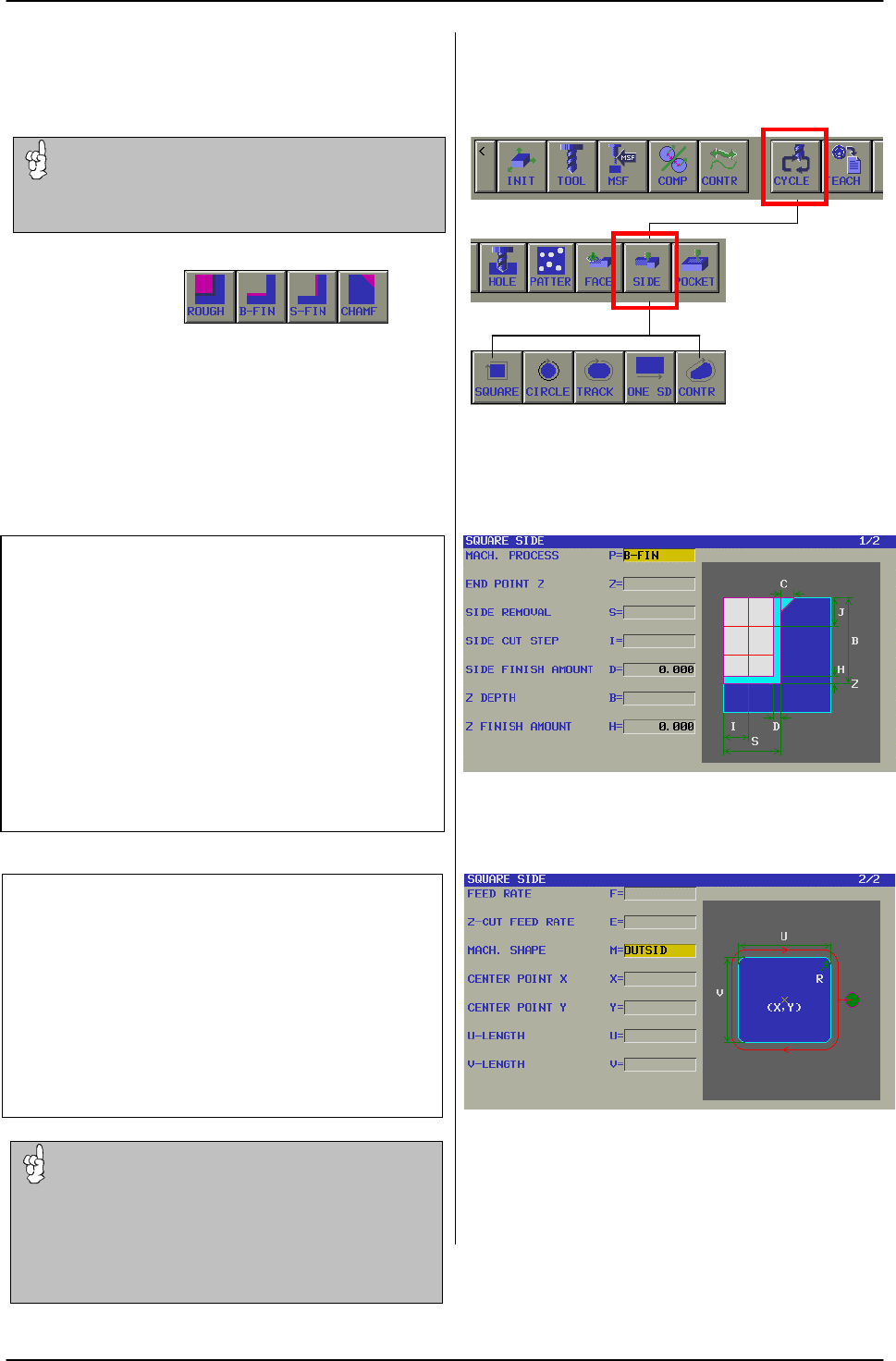

8. 3 Side Finish/Chamfer
8. 3. 1 Prepare Finish/Chamfer Menu
Select one of the MACH. PROCESS by Soft-Key
There are several additional processes available:
• B-FIN Bottom finish
• S-FIN Side finish
• CHAMF Chamfering
Select one of the additional process by pushing the
Soft-Key, e.g. ' B-FIN ', pop-up window is displayed:
1/2 Bottom Finish
MACH. PROCESS B-FIN is displayed
END POINT Z Input finish surface coordin. Z
SIDE REMOVAL Input the total side removal
amount
SIDE CUT STEP Input the side step amount
SIDE FINISH AMOUNT In case that also side finish
has to be performed, input this
amount, to keep away from
side wall.
Z-DEPTH Input the Z-Depth from Bottom
to Top of surface.
Z-FINISH AMOUNT Input the Z-Finish amount
2/2 Bottom Finish
FEED RATE The feed rate of the finishing
tool in XY direction.
Z CUT FEED RATE The feed rate of the finishing
tool in Z-direction.
MACH.SHAPE Select by Soft-Key Outside or
Inside machining.
CENTER POINT X X coordinate of square center.
CENTER POINT Y Y coordinate of square center.
U LENGTH Horizontal length of square.
V LENGTH Vertical length of square.
1/2 Bottom Finish
2/2 Bottom Finish
Important note
In case that 'B-FIN' or 'S-FIN', Finish or Chamfer is
necessary, make sure, that in ROUGHING process the
Side, Z-Finish or Chamfer amount is input.
Important note
This example shows the situation when the process for one
of the 'Finishing or Chamfer' process is new selected. In
case of using the 'Copy Function', 'Roughing' process can
be copied and the copy can be easy modified as 'Finishing
or Chamfering' process. In this case all input fields are
already filled with the necessary data. Please refer to
cha
p
ter
8. 1. 1 Usa
g
e of Co
py
Function
.
