Manual Guide M Operators manual Page 69

Operators manual
Manual Guide M Hole Pattern
GE Fanuc Automation S.A. - 68 -
GFKE-0046-EN/01

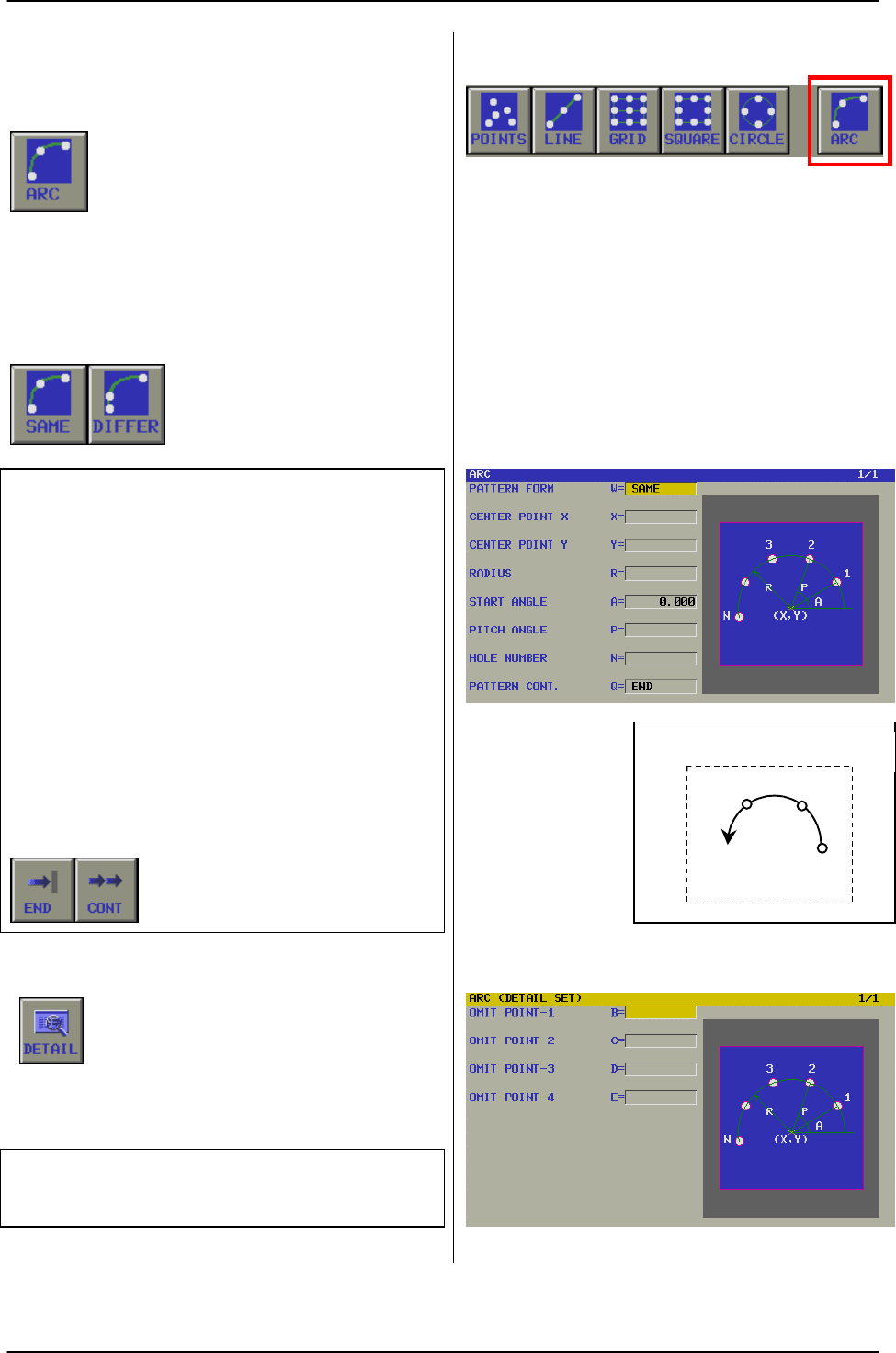

4. 1. 6 Arc (G205)
This is a menu for specifying the pattern of hole
positions at the same or different spaces on arbitrary
line.
By pushing [ARC], the following pop-up window is
displayed.
In case of pattern SAME, following input items are
available:
CENTER X and Y coordinate of the
center of the circle.
RADIUS The radius of the circle.
HOLES NUMBER The total No. of holes, including
the No. of omitted holes.
START ANGLE The angle between the
segment from the center of the
circle to starting point and the X
axis. It is considered to be 0, if
not input.
PITCH ANGLE The angle between segments
from the center of the circle to
each point.
HOLE NUMBER The total number of holes,
including the number of the
points omitted.
PATTERN CONT. Select whether to continue
entering another hole pattern
from the following Soft-Key
By pushing "DETAIL" Soft-Key
Following pop-up window is displayed:
OMIT POINT To designate the point to be omitted,
-1 / -2 / -3 / -4 input the hole sequence No.,
including its point.
Same Space
Omit maximal 4 points
Hole Machining Sequence
ARC
1
2
3
