Manual Guide M Operators manual Page 15

Operators manual
Manual Guide M Details of Menu
GE Fanuc Automation S.A. - 14 -
GFKE-0046-EN/01
2. 3 MSF Code Input
This Menu allows defining M-Code as Auxiliary
Function:
All available M-Codes displayed in the right side of
the pop-up menu.
S-Code, as Spindle speed
F-Code as Feed Function, e.g. Single Operation,
After pushing the soft-key "MSF",

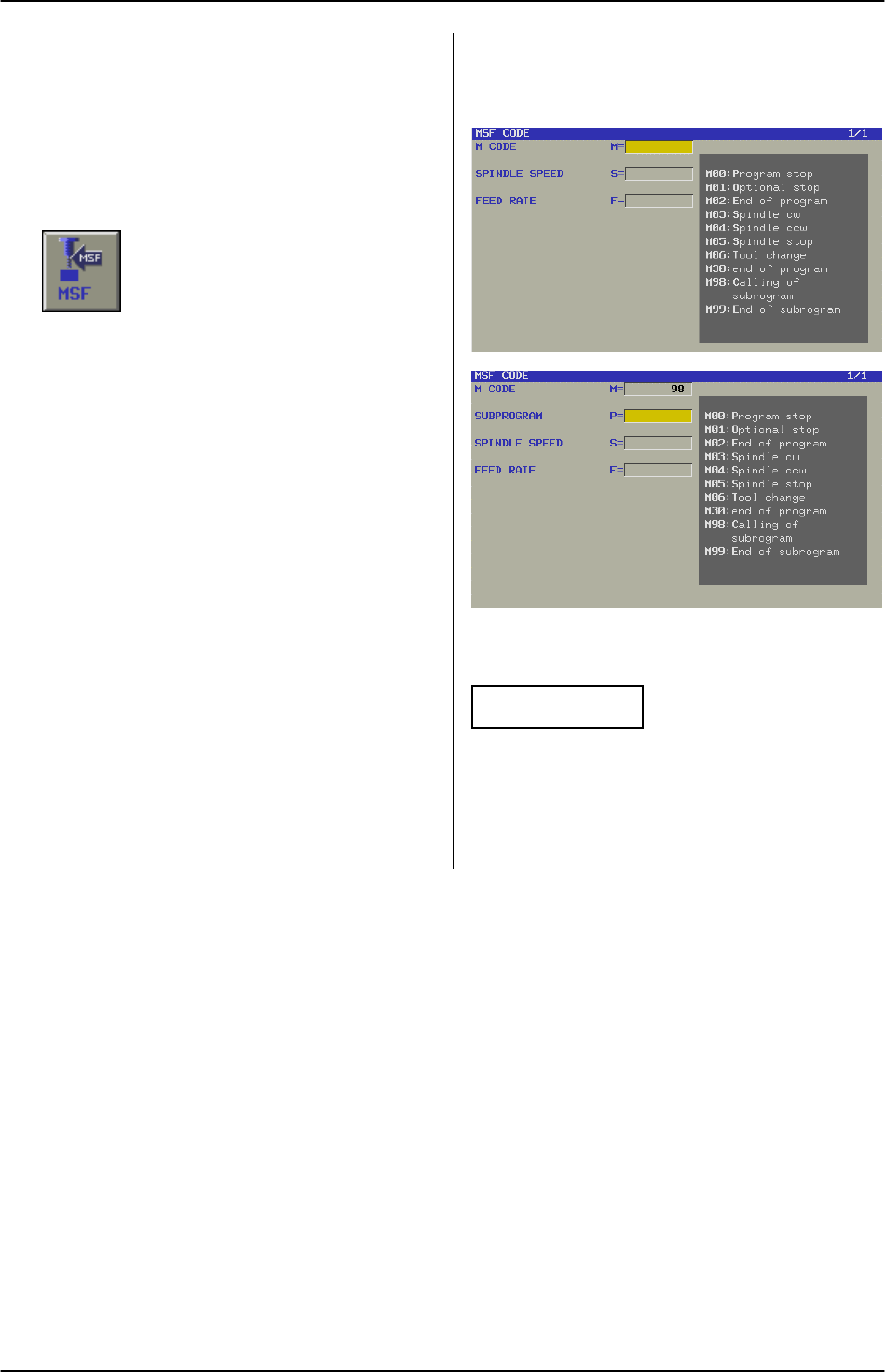

the following pop-up window is displayed:
In case of input "M98", which is Subprogram call,
additional input item
SUBPROGRAM P =
Is opened, to input necessary Subprogram No.
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
Data Input Pop-Up Menu
M3 S2500; Instruction of MS (F) code
In this menu is no "DETAIL" data window available.
Previous page
Next page
