Manual Guide M Operators manual Page 22

Operators manual
Manual Guide M Details of Menu
GE Fanuc Automation S.A. - 21 -
GFKE-0046-EN/01
2. 8. 1. 1 Example CONTOUR GROOVE
To cut the characters 'CONTOUR GROOVE' by
using end mill, following procedure is necessary.

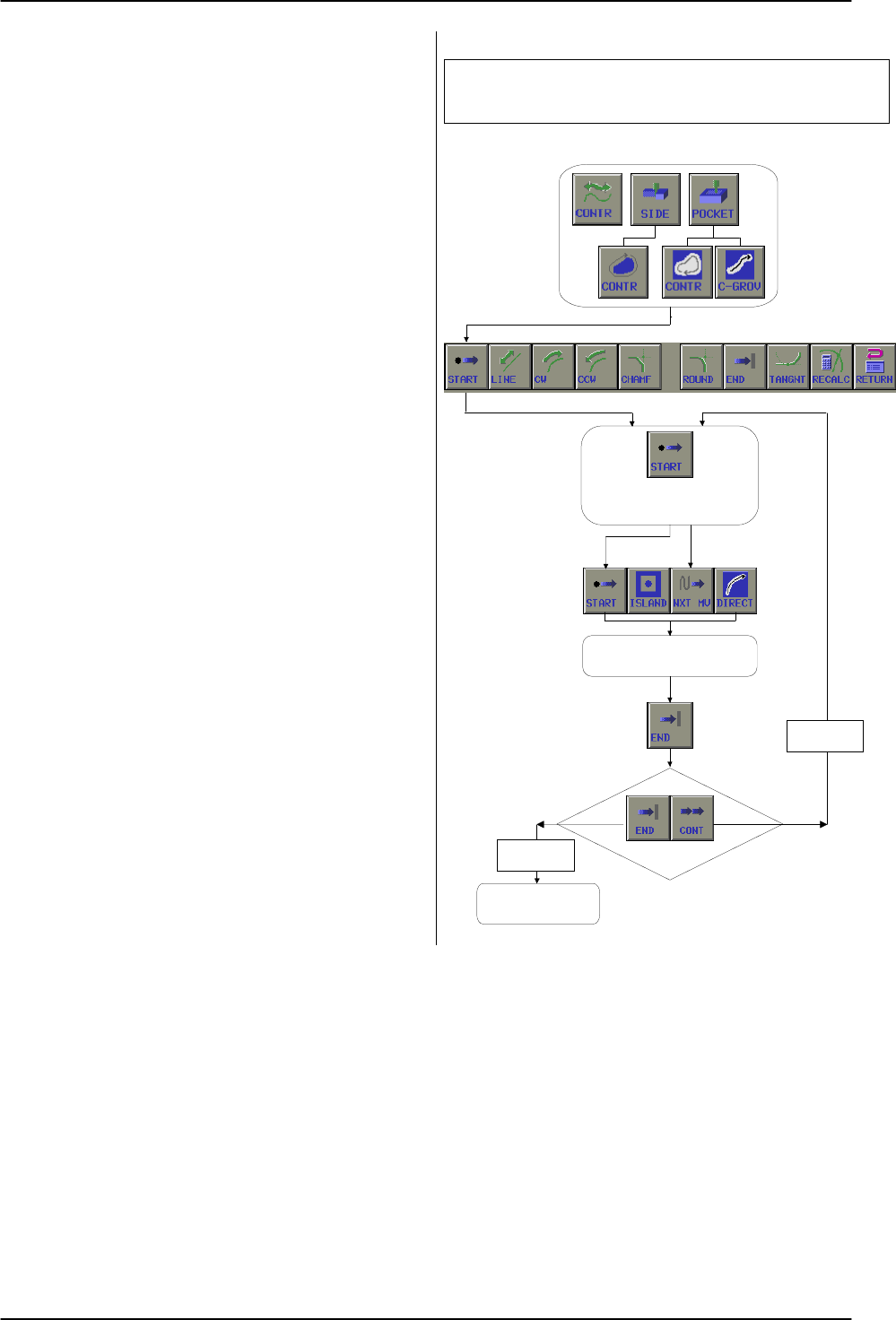

Please follow diagram on side.
1. After preparing data for
Tool menu
MSB menu and
COMP menu
2. Select POCKET menu and then
3. Select C-GROV menu.
4. Input data in C-GROV menu
5. Select START Soft-Key
6. Input data for XY start position
select start point type = START
7. Define character figure using symbol Soft-Keys
8. Select Soft-Key END
9. Select Soft-Key CONT
10. Select START Soft-Key
11. Input data for XY start position
select start point type = NXT MV
Input tool retract position, to move to next figure
12. Define character figure using symbol Soft-Keys
13. Select Soft-Key END
14. Select Soft-Key CONT
15. Repeat from No. 10 to 14,
until all character until 'E' are defined.
After the last character 'E' is defined
16. Select Soft-Key END
17. Select Soft-Key END,
to finish C-GROV menu completely.
Contour Figure Definition
START POINT XY
START POINT TYPE
SELECT
Next Operation
G106 P2
G106 P1
CONTOUR GROOVE
