Manual Guide M Operators manual Page 45

Operators manual
Manual Guide M Cycle Programming
GE Fanuc Automation S.A. - 44 -
GFKE-0046-EN/01

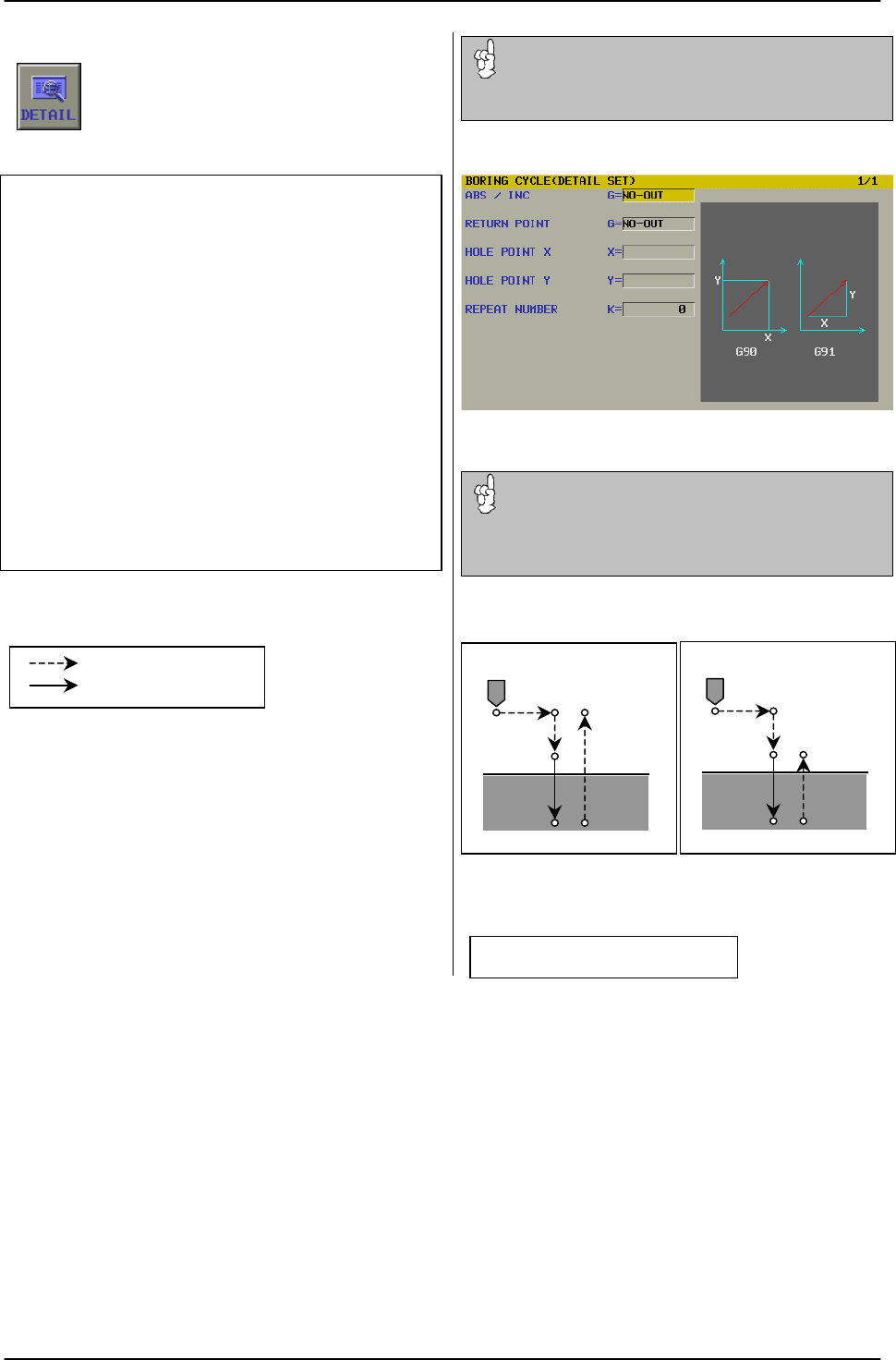

Important note
DETAIL SET screen - unnecessary to select. Usually
preset values are suitable as default.
By pushing "DETAIL" Soft-Key
Following pop-up window is displayed:
ABS/INC Specify travel ways from the
following soft-keys.
[G90ABS (absolute)],
[G91INC (incremental)],
[NO OUT] is pre set!
RETURN POINT Specify return point level
from the following soft-keys.
[I-LVL (G98)], [R-LVL (G99)],
[NO-OUT] is preset
HOLE POINT XY Hole position data. It is used in
the case of no using Hole Pattern
menu
REPEAT NO. Number of repeat. It is used in the
case of no using Hole Pattern menu
Movements
After positioning along the X and Y axes, rapid
traverse is performed to point R. Boring is performed
from point R to point Z.
The tool is then retracted in rapid traverse.
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
Return to Initial level Return to R-level
G86 (X_ Y_) Z_ R_ F_ (K_);
G86
(
G98
)
Initial
Point Z
Point R
P
G86 (G99)
Point R
Point Z
Point R level
P
Important note
NO-OUT
means, the modal data, like G90 or G91 will not
be changed. If G90 or G91 is selected, this selection will be
kept modal and must be changed back by new definition of
G90 or G91 !!!
Rapid traverse
Feed traverse
Previous page
Next page
