Linear Motor Lis Descriptions Page 205

Descriptions
B-65382EN/02 HANDLING, DESIGN, AND ASSEMBLY 3.ASSEMBLY
- 183 -

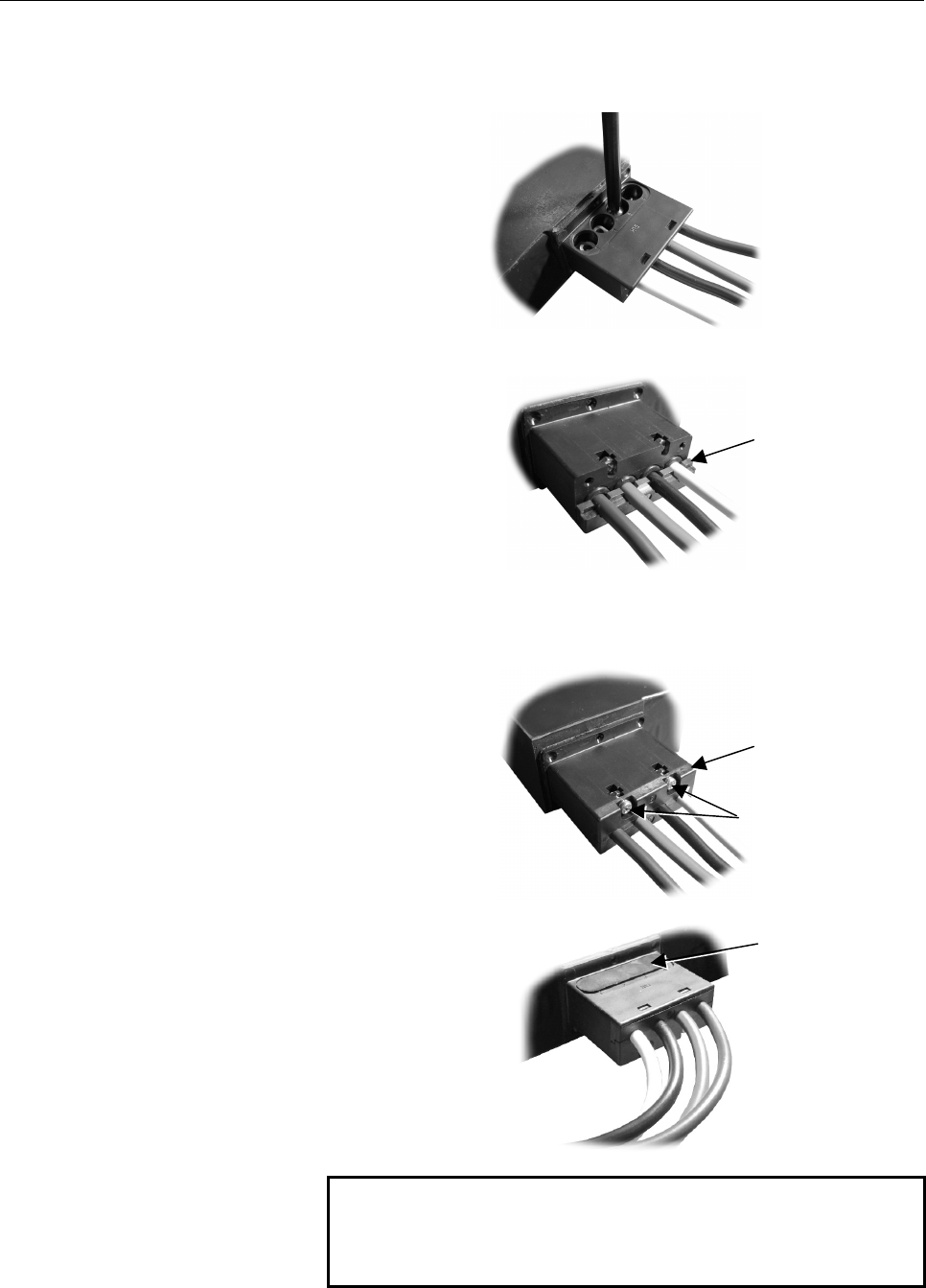

5 Use M4 screws to secure the four insulated cables that were
crimped. The recommended tightening torque is 1.3 to 1.4 Nm.
6 Attach cover A so that the claws of cover A engage with the
holes of the terminal.
7 Attach cover B with the convex portion of cover B aligned with
the concave portion of the terminal and then secure the cover
with M3 screws. The recommended tightening torque is 0.6 to
0.7 Nm.
8 Attach the cap to the terminal.
NOTE
One set of crimp contacts, gaskets, and other
components are supplied for each coil slider. Be
careful not to loose them.
Cover A
Cover B
M3 screws
Cap
