Linear Motor Lis Descriptions Page 53

Descriptions
B-65382EN/02 SPECIFICATIONS 2.SPECIFICATIONS
- 31 -

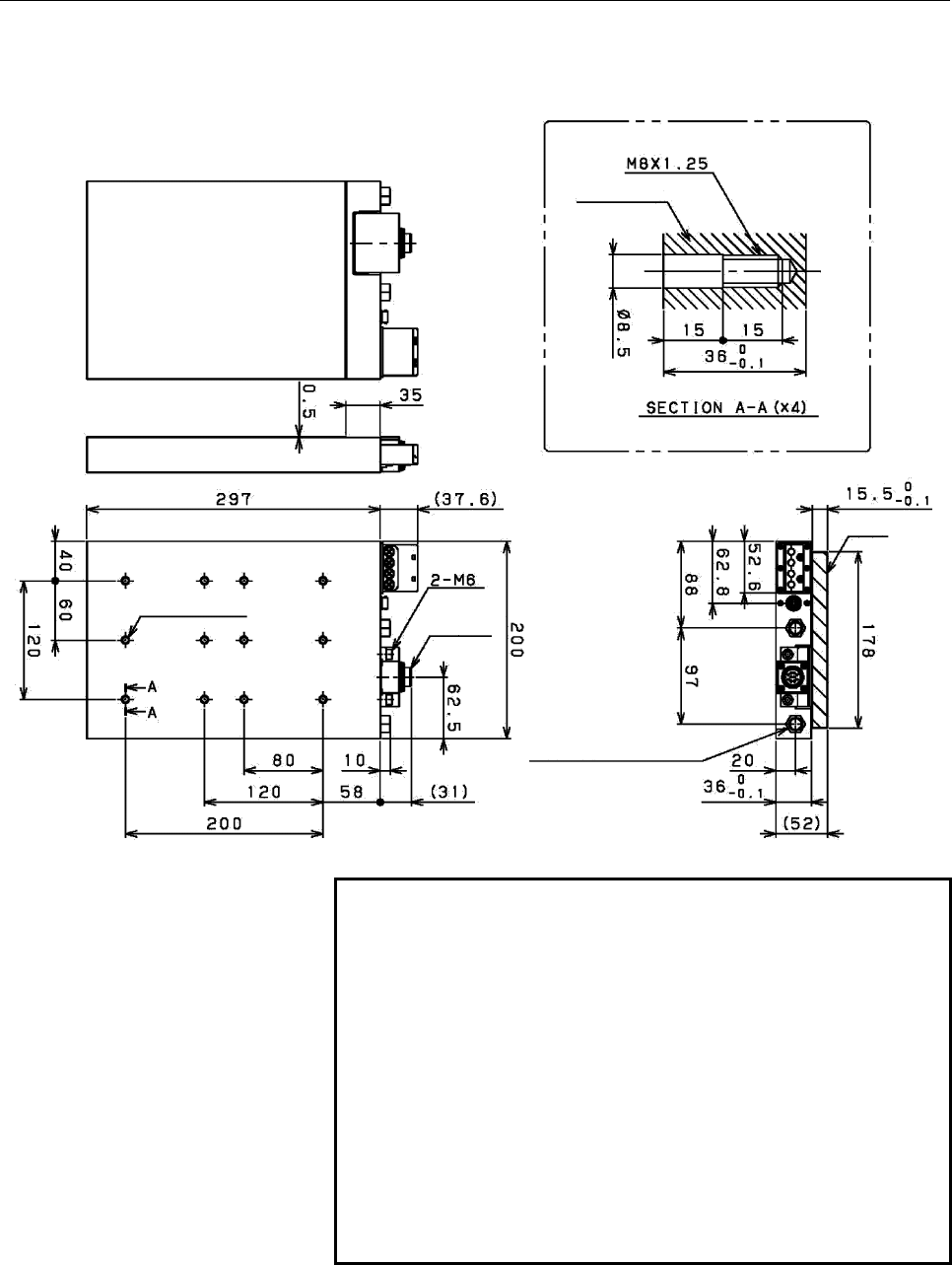

LiS 3000B2/2 (A06B-0445-B110#0000)
L
iS 3000B2/4 (A06B-0445-B210#0000)
COIL SLIDER
MAGNET PLAT
E
MAGNETIC
POLE
SENSOR
12-M8, DEPTH: 15
COOLING TUBE
Rc1/4 DEPTH 10
REGULAR HEXAGON
OUTSIDE SHAPE,
WIDTHS ACROSS
FLATS 17 mm
NOTE
1 To bring a corner of the coil slider into intimate
contact with a peripheral part, recess the corner of
the part by 0.2 to 0.3.
2 This slider contains a terminal for connecting power
lines and a connector for connecting a thermostat.
For details, see Part III, “HANDLING, DESIGN,
AND ASSEMBLY.”
3 This drawing contains a magnetic pole sensor.
When an absolute linear encoder is used, the
magnetic pole sensor is not required.
4 Always read and understand Part III, “HANDLING,
DESIGN, AND ASSEMBLY,” before handling or
installing the motor.
