1. Fanuc
  2. Linear Motor Lis

Linear Motor Lis Descriptions Page 58

Descriptions
2.SPECIFICATIONS SPECIFICATIONS B-65382EN/02
- 36 -

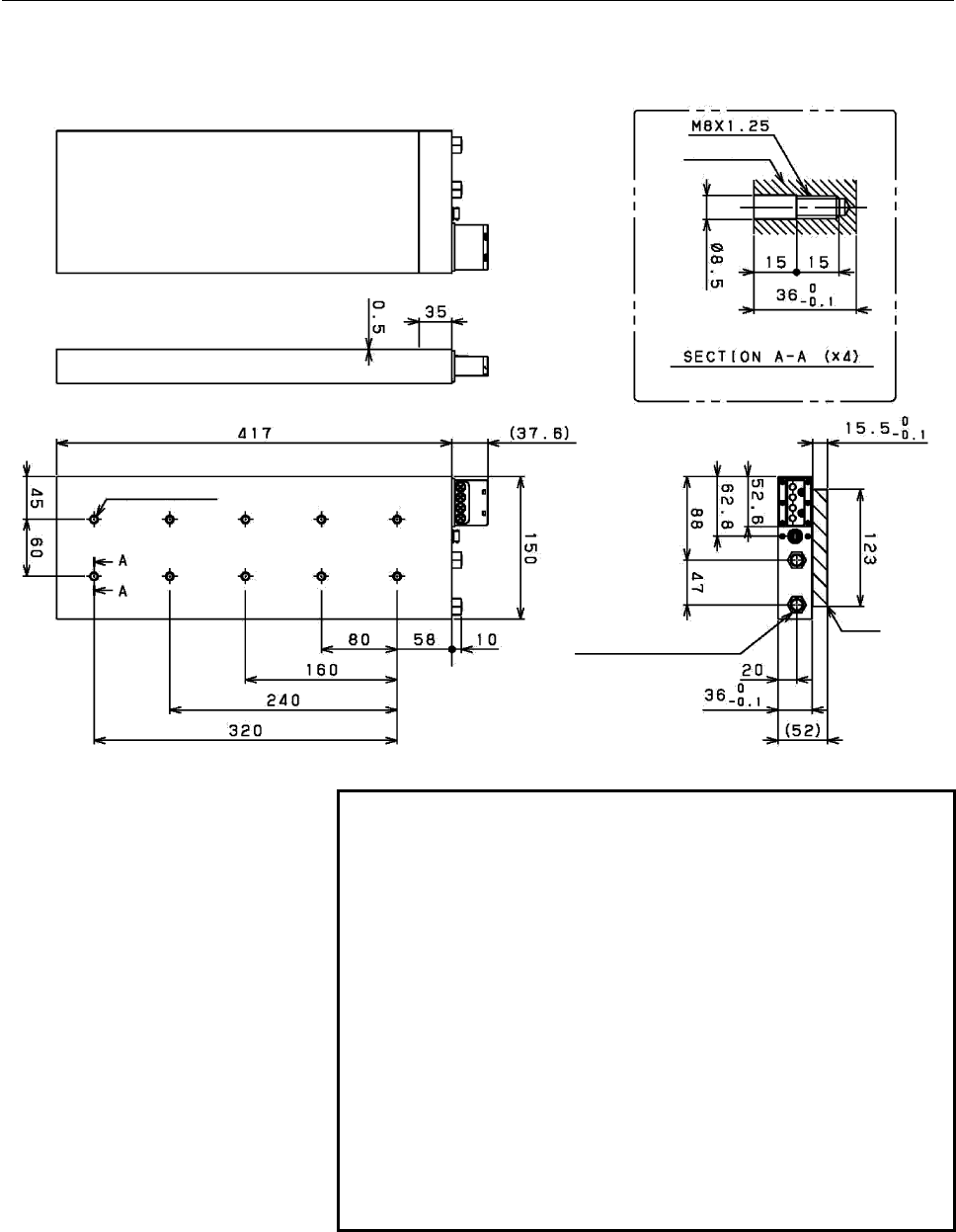

LiS 3300C1/2 (A06B-0451-B110#0000)
COIL SLIDER
MAGNET PLATE
10-M8, DEPTH: 15
COOLING TUBE
Rc1/4 DEPTH 10
REGULAR
HEXAGON
OUTSIDE
SHAPE, WIDTHS
ACROSS FLATS
17 mm
NOTE
1 To bring a corner of the coil slider into intimate
contact with a peripheral part, recess the corner of
the part by 0.2 to 0.3.
2 This slider contains a terminal for connecting power
lines and a connector for connecting a thermostat.
For details, see Part III, “HANDLING, DESIGN,
AND ASSEMBLY.”
3 This drawing contains no magnetic pole sensor. To
use an incremental linear encoder, a magnetic pole
sensor is required. For the outline drawings of
magnetic pole sensors, see the subsection
“Magnetic Pole Sensor” below.
4 Always read and understand Part III, “HANDLING,
DESIGN, AND ASSEMBLY,” before handling or
installing the motor.
Previous page
Next page
