B-65382EN/02 SPECIFICATIONS 2.SPECIFICATIONS
- 47 -

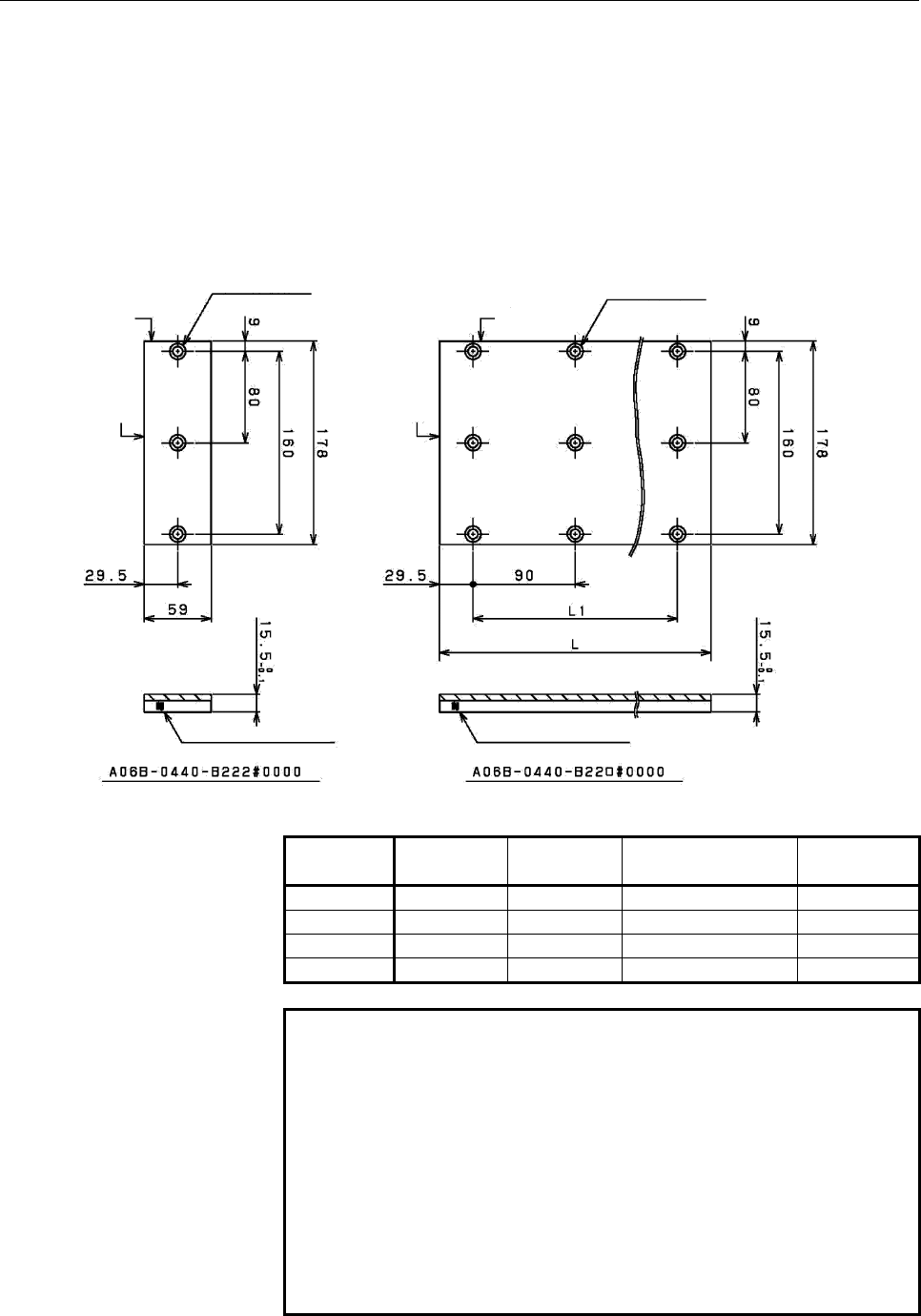

For LiS 3000B2, LiS 4500B2, LiS 6000B, LiS 7500B2, and LiS 9000B2
(Magnet plate B2)
A06B-0440-B222#0000 (Length 60mm)
A06B-0440-B224#0000 (Length 240mm)
A06B-0440-B225#0000 (Length 420mm)
A06B-0440-B227#0000 (Length 600mm)
A06B-0440-B228#0000 (Length 960mm)
DATUM
PLANE
MARKING "N" (ONLY ON INDICATED SIDE)
3 - 8.5-DIA THROUGH
14-DIA COUNTERBORE, DEPTH: 9
DATUM
PLANE
DATUM
PLANE
DATUM
PLANE
A
- 8.5-DIA THROUGH
14-DIA COUNTERBORE, DEPTH: 9
MARKING "N" (ONLY ON INDICATED SIDE)
MASS : 1.1Kg
(EQUIDISTANT
PITCH)
Length:
L(mm)
Length:
L1(mm)
Number of through
holes: A (places)
Mass (kg)
B224 239 180 9 4.5
B225 419 360 15 8
B227 599 540 21 11.5
B228 959 900 33 18
NOTE
These magnet plates are dedicated to the
LiS 3000B2/2, LiS 3000B2/4, LiS 4500B2/2HV,
L
iS 4500B2/2, LiS 6000B2/2HV, LiS 6000B2/2,
LiS 6000B2/4, LiS 7500B2/2HV, LiS 7500B2/2,
LiS 9000B2/2, and LiS 9000B2/4. They cannot be
used for other models. Use the above five types of
magnet plates in combination according to the required
axis length (track length).
