Linear Motor Lis Descriptions Page 91

Descriptions
B-65382EN/02 SPECIFICATIONS 2.SPECIFICATIONS
- 69 -

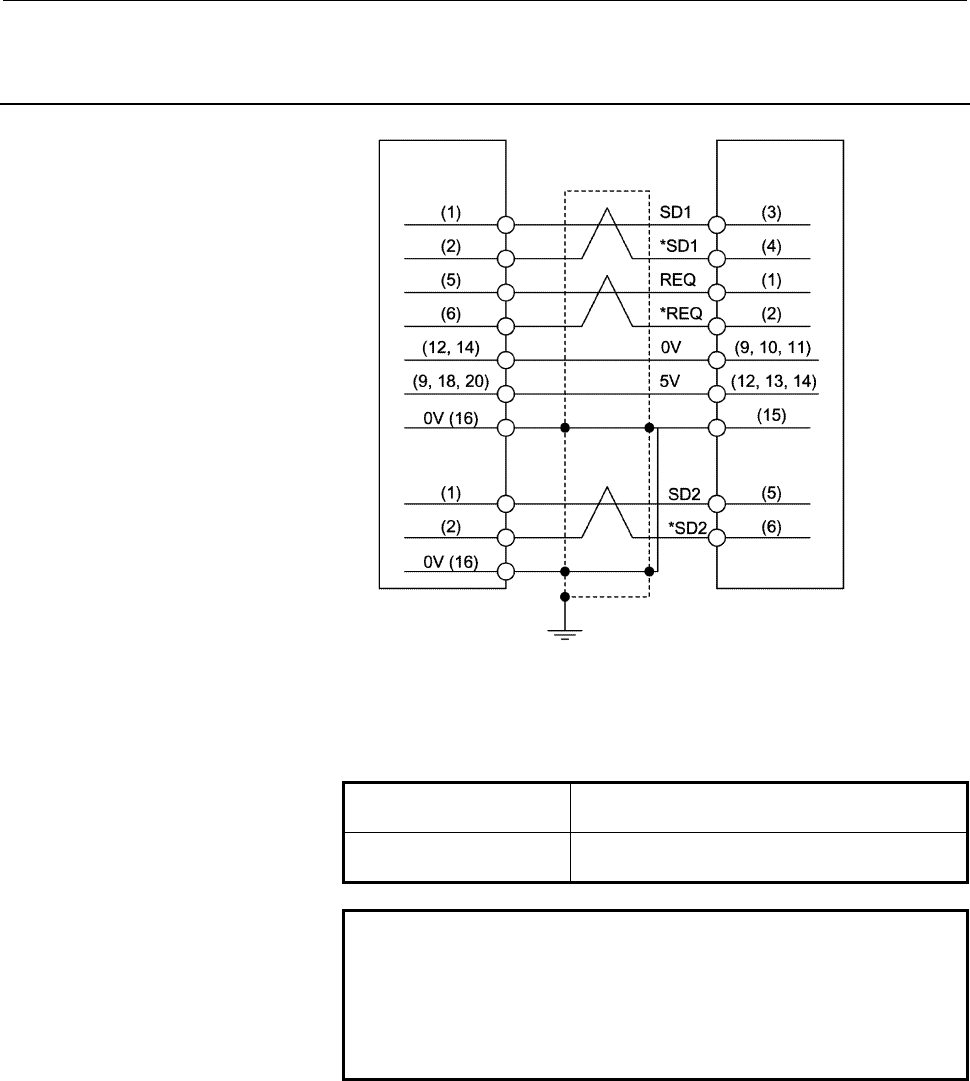

2.5.3 Cable K2 (for Position Detection Circuit A860-0333-T202 or
-T302)
Connector: RM21WTP-15S-(8)
Manufacturer: Hirose Electric Co., Ltd.
Servo amplifier
Position detection
circuit
Connector: FI40-2015S
Connector cover: FI-20-CV
Manufacturer: Hirose Electric Co., Ltd.
A
xis (2N+1)
(DSP N+1)
N: Natural number
Grounding plate
Shield
Drain wire
Drain wire
Used wires
0V, 5V Nominal cross section:0.5mm
2
, at least three
wires each
SD1, *SD1, SD2, *SD2,
REQ, *REQ
Nominal cross section:0.18mm
2
, twisted pair
NOTE
SD2 and *SD2 are output to another driver with the
same logic signals as for SD1 and *SD1. In
ordinary cases, SD1 and *SD1 are connected to an
axis having an odd number of a DSP different from
that for SD2 and *SD2.
